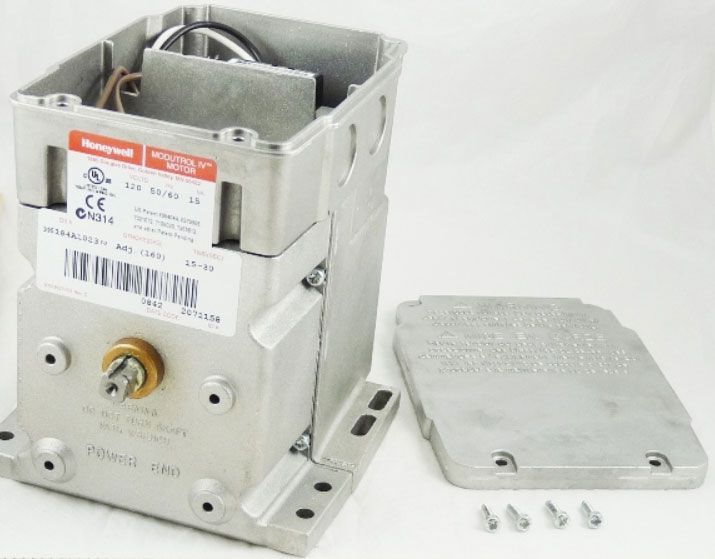

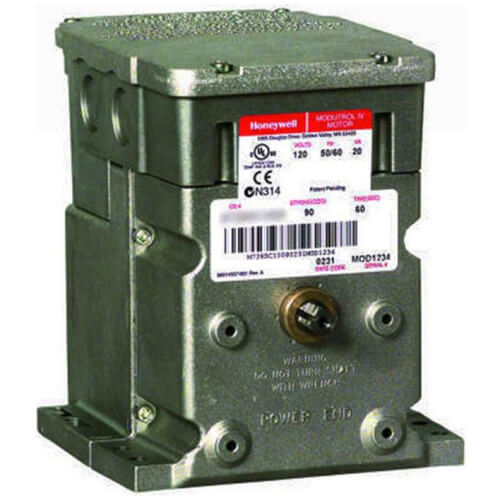

Honeywell M6294D1008-S Non-Spring Return Modutrol IV Slave Motor - Replacement M6294D1008-S

Product Description

The Honeywell M6294D1008-S is a Modutrol IV, non-spring return, slave motor designed primarily for HVAC applications. Boasting a robust 300 lb-in torque and operating on 24 volts, this foot-mounted motor offers floating control with feedback, ensuring high precision in air flow control within complex systems.

• 300 lb-in torque for powerful performance.
• Adjustable timing between 120 and 240 seconds to adapt to various system demands.
• Compatible with controllers providing a switched SPDT or floating output.

Product Highlights

This motor features an integral junction box for NEMA 3 weather protection, ensuring functionality in various climate conditions, and dual-ended shafts that accommodate a variety of installation scenarios. It's specifically optimized to work in setups requiring non-linear feedback for accurate position reporting.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M6294D1008-S

Technical Specifications

• Motor Type: Non-Spring Return, Floating Control
• Power Supply: 24 Volts, 50/60 Hz
• Torque: 300 lb-in
• Feedback Mechanism: Electrical Isolation Feedback Potentiometer
• Control Signal: Dual ended Shaft Control
• Mounting: Foot-mounted
• Adjustable Stroke: 90 to 160 degrees, Asymmetrical
