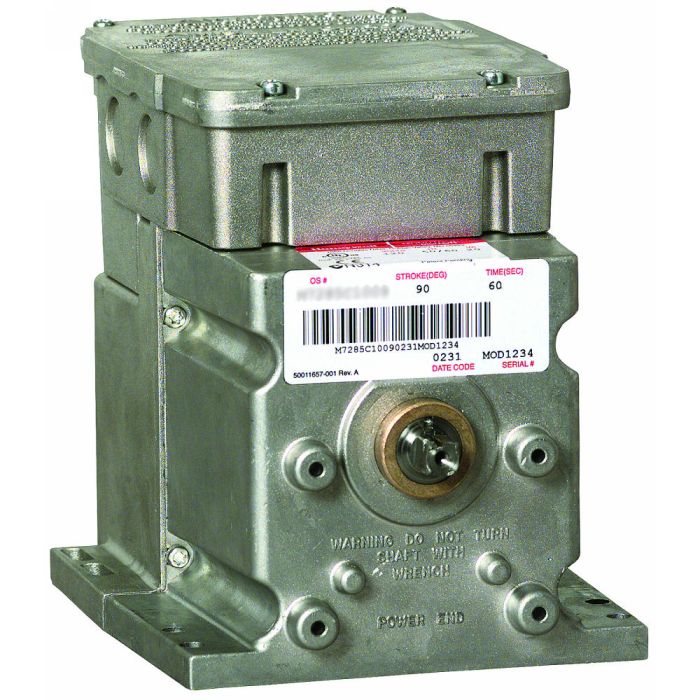

Honeywell M6285A1005-S/U Modutrol IV Motor Spring Return

Product Description

The Honeywell M6285A1005-S/U is a Modutrol IV Motor designed for use in HVAC systems. Featuring a torque rating of sixty inch-pounds, it operates on twenty-four volts with twenty volt-amperes of power. This motor is ideal for applications requiring floating control and non-linear feedback in slaving setups.

• Integral junction box for NEMA 3 weather protection when mounted upright.
• Field adjustable stroke range from ninety to one hundred sixty degrees.
• Quick-connect terminals provide ease of installation.

Product Highlights

This motor supports either normally open or normally closed configurations. It has a dual shaft that is slotted and tapped on both ends, ensuring compatibility with various setups.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M6285A1005-S/U

Technical Specifications

• Torque Rating: 60 in-lb
• Power Consumption: 20 VA
• Operating Conditions: -40 F to 150 F (-40 C to 60 C)
• Electrical Connections: Quick-Connect terminals
• Housing: NEMA 3
• Stroke Adjustment: 90 to 160 degrees
• Auxiliary Switches: Available factory mounted or field added
• Style: Dampers and Damper Actuators
