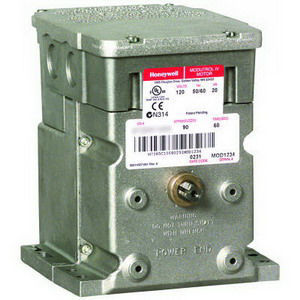

HONEYWELL M6284D1026-S Electric Actuator 150 Inch-lb 24V Non-Spring Return

Product Description

Honeywell M6284D1026-S is a high-performance electric actuator designed for precision control in HVAC systems. This model operates with a 24V power supply and features a non-spring return mechanism. Ideal for use with both valves and dampers, it provides reliable operation and a torque output of 150 inch-lb.

• Efficient 30 to 60 second timing for rapid response
• Adjustable stroke from 90 to 160 degrees for versatile operation
• Dual-ended shaft for flexible installation options

Product Highlights

The actuator features quick connect terminals for easy installation and a built-in junction box for NEMA 3 weather protection, ensuring durability in various environmental conditions. Its robust design is suitable for industrial settings, capable of withstanding extreme temperatures from -40 to 150 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M6284D1026-S

Technical Specifications

• Series: M6284D
• Stroke: Adjustable, 90 - 160 deg, Symmetrical
• Timing: 30 - 60 sec
• Dimensions: 6-7/16 Inch H x 5-1/2 Inch W x 7-5/16 Inch D
• Motor Type: Dual Ended Shaft
• Shaft Size: 3/8 x 3/8 Inch
• Torque Rating: 150 Inch-lb
• Control Signal: Floating
• Fail Safe Mode: Non-Spring Return
• Voltage Rating: 24 V
• Power Consumption: 15 VA Driving
• Electrical Connection: Quick Connect Terminals
