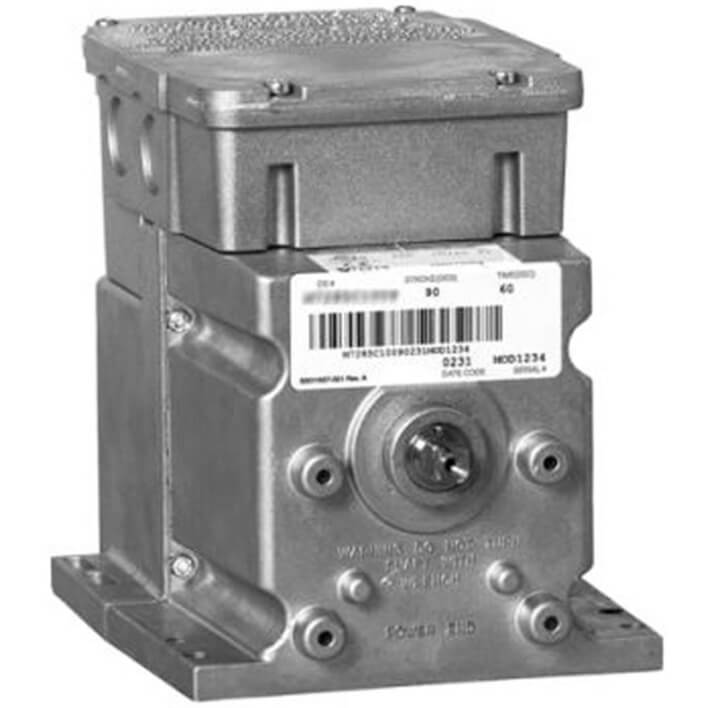

Honeywell M6194E1006 24v Actuator Floating Control 300 Lb Torque

Product Description

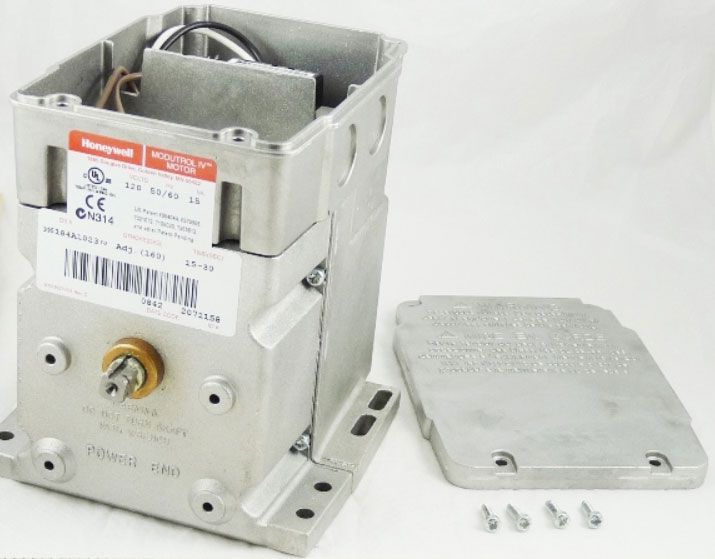

The Honeywell M6194E1006 is a 24-volt non-spring return Modutrol IV motor. It features a torque output of 300 lb-in and operates with a floating control signal. This motor is designed for dampers and valves in various industrial and commercial applications.

• 24V Non-Spring Return Motor
• 300 lb-in Torque Output
• Foot-Mounted Installation

Product Highlights

This motor includes an auxiliary switch and features an adjustable stroke range. It's suitable for controllers providing SPDT or floating output. The motor is robustly constructed for long-lasting performance.

Product Information

Standard Information

• Brand: Honeywell
• Model: ML9194E

Technical Specifications

• Voltage: 24V
• Torque: 300 lb-in
• Fail Safe Mode: Non-Spring Return
• Control Signal: Floating
• Mounting Type: Foot-mounted
• Stroke: Adjustable 90 to 160 degrees
• Auxiliary Switch: Integral, factory mounted
• Dimensions: 6 7/16 in. high, 5 1/2 in. wide, 8 3/4 in. deep
• Weight: 7.5 lb
• Temperature Range: -40°F to 150°F
• Shaft Dimensions: 0.375 in
• Motor Shaft: Dual ended, slotted and tapped
• Auxiliary Switch Ratings: 7.2A at 120 Vac, 3.6A at 240 Vac
