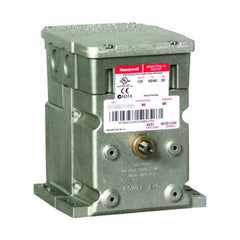

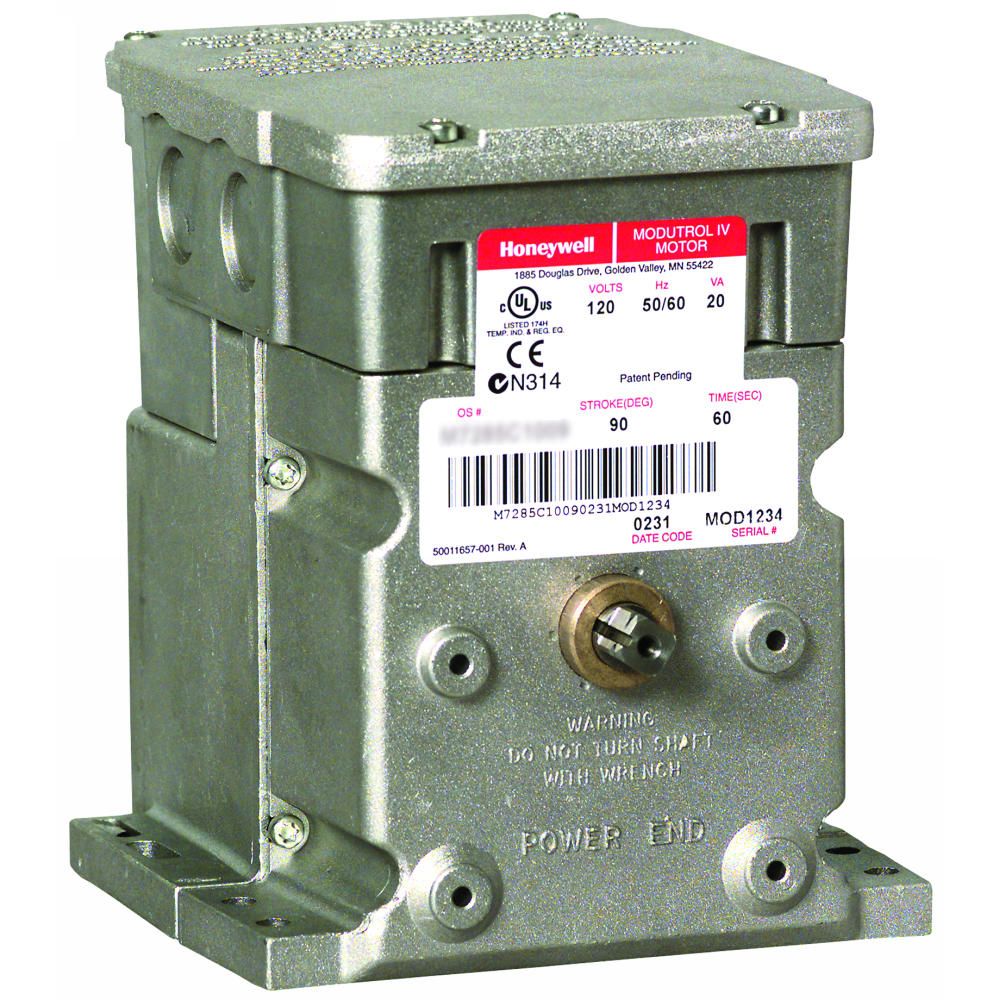

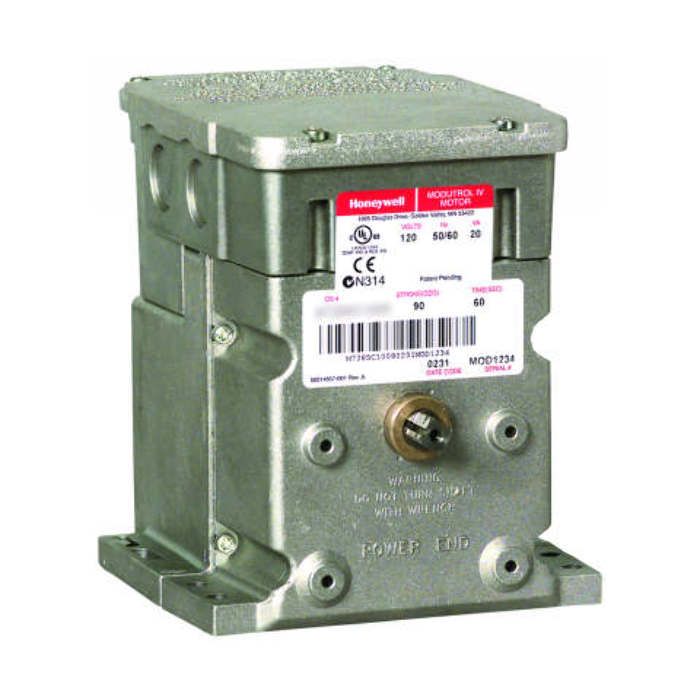

Honeywell M6194D1017/U Modutrol IV Motor Non-Spring Return 300 in-lb 24V 15 VA

Product Description

The HONEYWELL M6194D1017/U Modutrol IV Motor is a non-spring return actuator designed for damper and valve applications, featuring a 300 in-lb torque rating and floating control. Operating on 24 VAC with a 15 VA power consumption, this motor offers a rotational stroke adjustable from 90 to 160 degrees. It is rated NEMA 3 for weather protection and connects via quick-connect terminals, suitable for commercial building controls.

• Integral junction box provides NEMA 3 weather protection when mounted upright.
• Designed for use with normally open or normally closed valves and dampers.
• Operates from 24 VAC, featuring quick-connect terminals for electrical connections.

Product Highlights

Features a non-spring return fail-safe mode, NEMA 3 housing, and maintains fixed torque across its voltage range.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: M6194D1017/U

Technical Specifications

• NEMA Rating: NEMA 3
• Power Consumption: 15 VA
• Operating Temperature Range: -40°F to 150°F (-40°C to 66°C)
• Electrical Connection: Quick Connect Terminals
• Category: Commercial Building Controls
• Product Type: Dampers and Damper Actuators
• Torque Rating: 300 in-lb
• Input Voltage: 24 VAC
• Control Signal: Floating
• Max Shaft Load: 200 lb (90.8 kg)
• Max Combined Load: 300 lb (136 kg)
• Max Operating Temperature: 150°F (66°C) @ 25% duty cycle
• Shaft Type: 3/8" (0.95 cm) square, dual-ended
• Certifications: UL listed, CSA, CE Guide #400-E
• Series: M61
• Family Series: Honeywell Dampers, M61 Series
• Nominal Timing: 120-240 s
• Rotational Stroke: 90-160 Degrees (Adjustable, Factory Set to 160)
• Fail-Safe Mode: Non-Spring Return
• Feedback: None
• Mounting Type: Foot Mounted - Dual Ended Shaft
• Shaft Rotation: By Wiring
• Internal Auxiliary Switches: 0
