Product Description

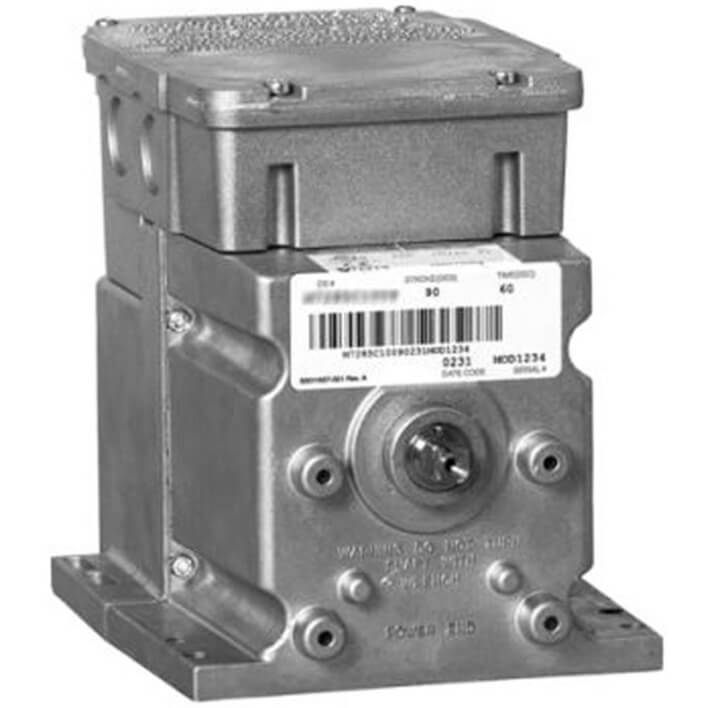

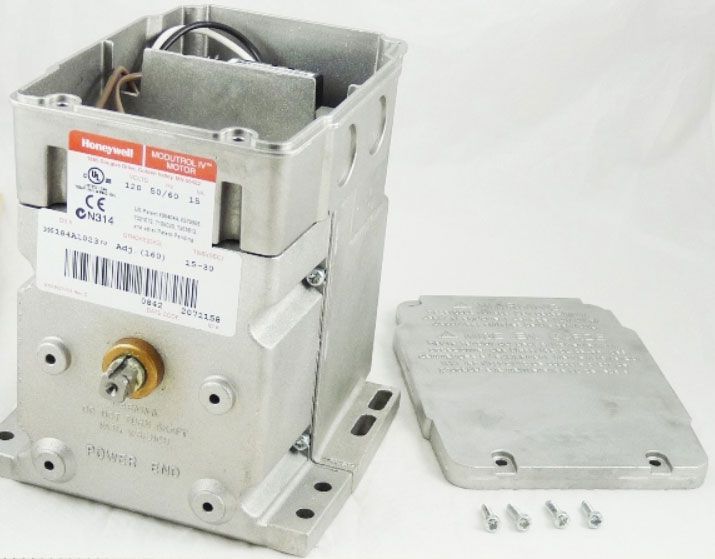

The Honeywell M6184D1068 is a non-spring return Modutrol IV motor operating at twenty-four volts. This actuator is designed for foot mounting and can deliver up to 150 lb-in of torque. It features a timing standard of 120 to 240 seconds.
- Foot-mounted design for ease of installation
- Integrated junction box provides NEMA 3 weather protection
- Field adjustable stroke ranging from ninety to one hundred sixty degrees
Product Highlights
This motor is suitable for use in HVAC applications to control dampers and valves with a floating control signal.
Product Information
Standard Information
-
Brand: Honeywell
-
Model: ML6184D
Technical Specifications
-
MPN: M6184D1068
-
Weight: 6.50 lbs
-
Voltage: 24V AC
-
Torque: 150 lb-in
-
Temperature Range: -40 to 150 degrees Fahrenheit
-
Stroke: Adjustable 90 to 160 degrees
-
Control Signal: Floating
-
Auxiliary Switches: Available
