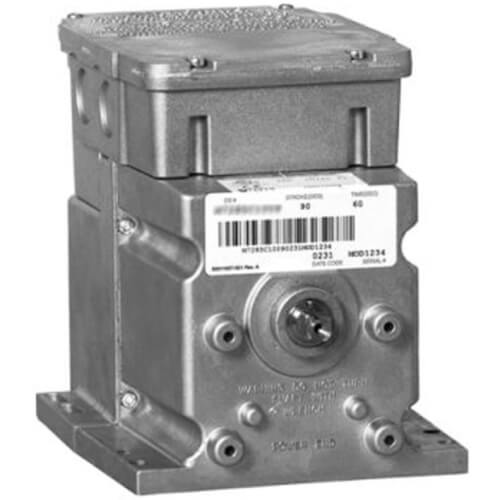

Honeywell M4185E4006 Modutrol IV Motor, w/ 1 Internal Auxiliary Switch (24/120/230V)

Product Description

The Honeywell M4185E4006 is a Modutrol IV Motor designed for HVAC applications. This device is a two-position spring-return motor that operates dampers and valves. It ensures the controlled element returns to the starting position during power failure. This motor is suitable for both line and low voltage and can handle multiple voltage settings, including twenty-four, one hundred twenty, and two hundred thirty volts.

• Torque rating of sixty lb-in.
• Field adjustable stroke from ninety to one hundred sixty degrees.
• Integral spring return for fail-safe operation.

Product Highlights

This motor features a robust design suitable for various HVAC applications. It effectively manages dampers and valves, ensuring operational reliability and efficiency. Quick-connect terminals make installation simple.

Product Information

Standard Information

• Application Type: Electric
• Fail Safe Mode: Spring Return

Technical Specifications

• Control Signal: Two Position, SPST
• Motor Shaft: Dual Ended Shaft
• Stroke: Adjustable from ninety to one hundred sixty degrees
• Torque Rating: 60 lb-in
• Electrical Connections: Quick Connect Terminals
• Dimensions: Six and seven sixteenths inches high x five and one half inches wide x eight and three quarter inches deep
• Temperature Range: -40 to 150F
• Includes: Transformer
