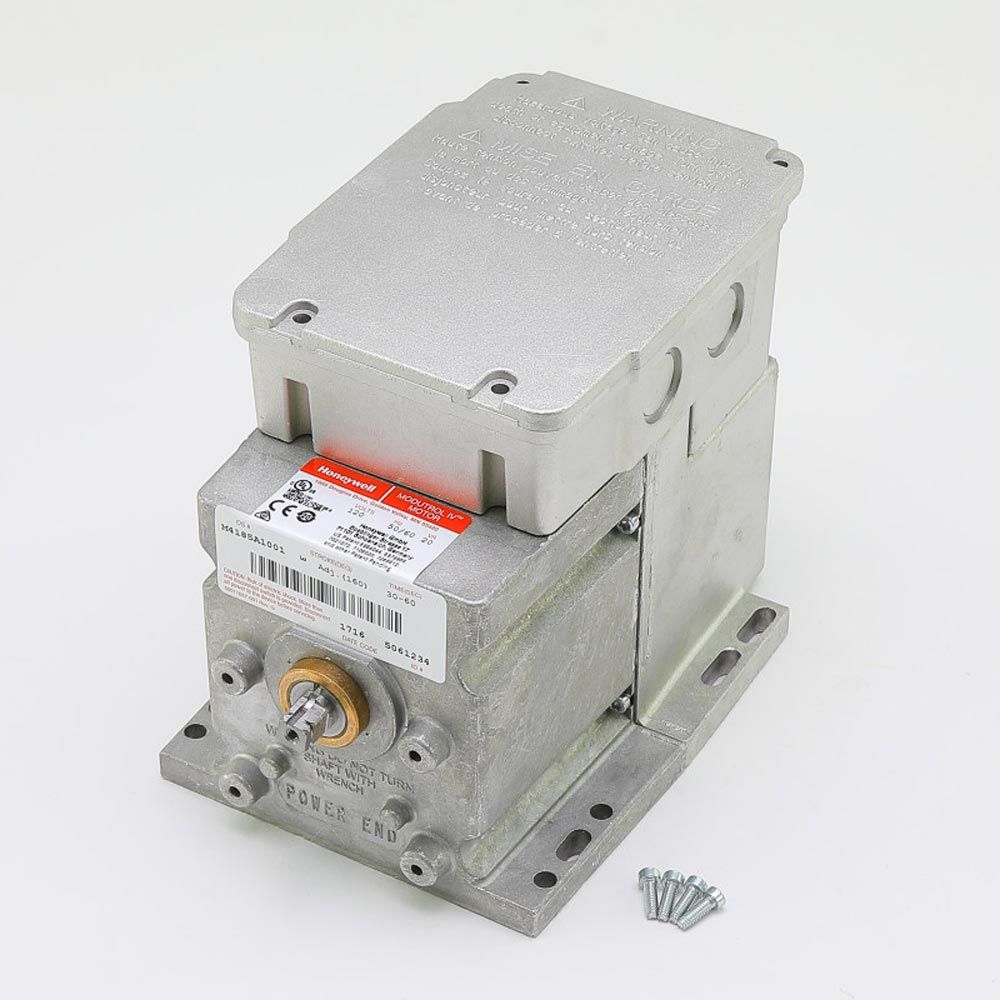

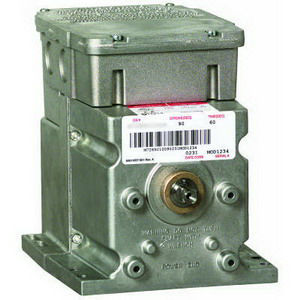

Honeywell M4185A1001 Modutrol IV 41 Foot Mount Line Voltage Damper Motor 120 V

Product Description

The Honeywell Modutrol IV M4185A1001 is a foot-mount line voltage damper motor designed for efficient control of dampers and valves. This motor operates on a voltage rating of one hundred twenty volts and is equipped with a two-position SPST control signal. Its spring-return feature ensures reliable operation in the event of power interruption.

• Control Signal: 2-Position SPST
• Stroke Range: 90 - 160 degrees
• Torque Rating: 60 Inch-lb

Product Highlights

This damper motor supports applications requiring controlled movement and return functionality. It features a die-cast aluminum construction for durability and is suitable for various HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: M4185A1001

Technical Specifications

• Type: Foot Mount, Line Voltage
• Torque Rating: 60 Inch-lb
• Timing: 30 - 60 seconds
• Material: Die Cast Aluminum
• Dimensions: 6-7/16 Inch H x 5-1/2 Inch W x 8-3/4 Inch D
• Motor Type: Dual Ended Square Shaft
• Shaft Size: 10 x 10 mm
• Voltage Rating: 120 V, 50/60 Hz
• Power Consumption: 20 VA
• Electrical Connection: Quick Connect
• Fail Safe Mode: Spring Return
• Rotation Angle: CW
