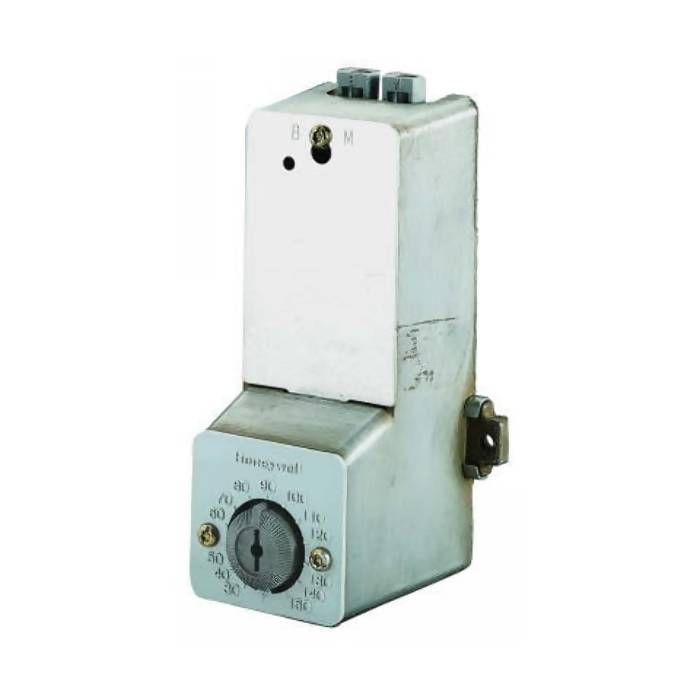

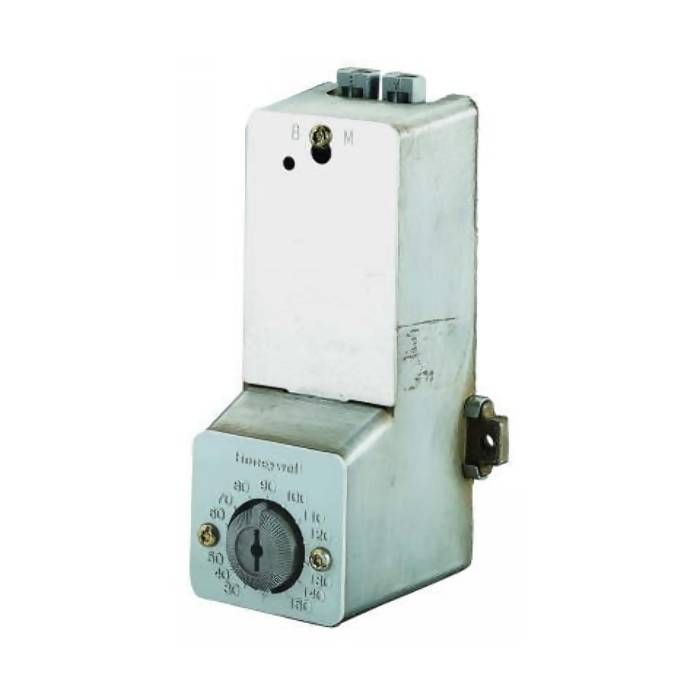

Honeywell LP920A1021/U pneumatic temperature controller direct acting 2-pipe 3/8 x 5-1/4 inch bulb 10 inch capillary 30 F to 150 F

Product Description

The HONEYWELL LP920A1021/U is a direct acting pneumatic temperature controller designed for proportional control of pneumatic valves and damper actuators in HVAC systems. It features a remote bulb sensor with a 30 F to 150 F scale range and operates with 2 pipes. The unit includes a 3/8 in. x 5-1/4 in. bulb with a 10 in. capillary and an integral duct mount for sensing air or liquid temperature.

• Fahrenheit or Celsius scales for all adjustments
• Pilot operated for high capacity
• Adjustable setpoint and throttling ranges

Product Highlights

Direct acting pneumatic temperature controller with remote bulb sensor, 30 F to 150 F scale range, and integral duct mount for HVAC applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: LP920A1021/U

Technical Specifications

• Action: Direct Acting
• Sensor Type: Remote Bulb Sensor
• Temperature Range: 30 F To 150 F
• Number of Pipes: 2
• Bulb Details: 3/8 in. x 5-1/4 in. Bulb With 10 in. Capillary
• Mounting Type: Integral Duct Mount
• Application: Remote Bulb Temperature
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Maximum Safe Operating Pressure (psi): 30 psi
• Element Temperature Range (F): 230 F
• Controller Temperature Range (F): 150 F
• Comments: Scale plate is reversible for F and C applications
• Throttling Range (F): Factory set at 10 F with adjustment range of 5 to 25 F
• Category: Commercial Building Controls
• Product: Pneumatic Products
• Style: Pneumatic Products
