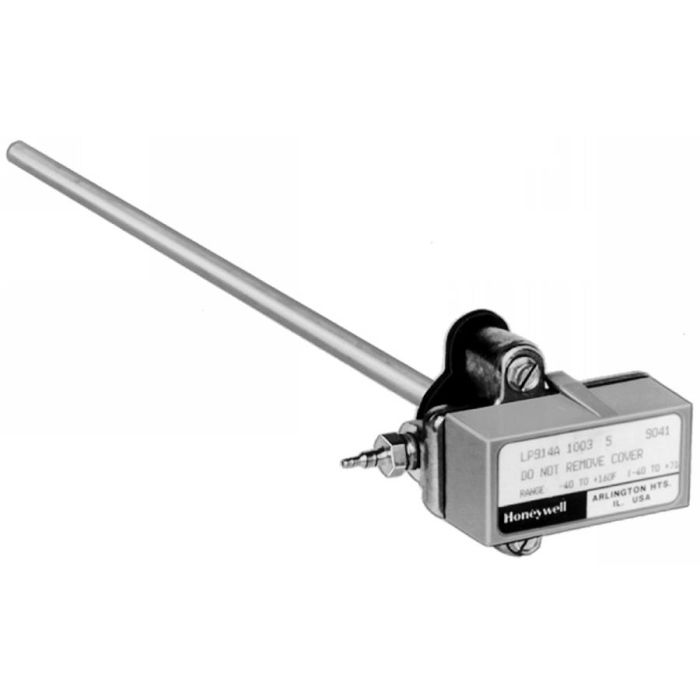

Honeywell LP914A1268/U Pneumatic Temperature Sensor

Product Description

The Honeywell LP914A1268/U is a pneumatic temperature sensor designed for use in commercial building controls. This device features a duct or well mount design with a rod and tube element that measures temperature in a range from forty to two hundred forty degrees Fahrenheit. It utilizes a one-pipe configuration to connect easily with RP908 and RP920 controllers for precise control of pneumatic valve or damper actuators.

• Rod and tube sensor element for accurate temperature readings
• Corrosion resistant for durability
• Continuous temperature indication available using a receiver gauge

Product Highlights

The LP914A1268/U provides reliable temperature measurement for HVAC systems, assisting in the efficient operation of heating and cooling processes.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: LP914A1268/U

Technical Specifications

• Application: Temperature Sensor
• Airflow Usage: 0.019 scfm (540 sccm)
• Connections: Push-on barb for five thirty-second inch and one quarter inch O.D. tubing
• Body Dimensions: two inches high x two and a half inches wide
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Mounting: Duct or well
• Operating Temperature Range: up to 265 degrees Fahrenheit (129 degrees Celsius)
• Insertion Length: fifteen inches (381 mm)
• Pressure Ratings: Output—3 psi to 15 psi; Supply—18 psi
• Action: Direct Acting
• Sensor Range: 40 degrees Fahrenheit to 240 degrees Fahrenheit (5 degrees Celsius to 115 degrees Celsius)
• Number of Pipes: 1
