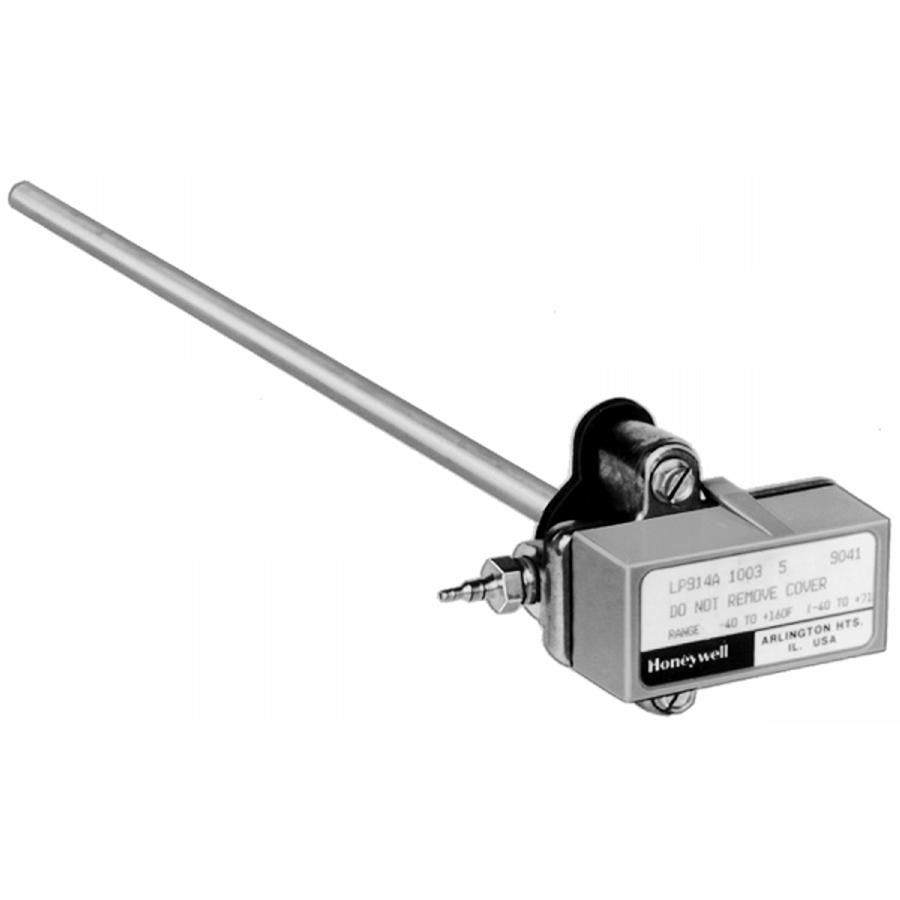

Honeywell LP914A1045/U Pneumatic Temperature Sensor

Product Description

The Honeywell LP914A1045/U is a pneumatic temperature sensor designed for precise temperature measurement in commercial HVAC applications. It features a duct mount and incorporates a rod and tube sensor element, measuring seven inches in length, with a direct acting output range of three to fifteen psi.

• Corrosion resistant materials for enhanced durability.
• Continuous temperature indication available with a receiver gauge.
• Direct acting for effective control of piping systems.

Product Highlights

This temperature sensor is ideal for use in pneumatic control systems, providing efficient and reliable temperature monitoring.

Product Information

Standard Information

• Brand: Honeywell
• MPN: LP914A1045/U

Technical Specifications

• Application: Temperature Sensor
• Airflow Usage: 0.019 scfm (540 sccm)
• Connections: Push-on barb for five thirty-seconds inch (four mm) and one fourth inch (six mm) O.D. tubing
• Dimensions: Body height two inches and width two and a half inches
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Mounting: Duct mount
• Operating Temperature Range: Minus forty to one hundred sixty degrees Fahrenheit (minus forty to seventy-one degrees Celsius)
• Number of Pipes: 1
