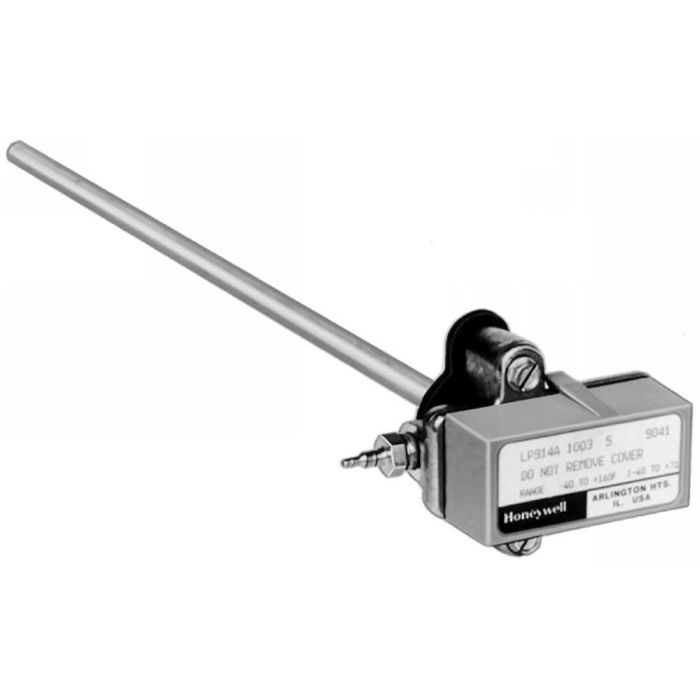

Honeywell LP914A1029/U Pneumatic Temperature Sensor

Product Description

The Honeywell LP914A1029/U is a direct-acting pneumatic temperature sensor designed for precision temperature control in HVAC applications. This sensor is utilized with RP908 and RP920 Controllers to manage pneumatic valve or damper actuators effectively.

• Well mount, rod and tube design for versatile installation options.
• Corrosion-resistant materials ensure longevity and reliability.
• Continuous temperature indication is available with the use of a receiver gauge.

Product Highlights

The LP914A1029/U provides accurate temperature measurements in a range of environments, making it suitable for commercial use in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: LP914A1029/U

Technical Specifications

• Application: Temperature Sensor
• Airflow Usage: 0.019 scfm (540 sccm)
• Connections: Push-on barb for five thirty-second inch and one quarter inch O.D. tubing
• Dimensions: Body: two inches high x two and a half inches wide
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Mounting: Well
• Operating Temperature Range: 265°F maximum (129°C maximum)
• Insertion Length: 15 inches
• Output Pressure Ratings: 3 psi to 15 psi; Supply: 18 psi (21 kPa to 103 kPa; Supply: 124 kPa)
• Action: Direct Acting
• Number of Pipes: 1
• Sensor Range: 40°F to 240°F (5°C to 115°C)
