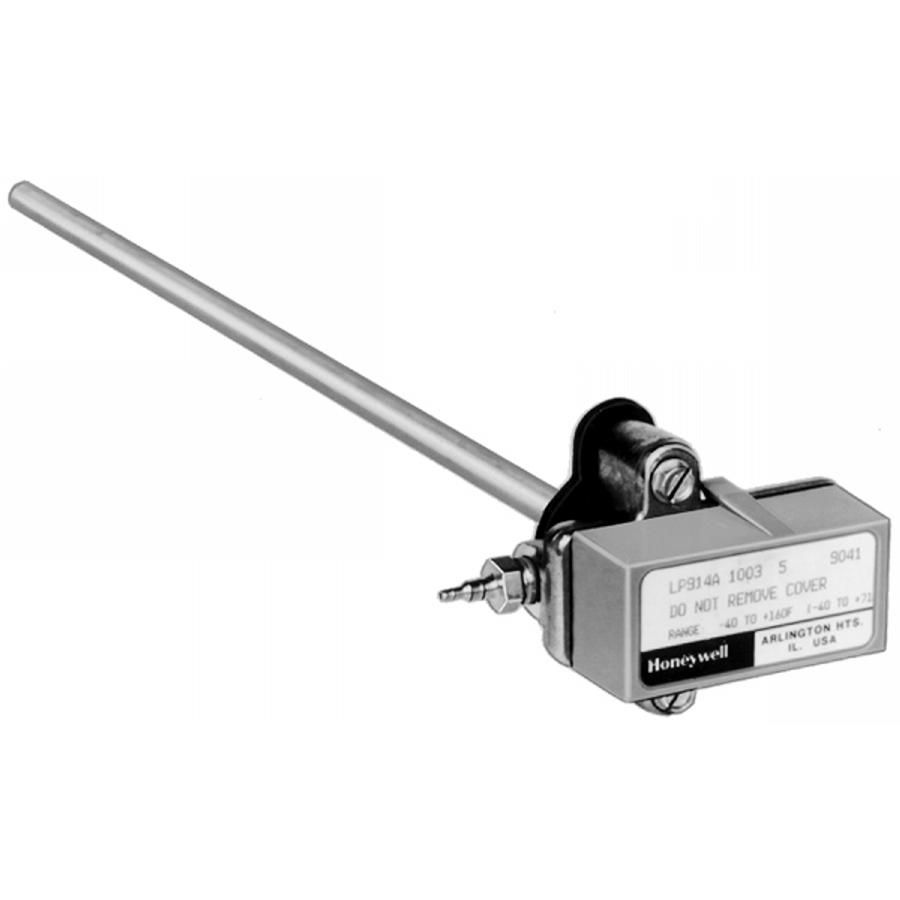

Honeywell LP914A1011/U Pneumatic Temperature Sensor 27 Inch

Product Description

The HONEYWELL LP914A1011/U is a wall-mount pneumatic temperature sensor featuring a 27-inch rod and tube element. This direct-acting sensor provides a 3 to 15 psi output and is designed for use with pneumatic controllers. It facilitates proportional control of pneumatic valve or damper actuators in commercial building applications, utilizing a single pipe connection for operation.

• Corrosion resistant construction for enhanced durability.
• Provides continuous temperature indication when used with a receiver gauge.
• Features a 27-inch rod and tube sensing element with direct-acting output.

Product Highlights

Wall-mount pneumatic temperature sensor with 27-inch rod and tube element, direct-acting 3-15 psi output, and corrosion resistance.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: LP914A1011/U

Technical Specifications

• Number Of Pipes: 1
• Application: Temperature Sensor
• Airflow Usage: 0.019 scfm (540 sccm)
• Connections: Push-on barb for 5/32 in. (4 mm) and 1/4 in. (6 mm) O.D. tubing
• Body Dimensions (in.): 2 in. high x 2 1/2 in. wide
• Maximum Safe Operating Pressure (psi): 25 psi
• Mounting: Wall mount
• Sensor Type: Rod and tube
• Operating Temperature Range (F): 265 F Maximum
• Insertion Length (in.): 27 in.
• Output Pressure (psi): 3 psi to 15 psi
• Supply Pressure (psi): 18 psi
• Action: Direct Acting
• Sensor Range: -40 F to +160 F; -40 C to +71 C
• Category: Commercial Building Controls
• Product: Pneumatic Products
• Product Subcategory: Pneumatic Temperature Sensors
