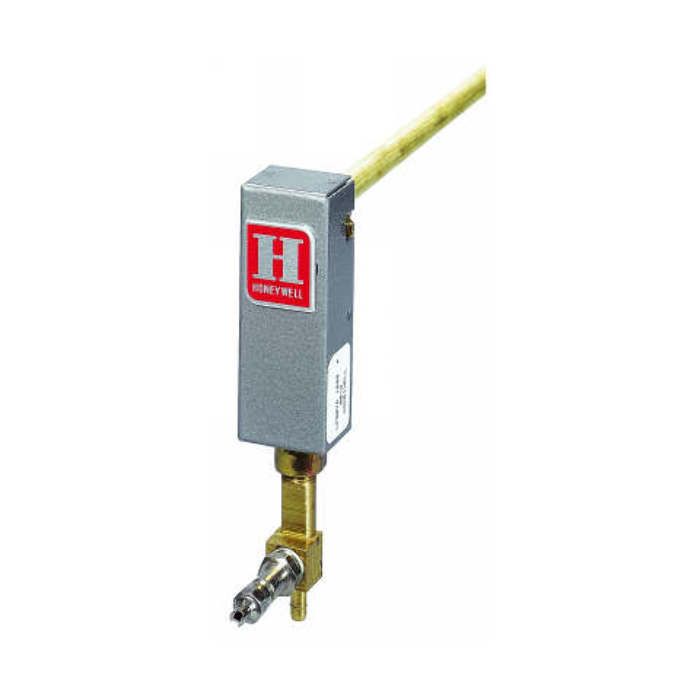

Honeywell LP907A1002/U Airstream Insertion Pneumatic Thermostat

Product Description

The Honeywell LP907A1002/U is a pneumatic thermostat designed for precise temperature control in commercial HVAC systems. This device features a direct acting mechanism with a set point temperature range from forty degrees Fahrenheit to one hundred forty degrees Fahrenheit. The thermostat can control airflow effectively and is commonly used for unit ventilators.

• Rod and tube insertion sensing element
• Wide throttling range for enhanced performance
• Gauge tee and tank valve for easy line pressure verification

Product Highlights

This thermostat is suitable for controlling pneumatic valves and damper actuators, ensuring efficient heating and air conditioning operation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: LP907A1002/U

Technical Specifications

• Application: Low Limit controller
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: 5 7/16 inches high x 1 1/16 inches wide x 2 1/4 inches deep
• Maximum Safe Operating Pressure: 25 psi
• Temperature Range: 40 F to 140 F
• Shipping and Storage Temperature Range: 150 F maximum
• Sensor Element: Invar rod, seamless brass tube
• Action: Direct Acting
