Honeywell LHX203B Straight Passage Door Lever

Product Description

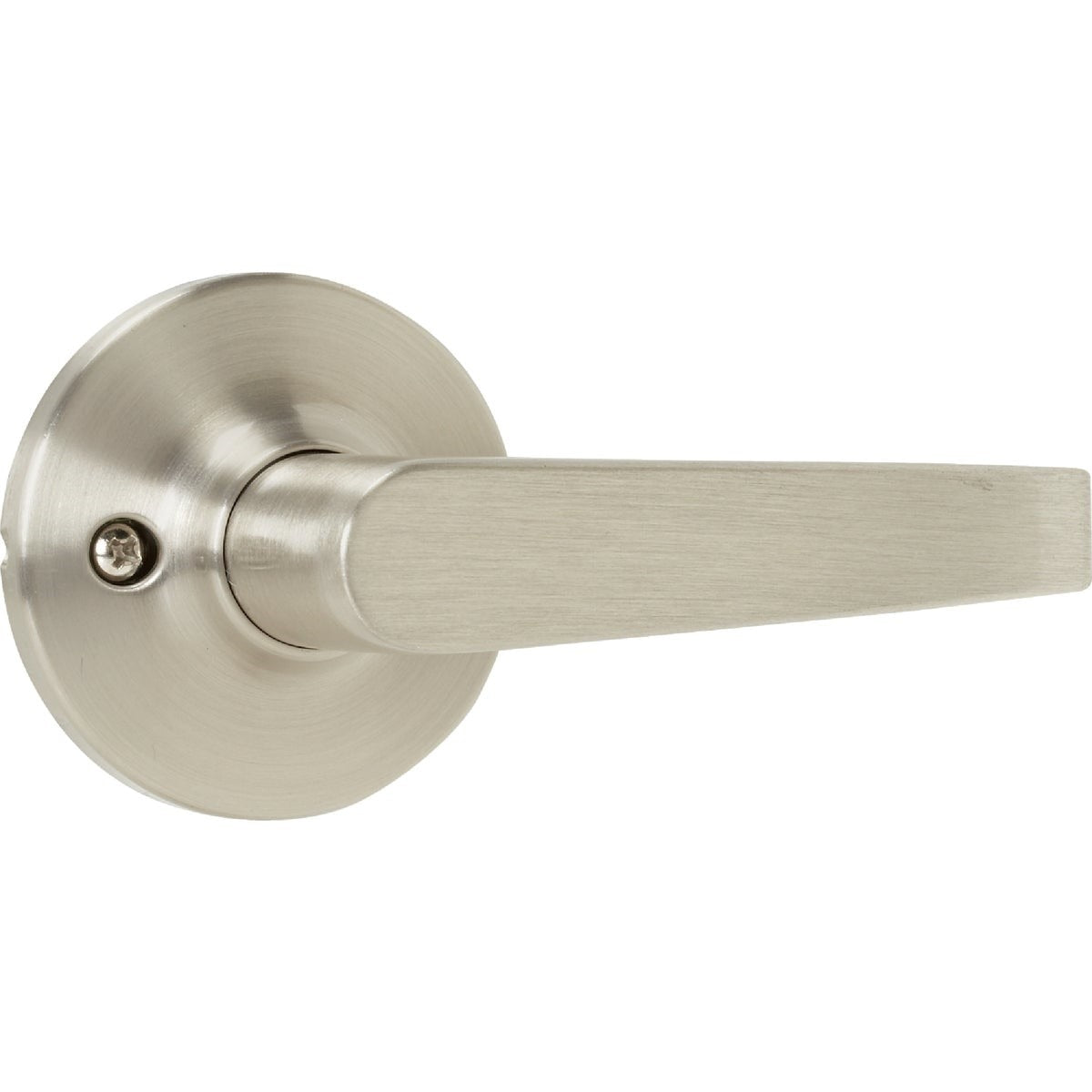

The HONEYWELL LHX203B is a straight passage door lever designed for interior doors where a latch is needed but no locking function is required. Built with a steel construction and finished in brushed nickel, this lever fits doors ranging from 1-3/8 inches to 1-3/4 inches thick. It includes a round corner mortise latch with a strike plate and supports an adjustable backset of either 2-3/8 inches or 2-3/4 inches, making it adaptable to a range of standard door preparations. Installation is straightforward for carpenters, remodelers, and general contractors working on residential interior door hardware.

This passage lever is suited for residential interior applications such as hallways, closets, and common rooms where privacy hardware is not required. The ambidextrous design allows use on both right-handed and left-handed doors without the need for separate components. The brushed nickel finish is a common match for contemporary interior trim packages. The adjustable latch backset simplifies fitment across door preparations that may vary between new construction and retrofit projects.

Key Features

• Adjustable backset: 2-3/8 inches or 2-3/4 inches to fit standard door preparations
• Compatible with door thicknesses from 1-3/8 inches to 1-3/4 inches
• Round corner mortise latch included with strike plate
• Reversible for right-handed or left-handed door installation
• Steel construction with brushed nickel finish
• Passage function — no locking mechanism, latch only

Compatibility

Designed as an OEM-style replacement or new-installation passage lever for standard residential interior doors with a 2-3/8-inch or 2-3/4-inch backset and a door thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Installation is typically performed by a carpenter, remodeler, or general contractor using a drill, hole saw, and chisel for mortise preparation. Power to any adjacent low-voltage door hardware should be disconnected before beginning work. Follow the door manufacturer's boring template specifications to ensure proper latch and strike alignment. Do not over-tighten mounting screws, as this can cause the lever to bind or the latch to misalign.

Technical Specifications

• Material: Steel
• Finish: Brushed Nickel
• Backset (Adjustable): 2-3/8 inches or 2-3/4 inches
• Door Thickness Range: 1-3/8 inches to 1-3/4 inches
• Latch Type: Round corner mortise latch with strike plate
• Hand Orientation: Reversible, right or left handed
• Weight: 1.665 pounds
• UPC: 00009326208350

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: LHX203B
