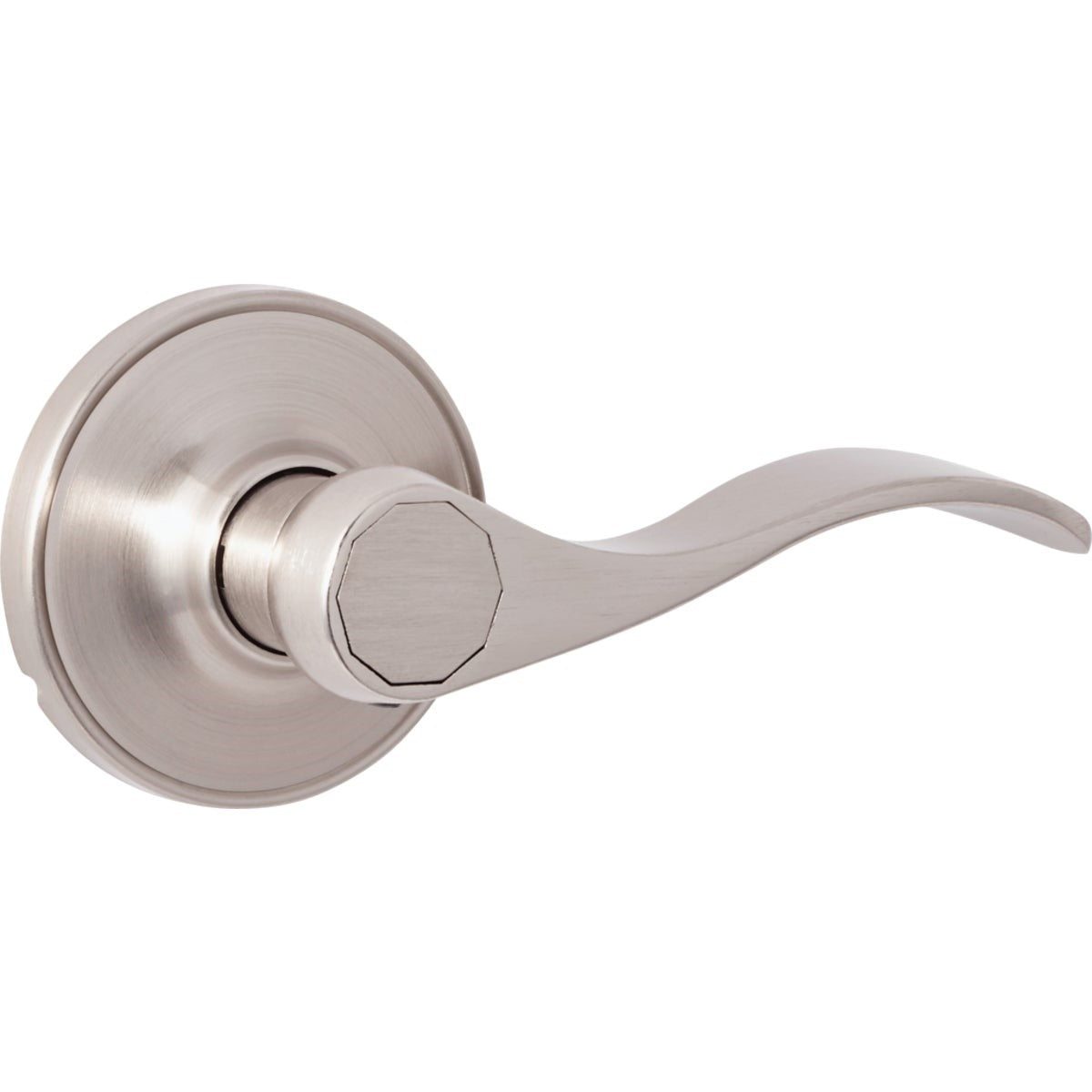

Honeywell LC2X203B Passage Door Lever Wave Brushed Nickel

Product Description

The HONEYWELL LC2X203B is a Wave-style passage door lever finished in brushed nickel over a steel construction. Passage levers have no locking mechanism, making them suited for hallways, closets, and other interior doors where free passage is required. The leverset is reversible for right-hand or left-hand door swing without requiring additional hardware. It ships with an adjustable round-corner mortise latch that fits both 2-3/8-inch and 2-3/4-inch backset configurations, along with a strike plate. Installation is handled by general contractors, carpenters, or experienced maintenance technicians.

The LC2X203B is designed for interior residential and light commercial door applications. The adjustable latch backset accommodates the most common door prep dimensions found in standard residential framing, and the lever mounts on doors ranging from 1-3/8 inches to 1-3/4 inches in thickness, covering the majority of interior door stock used in residential construction. No additional latch or strike hardware is required for a standard installation.

Key Features

• Wave-style lever design in brushed nickel finish over steel construction
• Reversible handing supports right-hand and left-hand door swing
• Adjustable latch fits 2-3/8-inch or 2-3/4-inch backset
• Compatible with door thickness from 1-3/8 inches to 1-3/4 inches
• Includes round-corner mortise latch and strike plate
• Passage function — no lock cylinder or keying required

Compatibility

Designed as an OEM-style replacement or new-installation passage lever for standard residential interior doors with 2-3/8-inch or 2-3/4-inch backset prep and 1-3/8-inch to 1-3/4-inch door thickness.

Installation Notes

Installation is performed by a carpenter, general contractor, or qualified maintenance technician using a screwdriver and, if a new bore is required, a hole saw and chisel. Verify door thickness and backset measurement before setting the latch to avoid misalignment with the strike plate. No electrical disconnection or special code compliance is required for a standard interior passage lever replacement.

Technical Specifications

• Finish: Brushed Nickel
• Material: Steel
• Function: Passage (non-locking)
• Latch Backset: Adjustable 2-3/8 inches or 2-3/4 inches
• Door Thickness: 1-3/8 inches to 1-3/4 inches
• Latch Type: Round corner mortise latch with strike plate
• Handing: Reversible right-hand or left-hand
• Weight: 1.711 pounds

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: LC2X203B
