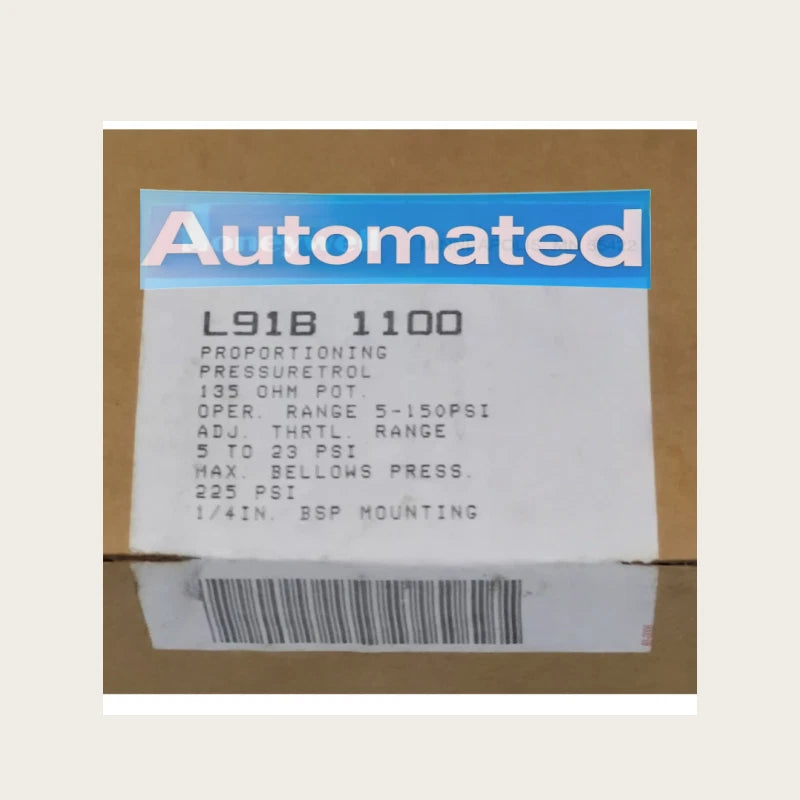

Honeywell L91B1100 Proportional Pressuretrol Controller

Product Description

The Honeywell L91B1100 is designed to provide modulating pressure control. This device is part of the Series 90 Modulating Pressure Controllers and works effectively to control motors and valves for various applications. It is compatible with steam, air, and non-combustible gases that are not corrosive to brass or phos-bronze. The controller is surface mountable and utilizes screws for installation.

• Works with pressure systems up to three hundred psi.
• Offers an adjustable throttling range for improved control.
• Durable design with a steel case and clear plastic cover.

Product Highlights

The Honeywell L91B1100 efficiently manages pressure levels while ensuring reliability in a wide range of environments.

Product Information

Standard Information

• Manufacturer: Honeywell
• Application: Modulating Pressure Control for Liquids, Air, or Non-Corrosive Gases

Technical Specifications

• Operating Pressure Range: five to one hundred fifty psi
• Electrical Connections: screw terminals
• Sensor Element: brass bellows
• Operating Temperature: thirty-two to one hundred fifty degrees Fahrenheit
• Mounting Type: one-fourth inch BSP-TR thread
• Weight: zero point ninety-six pounds
• Potentiometer Size: seven sixty-fourths inch
• Modulating Output: one hundred thirty-five ohms
