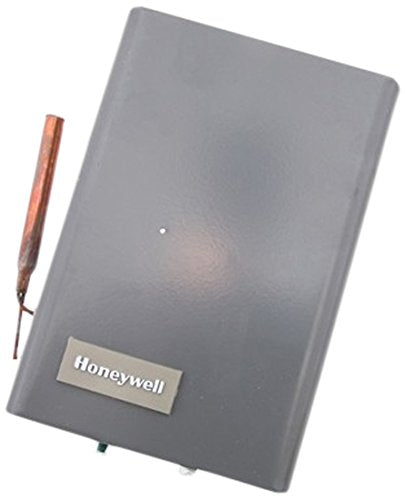

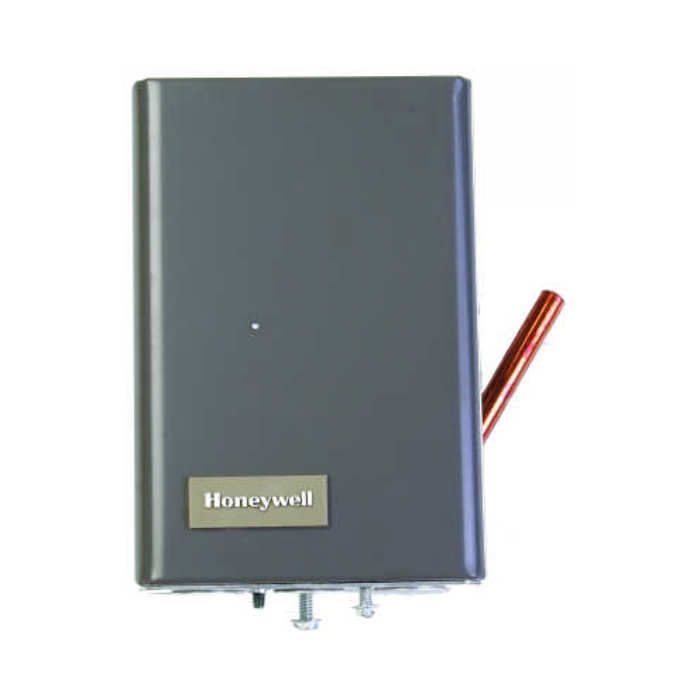

Honeywell L8148E1265/U Aqua Stat Relay 180-240 F (Immersion)

Product Description

The Honeywell L8148E1265/U is an aquastat relay designed for temperature sensing and relay control in water heating systems, with an operating range of 180�F to 240�F. The device uses a 24 Vac coil and provides automatic operation with a contact current rating of 0.2 A. It includes accessory terminals for a remote low-limit controller and offers high-limit protection that opens the burner circuit only.

• Operating temperature range 180�F to 240�F with high-limit function that opens the burner circuit only
• 24 Vac coil voltage; automatic operation; contact current rating 0.2 A
• Immersion-type relay suitable for vertical or horizontal mounting; accessory terminals for remote low-limit control; dimensions ~7.2 x 5.2 x 5.1 inches

Product Highlights

Immersion aquastat relay for high-limit temperature control in heating and boiler systems

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: L8148E1265/U
• Country of Origin: China

Technical Specifications

• Brand: Honeywell
• Manufacturer: Honeywell
• MPN: L8148E1265/U
• Product Type: Aquastat relay / immersion controller
• Category: Temperature Controllers
• Temperature Range: 180�F to 240�F
• Coil Voltage: 24 Vac
• Operation Mode: Automatic
• Contact Current Rating: 0.2 A
• Mounting: Vertical or horizontal
• High Limit Function: Opens burner circuit only
• Accessory Terminals: Yes (for remote low-limit controller)
• Differential: 15�F fixed differential
• Dimensions: 7.2 x 5.2 x 5.1 inches
• Weight: 3.99 Pounds
• ASIN: B01M3P4TVU
