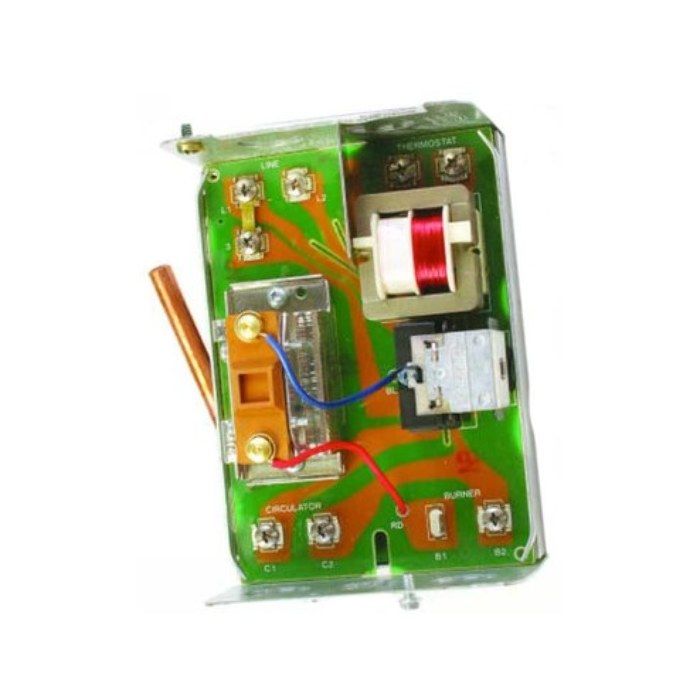

Honeywell L8148A1017/U Aquastat Relay Power 120 VAC

Product Description

The Honeywell L8148A1017/U is an Aquastat Relay designed for high limit applications. Its fixed setting is eight degrees Fahrenheit. It operates at one hundred twenty volts AC and is suitable for installations that require a depth reduction of one and one half inches to three inches for less well insulation. The relay mounts horizontally for ease of installation.

• High limit opens burner circuit only.
• Requires a 24 VAC thermostat with a heat anticipator set at 0.2A.
• Designed for efficient temperature control in HVAC systems.

Product Highlights

This relay is crucial for controlling water temperature in heating systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L8148A1017/U

Technical Specifications

• Application: High Limit
• Fixed Temperature Setting: Eight degrees Fahrenheit
• Voltage: One hundred twenty volts AC
• Insulation Depth: One and one half inches to three inches
• Mounting Orientation: Horizontal
