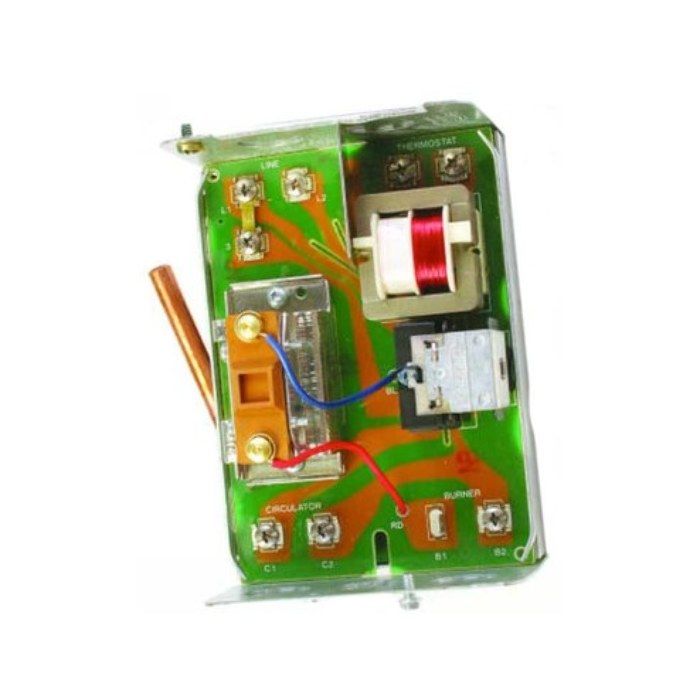

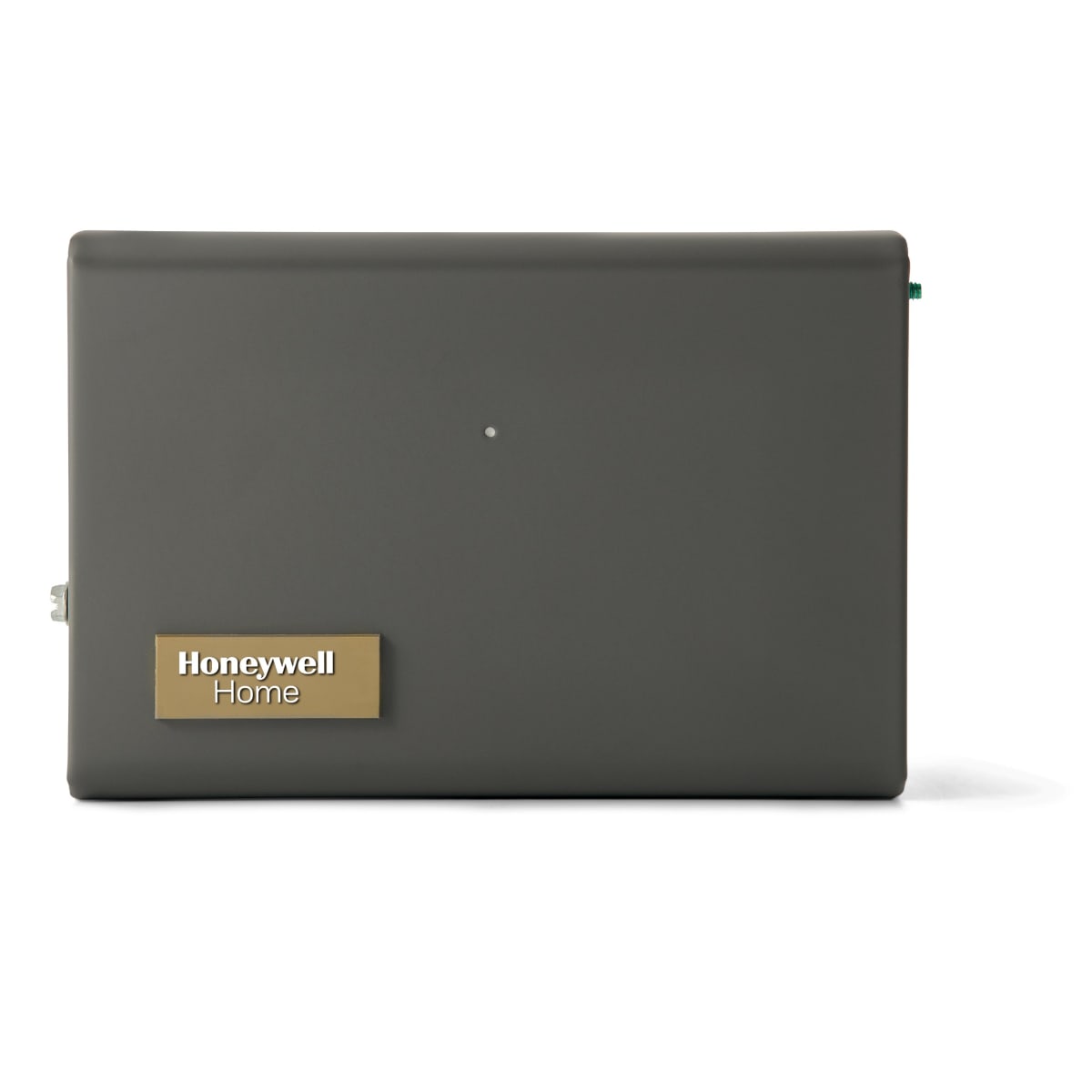

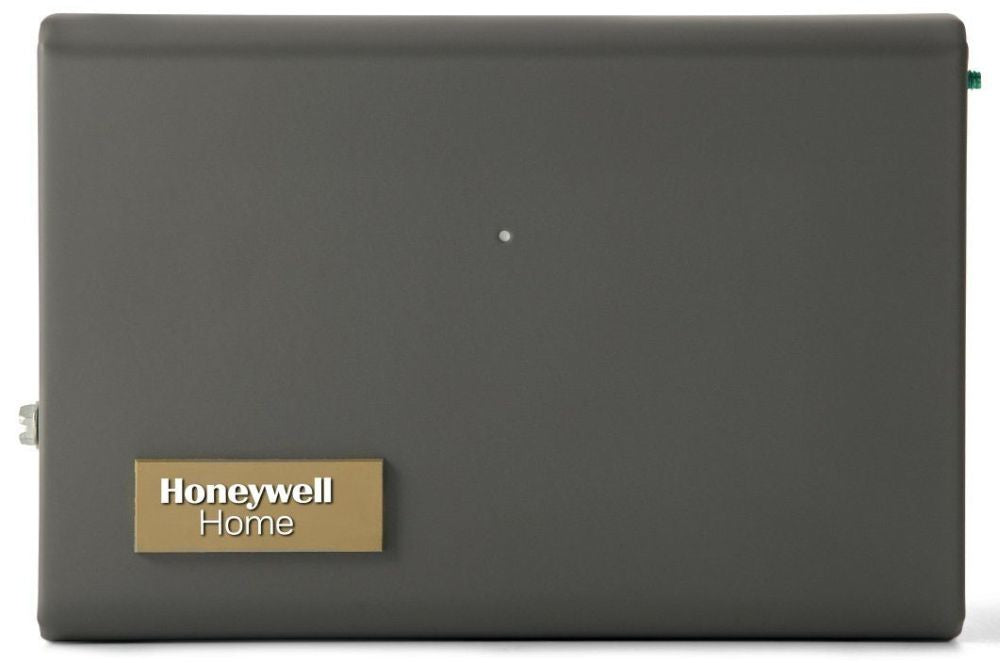

Honeywell L8148A1017/U Aqua Stat Relay 140-240 F (Immersion)

Product Description

The Honeywell L8148A1017/U is an immersion-type aquastat relay for hydronic heating systems that provides high-limit protection and relay control of burner and circulator motors. It is factory-set for a 140 to 240 F temperature range with an 8 F fixed differential and is compatible with 120 VAC supply while providing a low-voltage control circuit for a 24 VAC thermostat. Mounting can be horizontal or vertical and models include well adapter and range stops.

• High-limit protection with 140 to 240 F operating range and 8 F fixed differential; high limit opens burner circuit only.
• Immersion relay with relay control for burner and circulator motors; compatible with 120 VAC input and low-voltage 24 VAC control circuit.
• Mountable horizontal or vertical; sensing element (immersion well) options and TRADELINE models include well adapter, heat-conductive compound, and range stops.

Product Highlights

Immersion aquastat relay, 140�240 F range, 8 F fixed differential, 120 VAC input with 24 VAC control circuit, horizontal or vertical mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: L8148A1017/U
• Country of Origin: China

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: L8148A1017/U
• Model: L8148A Aquastat Relay
• Type: Immersion hydronic controller (aquastat relay)
• Application: High limit / hydronic heating systems
• Temperature Range: 140 to 240 F
• Differential: 8 F fixed
• Input Voltage: 120 VAC, 60 Hz
• Control Voltage: 24 VAC (requires 24 VAC thermostat)
• Switch Type: SPST (normally open contact)
• Contact current rating (control circuit): 0.2 A
• Maximum switching current (full load): 7.4 A at 120 VAC; 3.7 A at 240 VAC
• Locked rotor ratings: 44.4 A at 120 VAC; 22.2 A at 240 VAC
• Mounting: Horizontal or vertical immersion
• Sensing element / Well length: 6 inch sensing element (well-style immersion)
• Includes: Well adapter, tube of heat-conductive compound, range stops (TRADELINE models)
• Electrical connection: Quick-connect / screw
• Pressure Rating: 255 PSI
• Media Handled: Hot water
• Certifications: UL, CSA
• Overall Dimensions: 6.13 inch L x 3.06 inch W x 4.31 inch H
• Item Weight: Approximately 0.45 kilograms
