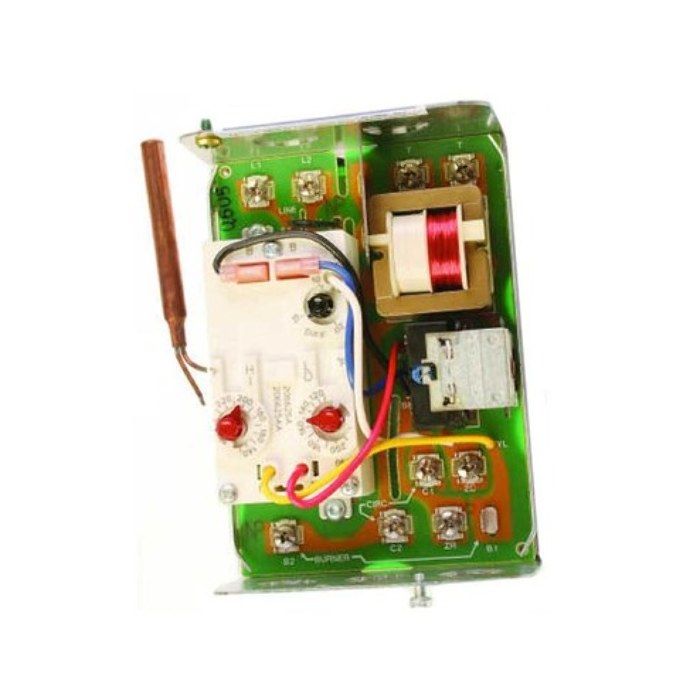

Honeywell L8124C1003/U Triple Aquastat Relay 120 VAC

Product Description

The Honeywell L8124C1003/U is a Triple Aquastat Relay designed for high limit applications. This model operates at 120 VAC and provides single pole/single throw (SPST) switching action. Its vertical mount configuration allows for easy installation in forced hydronic heating systems.

• Combines high limit protection with low limit control.
• Diaphragm powerhead and micro switch assembly respond to temperature changes.
• Requires a twenty-four VAC thermostat for operation.

Product Highlights

This relay is suitable for multizone control when paired with an R845 relay and separate circulators for each zone, ensuring efficient heating across multiple areas.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L8124C1003/U

Technical Specifications

• High Limit Adjustable Range: 10 to 25 F
• Low Limit: 10 F fixed
• Power Supply: 120 VAC
• Switching Action: SPST
• Mounting Style: Vertical
• Compatibility: Requires 24 VAC thermostat with heat anticipator set at 0.2 A
