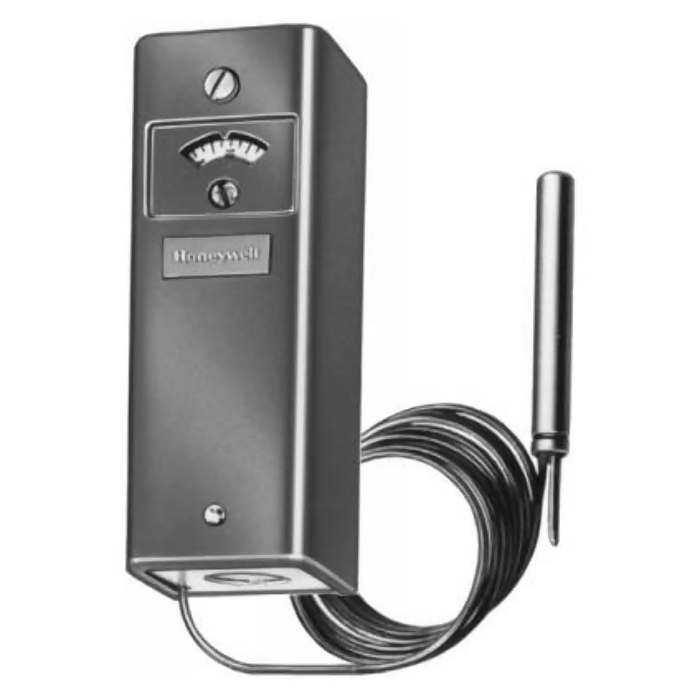

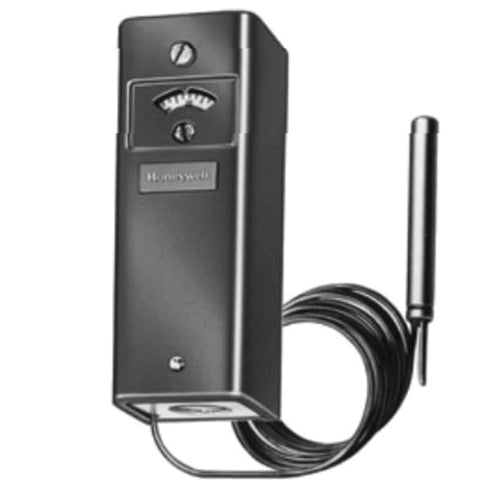

Honeywell L6008A1242/U High And Low Limit Aquastat Controller

Product Description

The Honeywell L6008A1242/U is a high and low limit aquastat controller designed for controlling the temperature of liquids in heating systems. This device features a circulator control and low-limit functionality, which makes it suitable for residential combustion applications.

• Adjustable differential from five degrees Fahrenheit to thirty degrees Fahrenheit
• Capillary length of sixty-six inches for flexible installation
• SPDT switching action for reliable performance

Product Highlights

This controller helps maintain safe temperature levels in boilers and storage tanks. It is ideal for low limit control and ensures efficient operation of heating systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L6008A1242/U

Technical Specifications

• Amperage Rating: 5.1 A at 240 VAC, 8 A at 120 VAC Full Load, 30.6 A at 240 VAC, 48 A at 120 VAC Locked Rotor, 0.25 A at 0.25 - 12 VDC Millivolt
• Capillary Length: 66 inches
• Dimensions: 2 inches W x 5-5/8 inches H x 2-1/8 inches D
• Item Name: Aquastat Controller
• Mounting: Horizontal or Vertical
• Switch Configuration: SPDT
• Temperature Rating: 100 - 200 degrees Fahrenheit
• Type: Single and Multi-Function, Circulator Control and Low-Limit
• Voltage Rating: 120/240 V
