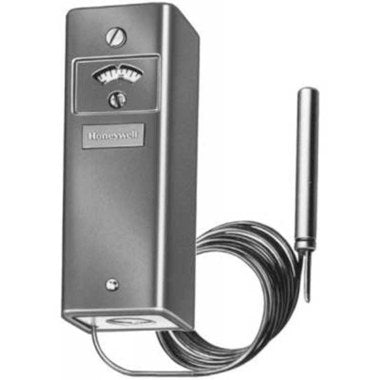

Honeywell L6008A1192/U High And Low Limit Aquastat Controller

Product Description

The Honeywell L6008A1192/U is a high and low limit aquastat controller designed for temperature regulation in HVAC systems. This model operates within a range from one hundred degrees Fahrenheit to two hundred forty degrees Fahrenheit. It is essential for maintaining optimal temperature control in residential combustion applications.

• Temperature range from 100 F to 240 F
• Adjustable differential from 5 F to 30 F
• Capillary length of sixty-six inches

Product Highlights

This aquastat is equipped with a single pole double throw (SPDT) switching action, allowing versatile installation. It can be mounted either horizontally or vertically, enhancing its adaptability in various settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L6008A1192/U

Technical Specifications

• Temperature Range: 100 F to 240 F
• Adjustable Differential: 5 F to 30 F
• Capillary Length: 66 inches
• Switching Action: SPDT
• Mounting Orientation: Horizontal or Vertical
• Control Point Scale: Visible with external adjustment screw
• Remote Bulb Models: Suitable for air temperature sensing
• Factory Stop: At 240 F
