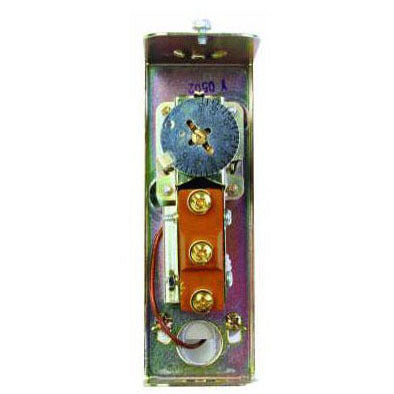

Honeywell L6006C1018/U High And Low Limit Aquastat Controller 65-200 deg F

Product Description

The Honeywell L6006C1018/U is an aquastat controller designed for high and low limit applications. It is suitable for controlling the temperature of liquids in various systems. This product operates effectively within a temperature range of sixty-five to two hundred degrees Fahrenheit.

• Adjustable differential from five to thirty degrees Fahrenheit
• SPDT switching action for flexible control
• Factory stop setting at two hundred degrees Fahrenheit

Product Highlights

This aquastat controller accommodates both horizontal and vertical surface mounting, allowing for versatile installation options.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L6006C1018/U

Technical Specifications

• Amperage Rating: Millivolt: 0.25 A at 0.25 - 12 VDC, Full Load: 8A at 120 VAC, 5.1 A at 240 VAC, Locked Rotor: 48 A at 120 VAC, 30.6 A at 240 VAC
• Contact Configuration: SPDT
• Dimensions: 2 inches W x 5.625 inches H x 2.75 inches D
• Temperature Rating: 65 - 200 deg F
• Type: High/Low Limit
• Standards/Certifications: UL MP466, CSA LR95329-1 certified
• Applications: For limiting or regulating the temperature of liquids in boilers and storage tanks
