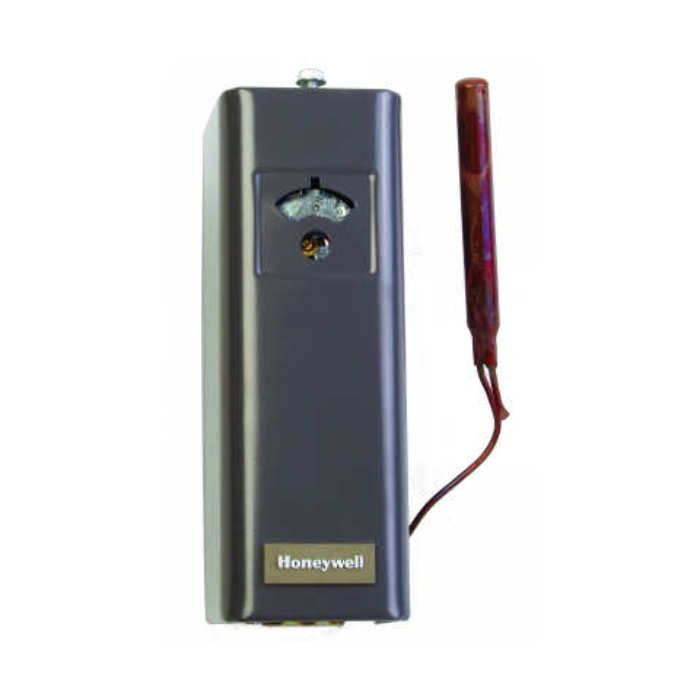

Honeywell L6006A1145/U High Or Low Limit Aquastat Controller

Product Description

The Honeywell L6006A1145/U is an aquastat controller. This product regulates the temperature of liquids in various heating systems, such as boilers and storage tanks. The controller can be set for high or low limits and features an adjustable differential range of five degrees Fahrenheit to thirty degrees Fahrenheit.

• Operates with totally enclosed micro switch snap-acting switches.
• Adjustable settings for visible control point scale.
• Capillary length of three inches for effective temperature sensing.

Product Highlights

This controller is essential for HVAC professionals needing reliable temperature regulation. It supports a wide temperature range and ensures safety by controlling the limits of heating systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L6006A1145/U

Technical Specifications

• Amperage Rating: 8 A at 120 VAC, 5.1 A at 240 VAC Full Load, 48 A at 120 VAC, 30.6 A at 240 VAC Locked Rotor, 0.25 A at 0.25 - 12 VDC Millivolt
• Capillary Length: 3 inches
• Dimensions: 2 inches W x 5-5/8 inches H x 2-1/8 inches D
• Mounting: Horizontal
• Switch Type: SPDT
• Temperature Rating: 100 - 240 degrees Fahrenheit
• Type: High/Low Limit, Circulator Control
• Applications: Suitable for limiting or regulating the temperature of liquids in boilers, storage tanks, and more.
