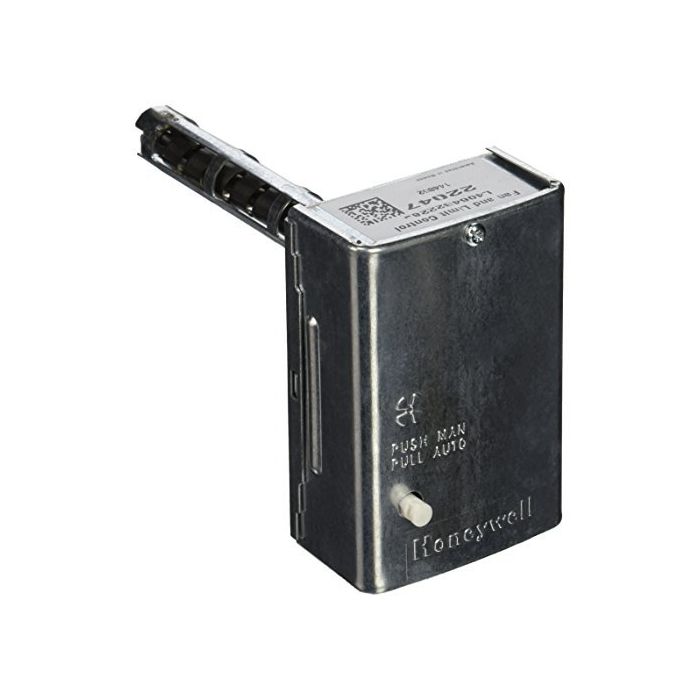

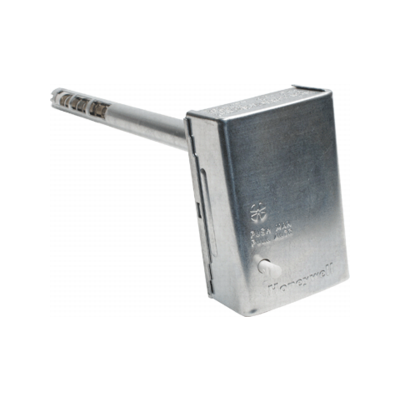

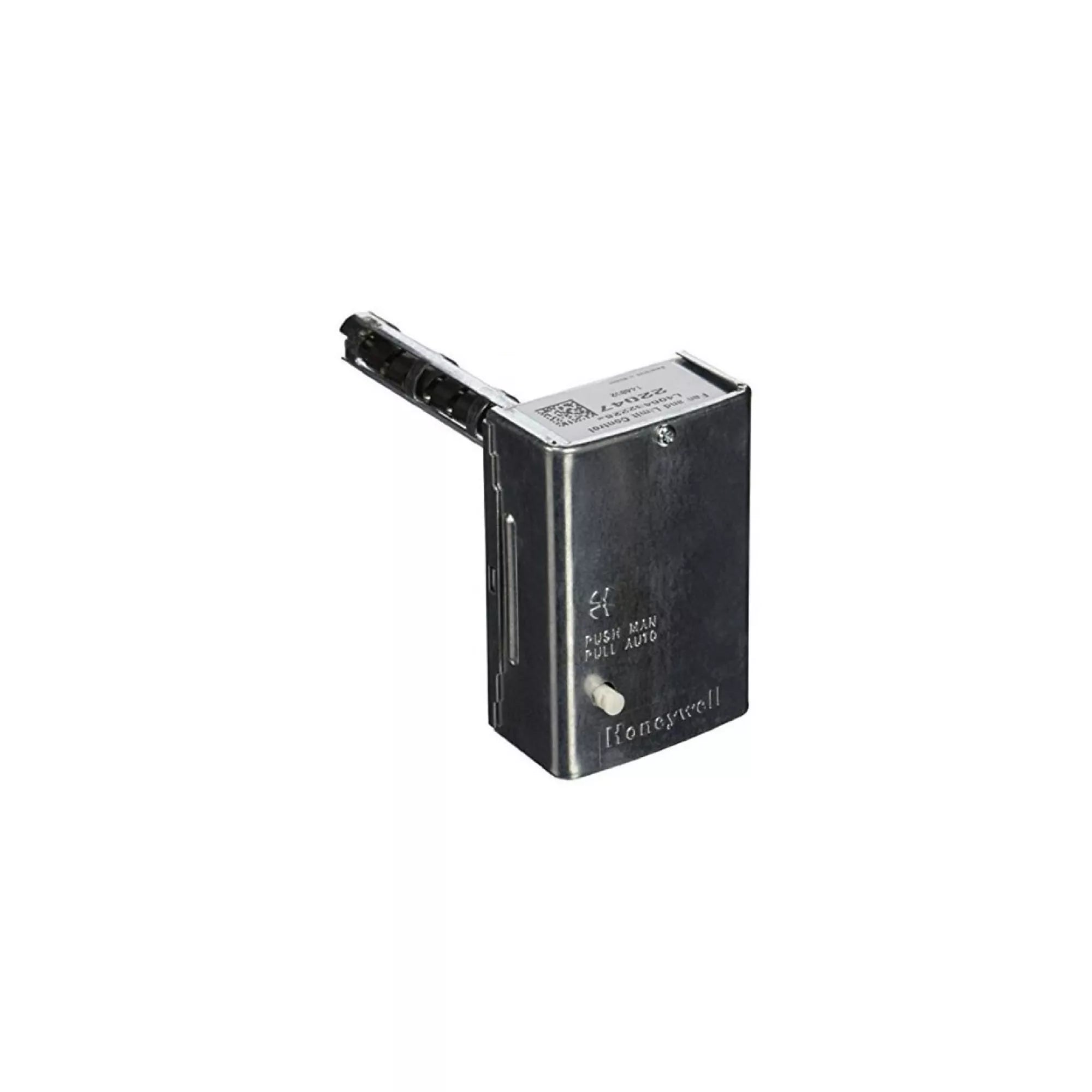

Honeywell L4064B2228/U Fan and Limit Controller 14 A @ 120 Vac (5 in Insert) Replaces L4064 series

Product Description

The Honeywell L4064B2228/U is a fan and limit controller that controls the high limit and fan motor in forced air heating systems. It uses a 5 in element insertion and operates from -40 F to 190 F, with a high limit switch that breaks on temperature rise. The controller provides three wiring terminal options and adapts to many competitive mounting holes for replacement applications.

• Controls high limit and fan motor with 5 in sensing element and operating range -40 F to 190 F
• Three wiring terminal options: push-in receptacles for stripped wire, female 1/4 in flag receptacles, and auxiliary screw terminals

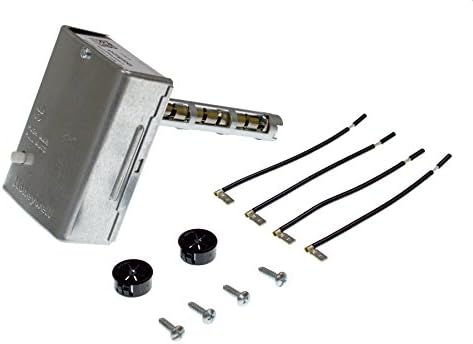

• Field-adjustable fan and high-limit settings; L4064B/W models include a manual fan switch; Tradeline models include mounting adapters and strain relief bushings

Product Highlights

Fan and limit controller for forced air heating systems; 5 in insertion; -40 F to 190 F; multiple wiring terminal options

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: L4064B2228/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: L4064B2228/U
• Application: Forced air heating systems
• Controls: Controls high limit and fan motor
• Element Insertion Length: 5 in
• Operating Temperature Range: -40 F to 190 F
• Switch Action: High limit switch breaks on temperature rise
• Wiring Terminals: Push-in receptacles for stripped wire; female 1/4 in flag receptacles; auxiliary screw terminals
• Field Adjustable Settings: Fan and high-limit settings field adjustable
• Mounting: Adapts to many competitive mounting holes (replacement applications)
• Electrical Rating: 14 A @ 120 Vac
• Product Dimensions (W x H x L): 1.49 in x 4.28 in x 3 in
• UPC: 085267000208
• Unit of Measure: EA
• UL Listed: No
• Prop 65: No
