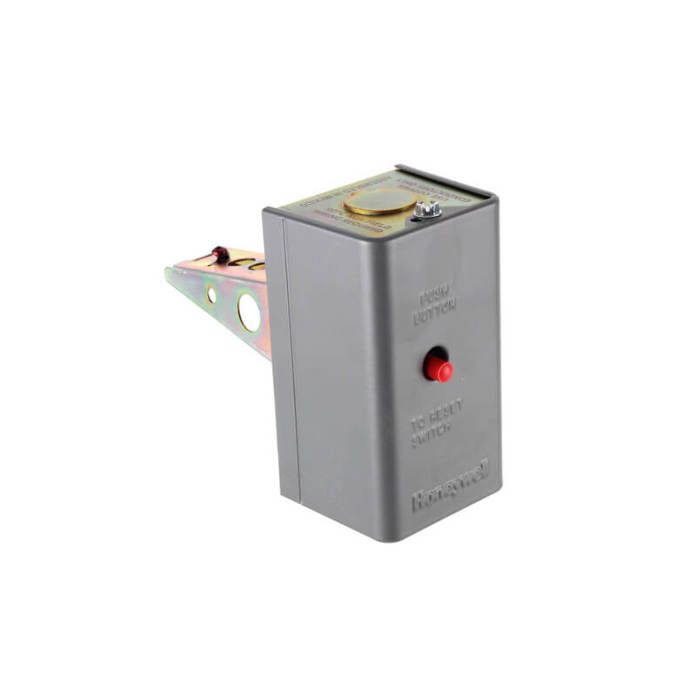

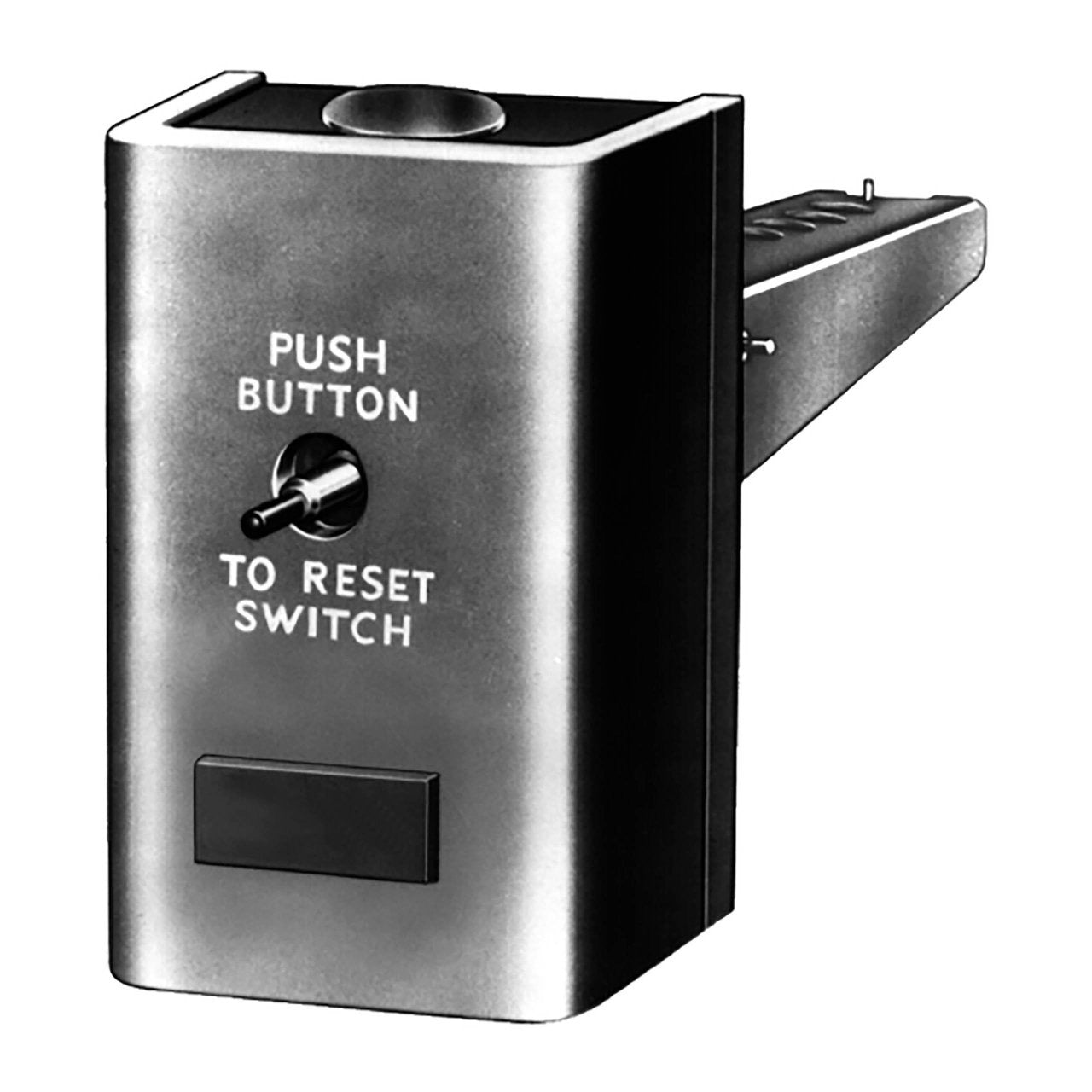

Honeywell L4029E1029/U Reset Limit Control

Product Description

The Honeywell L4029E1029/U Reset Limit Control is designed for HVAC systems. This device opens a circuit when the air temperature reaches a critical level, functioning as a fire thermostat. It is suitable for installation in ducts of AC and ventilation systems. If a fire is detected, the fan will automatically shut down.

• Manual reset feature
• Detects critical temperature rise to shut off the fan
• Designed for fire and general-purpose applications

Product Highlights

The L4029E1029/U provides essential safety functions by detecting temperature rises and shutting the system down to prevent fire hazards.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L4029E1029/U

Technical Specifications

• Type: Electric, Thermostat
• Application: Fire, General Purpose
• Mounting: Duct Mount
• Switch Action: SPST
• Dimensions: 2-5/16 inches W x 2 inches D x 3-3/4 inches H
• Element Length: 3 inches
• Pilot Duty Rating: 0.25 A at 0.25 to 12 VDC
• Standards/Approvals: CSA LR95329-5, UL MP466 Vol 8, Guide #MBPR2
