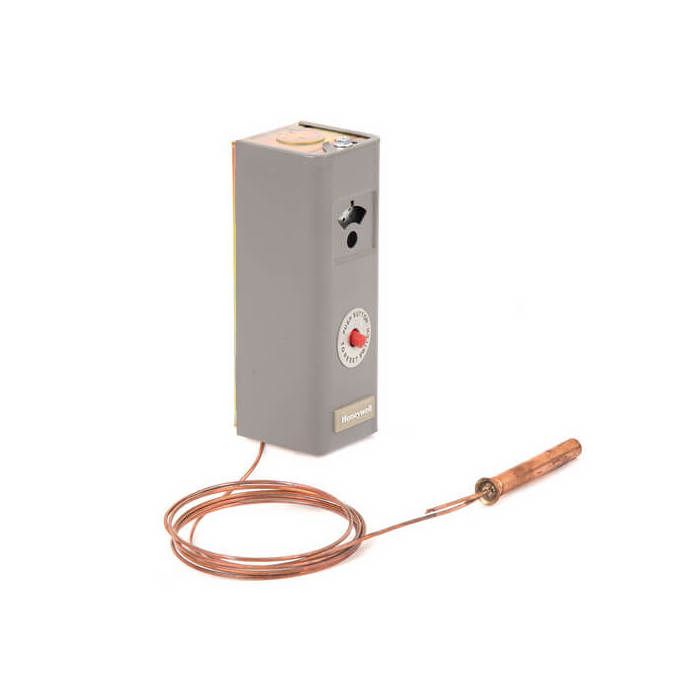

Honeywell L4008E1313/U High Limit Aquastat Controller

Product Description

The Honeywell L4008E1313/U is a high limit aquastat controller designed for effective temperature regulation. This controller operates within a range of one hundred degrees Fahrenheit to two hundred degrees Fahrenheit. It features a manual reset and a single pole single throw switch that activates when the temperature rises. Installation can be horizontal or vertical depending on the specific application needs.

• Temperature range of 100 F to 200 F
• Manual reset with a snap-acting switch
• Capillary length of sixty-six inches

Product Highlights

This aquastat controller is ideal for regulating temperature in HVAC systems, providing reliable control for both high and low limit applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L4008E1313/U

Technical Specifications

• Operation Range: 100 F to 200 F
• Capillary Length: 66 inches
• Switch Type: SPST, Break on temperature rise
• Mounting: Horizontal or vertical
• Features: Totally enclosed micro switch, visible control point scale, remote bulb options available
