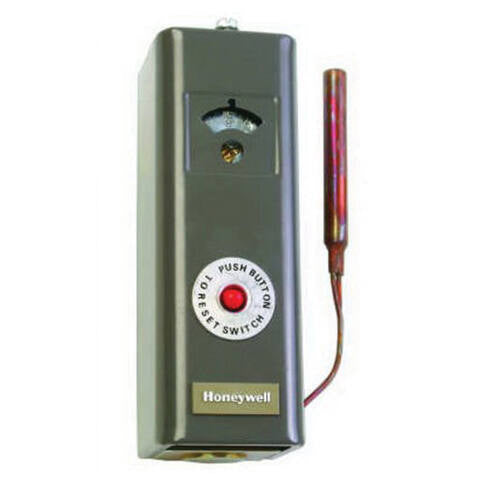

Honeywell L4006E1091 Manual Reset Aquastat 130-270 Degrees

Product Description

The Honeywell L4006E1091 is a manual reset aquastat designed for temperature regulation in applications such as boilers and storage tanks. This device operates within a temperature range of one hundred thirty to two hundred seventy degrees Fahrenheit. The aquastat features a snap-acting switch and does not require continuous monitoring for effective operation.

• Temperature range of one hundred thirty to two hundred seventy degrees Fahrenheit
• Horizontal or vertical mounting capability
• Manual reset function for safety

Product Highlights

The Honeywell L4006E1091 ensures reliable temperature control in various heating systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L4006E1091

Technical Specifications

• Type: Aquastat High Limit
• Switch Type: SPST
• Temperature Range: 130 - 270 deg F
• Bulb Size: 3/8 x 2-7/8 Inch Copper
• Spud Size: 1/2 Inch NPT
• Insulation Depth: 3 Inch
• Capillary Length: 3 Inch
• Enclosure Type: Totally Enclosed
• Mounting Type: Horizontal/Vertical
