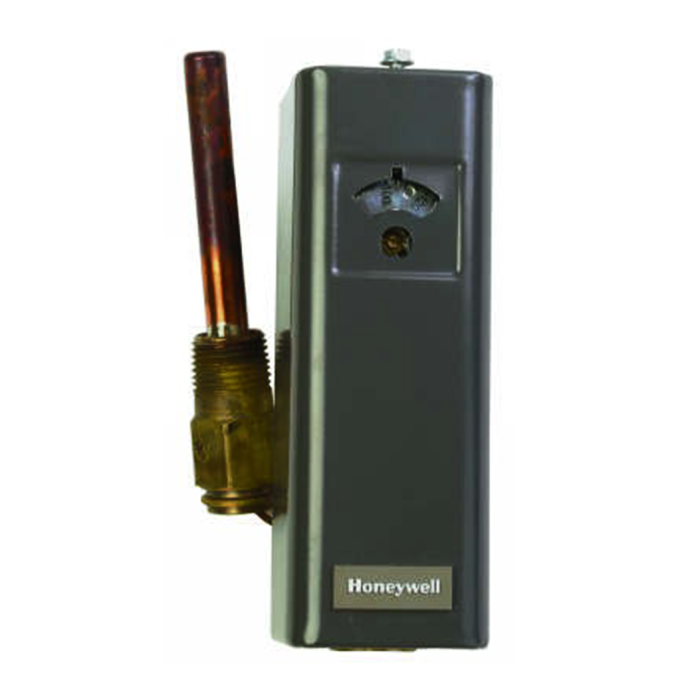

Honeywell L4006A1967/U High Or Low Limit Aquastat Controller

Product Description

The Honeywell L4006A1967/U is a high or low limit aquastat controller designed for temperature regulation in HVAC systems. This product operates within a range of one hundred degrees Fahrenheit to two hundred forty degrees Fahrenheit, with differential temperature settings between five degrees Fahrenheit and thirty degrees Fahrenheit. It features a single-pole, single-throw design that activates when the temperature rises to the set point.

• Capillary length of one and a half inches.
• Can be mounted horizontally or vertically.
• Includes a half-inch well for easy installation.

Product Highlights

The L4006A1967/U is suitable for both high limit and low limit control, ensuring versatility in various applications within residential heating systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L4006A1967/U

Technical Specifications

• Operating Temperature Range: 100 F to 240 F
• Differential Temperature Setting: 5 F to 30 F
• Mounting Options: Horizontal or Vertical
• Capillary Length: 1.5 inches
• SPST Configuration
• Stop Factory-Set At: 240 F
• Includes: 1/2 in. Well (123869A)
• Control Activation: Break On Temperature Rise
