Honeywell L4006A1009/U High Or Low Limit Aquastat Controller

Product Description

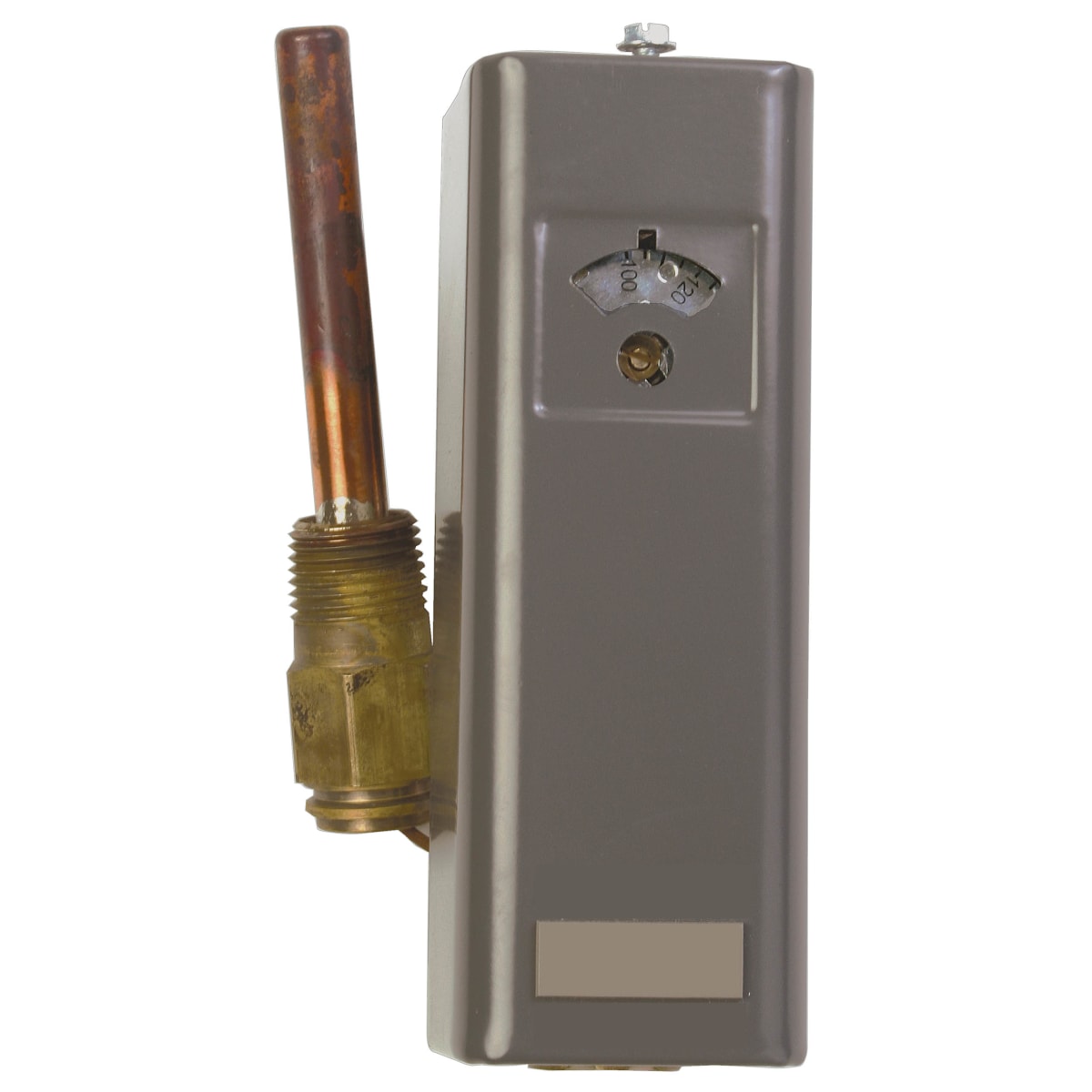

The HONEYWELL L4006A1009/U High Or Low Limit Aquastat Controller features a 100 F To 240 F operation range and a 5 F fixed differential temperature. It utilizes an SPST switch with break on temperature rise and includes a 1-1/2 in. capillary length. This controller can be mounted horizontally or vertically and is suitable for boilers and storage tanks.

• Includes 1/2 in. Well (123869A)
• Models Calibrated For High Limit Use Are Also Suitable For Low Limit Control If A Separate High Limit Controller Is Used
• Visible Control Point Scale And External Adjustment Screw, Permit Easy Setting

Product Highlights

Aquastat controller for limiting or regulating liquid temperature with easy settings and versatile mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: L4006A1009/U

Technical Specifications

• Operation Range: 100 F To 240 F
• Differential Temperature: 5 F Fixed
• Switch Type: SPST
• Switch Action: Break On Temperature Rise
• Capillary Length: 1-1/2 in.
• Mounting: Horizontal Or Vertical
• Operating Temperature: 100 F to 240 F
• Differential: 5 F fixed
• Well Size: 1/2 in
• MPN: L4006A1009/U
• Brand: HONEYWELL
