Product Description

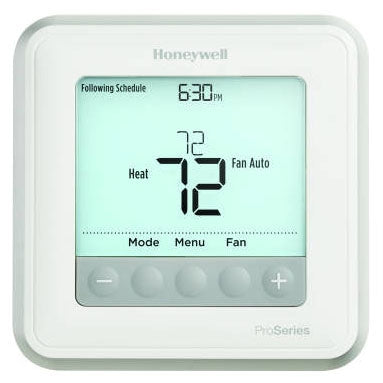

The HONEYWELL INTERNATIONAL TH6220U2000/U is a versatile thermostat designed for efficient climate control. It supports both hardwired and battery operation, making it adaptable for various installations. This model is ideal for users seeking a 2-heat and 2-cool setup, catering to heat pump and conventional systems.
- Programmable for a 5-1-1, 5-2, or 7-day schedule.
- Large display with easy-to-use soft key control.
- Humidity control range from 5 to 90 percent, non-condensing.
Product Highlights
This thermostat allows for precise temperature settings, operating between thirty-seven to one hundred two degrees Fahrenheit.
Product Information
Standard Information
-
Voltage Rating: 20 to 30 Volt AC
-
Current Rating: 0.02 to 1 Amp (Heating), 0.02 to 0.5 Amp (Fan)
Technical Specifications
-
Size: 4-1/16 inch length x 4-1/16 inch width x 1-3/32 inch depth
-
Display Type: 5.44 square inch large soft key control
-
Terminal Designation: R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, and S
-
Switch Position: Heat-Off-Cool-Auto-EM (System), Auto-On-Circ-Follow Schedule (Fan)
-
Setting Temperature Rating: 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
-
Includes: UWP mounting system, installation adapter, small decorative cover plate, screws, and anchors
