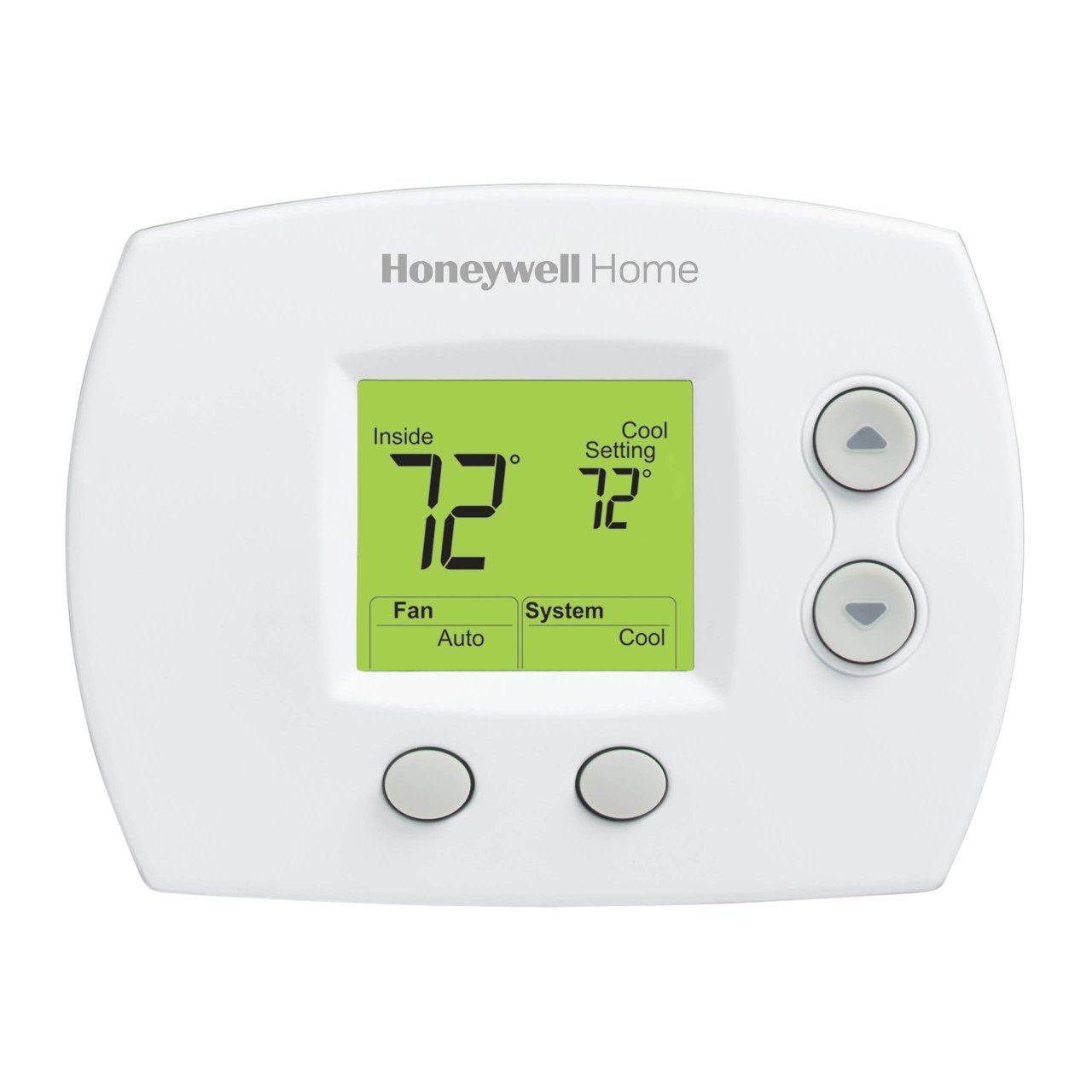

Honeywell International TH5110D1006/U Focuspro 5000 Non-Programmable Thermostat

Product Description

The HONEYWELL INTERNATIONAL TH5110D1006/U Focuspro 5000 digital thermostat offers a blend of features, performance, energy savings, and value. It features a backlit digital display and displays both room and set temperature. It supports up to 1 heat/1 cool conventional systems and heat pumps with no auxiliary heat and has horizontal mounting.

• Easy-to see and read with a large, clear backlit digital display
• Easy-access battery replacement door
• Dual-powered (battery and/or hardwire)

Product Highlights

The Focuspro 5000 offers precise comfort control and an easy-to-read display. It is suitable for various heating and cooling systems.

Product Information

Standard Information

• Brand: HONEYWELL INTERNATIONAL
• Manufacturer Part Number: TH5110D1006/U

Technical Specifications

• Brand: Honeywell
• Model name: TH5110D1006
• Controller type: Push Button
• Specific uses for product: Heat Pump
• Temperature Control Type: Digital
• Power Source: Battery Powered
• Voltage: 30 Volts
• Display Type: Digital
• Screen Size: 1.5 Inches
• Control Type: Button Control
• Control Method: App
• Mounting Type: Horizontal Mount
• Backlight: Yes
• Number of Batteries: 2 AA batteries required.
• Style: Digital
• Shape: curved
• Material: Plastic
• Model Number: TH5110D1006/U
• Item Type Name: Non-Programmable Thermostat
• Unit Count: 1.00 Count
• Application: 1H/1C Conventional Systems, Heat Pumps with No Auxiliary Heat
• Stages: Up to 1 Heat/1 Cool
• Display Size: 1.95 sq in
• Display Language: English
• Displayed Information: Indoor Temperature, Status Display
• Modes of Operation: Heat, Cool, Auto, Off
• Program Type: Manual / Not Programmed
• Energy Star Certified: No
• Alerts and Reminders: Battery Replacement
• Power Supply: Dual Powered to Battery, Hardwired
• Sensor Type: Thermistor
• Differential Temperature: 1 °F, 0.5 °C
• Electrical Connection Type: Screw terminals
• Number of Fan Speeds: 1
• Power Supply Frequency: 50 Hz, 60 Hz
• Set point Temperature (Max): Heating: 90 °F, Cooling: 99 °F, Heating: 32 °C, Cooling: 37 °C
• Set point Temperature (Min): Heating: 40 °F, Cooling: 50 °F, Heating: 4.5 °C, Cooling: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall
• Switch Type: Relay
• Accuracy: +/-1 deg F
• Amperage Rating: 0.5 to 1 A
• Changeover: Auto, Manual
• Cool Current: 1 A Running
• Cycles per Hour: 1 to 12 Heating, 1 to 6 Cooling
• Fan Current: 0.5 A Running
• Frequency Rating: 50/60 Hz
• Heat Current: 1 A Running
• Humidity Rating: 5 to 90% RH Non-Condensing
• Power Rating: 10 to 30 W
• Series: FocusPRO 5000 Series
• Switch Position: HEAT-OFF-COOL-AUTO (System), AUTO-ON (Fan)
• Temperature Settings: 40 to 90 deg F Heating, 50 to 99 deg F Cooling
• Voltage Rating: 20 to 30 VAC, 750 mV
