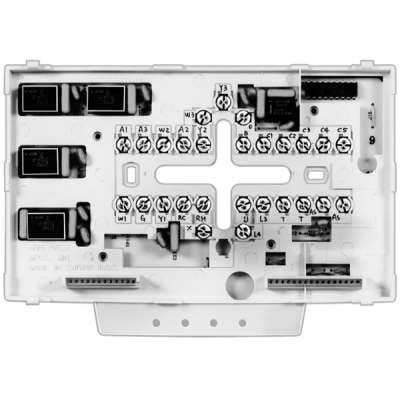

Honeywell International q7300a2016 Programmable Commercial Thermostat Subbase 2 Heat 2 Cool

Product Description

The Honeywell International Q7300A2016 is a programmable commercial thermostat subbase designed for 2 heat and 2 cool HVAC system configurations. This subbase serves as the wiring and mounting platform that connects a compatible Honeywell commercial thermostat to the heating and cooling equipment in a building. It provides the terminal connections needed to control multi-stage HVAC systems, making it a critical component in commercial buildings, office spaces, retail locations, and light industrial facilities.

A thermostat subbase is the lower section of a two-part thermostat assembly. It mounts directly to the wall and houses the wiring terminals. The thermostat head attaches to the subbase and reads room temperature, sends signals through the subbase terminals to the HVAC equipment. Without the correct subbase, the thermostat cannot communicate properly with the system. The Q7300A2016 is built specifically to support 2-stage heating and 2-stage cooling, which is common in commercial rooftop units, split systems, and heat pump applications where multiple stages of conditioning are required for efficient temperature control.

HVAC technicians and building maintenance professionals rely on the Q7300A2016 when replacing or upgrading Honeywell commercial thermostat installations. It is compatible with programmable commercial thermostats in the Honeywell T7300 series and similar product lines. Proper subbase selection is essential during any thermostat replacement job to ensure the system wiring matches the terminal layout and staging configuration. This subbase simplifies installation by providing clearly labeled terminals and a secure mounting base that keeps wiring organized and protected.

The 2 heat and 2 cool configuration supports systems with multi-stage compressors or dual heating sources, allowing each stage to be called independently for better energy efficiency and comfort control in commercial environments.

• Designed for 2 heat and 2 cool multi-stage commercial HVAC systems
• Serves as the wiring terminal and wall-mount base for compatible Honeywell commercial thermostats
• Supports programmable thermostat operation in commercial buildings, rooftop units, and split systems

Product Highlights

The Honeywell International Q7300A2016 thermostat subbase provides a reliable, clearly terminated wiring platform for 2-stage heating and 2-stage cooling commercial HVAC applications. It is a direct-fit solution for technicians installing or replacing Honeywell commercial programmable thermostats.

Product Information

Standard Information

• Brand: HONEYWELL INTERNATIONAL
• Manufacturer Part Number: Q7300A2016

Technical Specifications

• Configuration: 2 Heat / 2 Cool
• Type: Thermostat Subbase
• Application: Commercial HVAC Systems
• Compatibility: Honeywell T7300 Series and Compatible Commercial Programmable Thermostats
