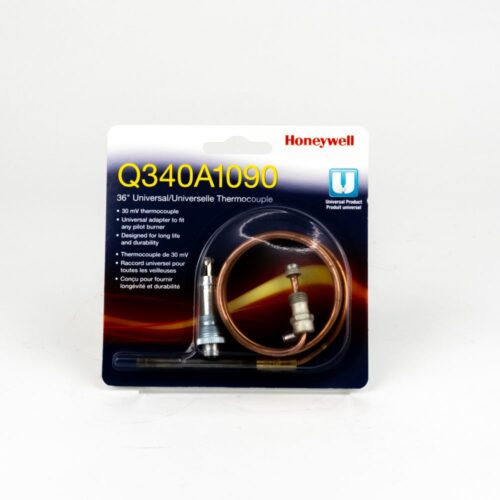

Honeywell International Q340A1090 Thermocouple 36 in

Product Description

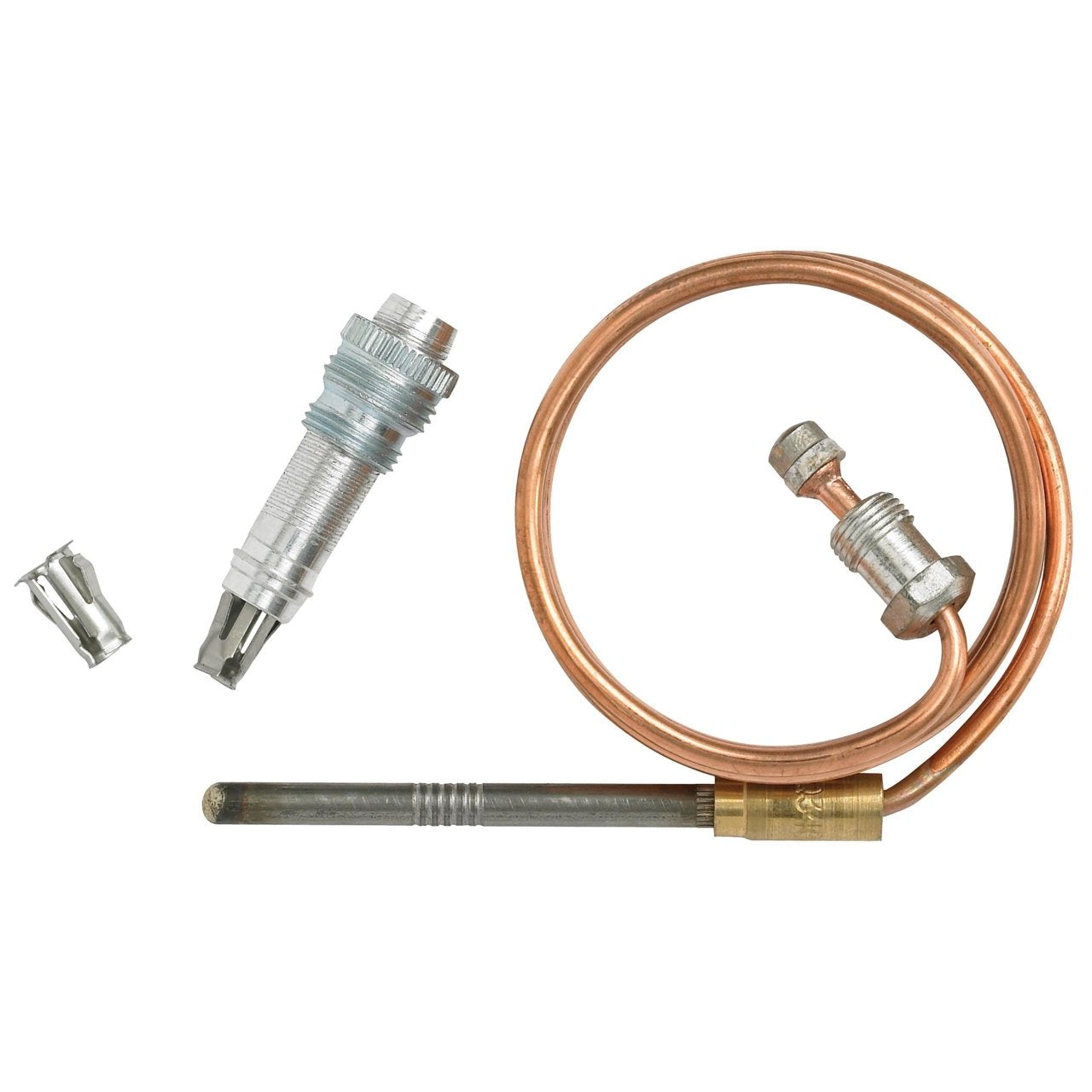

The HONEYWELL INTERNATIONAL Q340A1090 premium thermocouple generates 30 mV to sense the pilot flame on gas-fired heating systems. It includes a push-in clip, split nut, or adapter assembly for easy installation. This thermocouple has a male nut connector for Pilotstat safety control power units and is available in a 36 inch lead length.

• Long-Lasting Service
• Generates 30 mV to sense the pilot flame
• Easy installation

Product Highlights

The Q340A1090 thermocouple is compatible with gas-fired systems and works with Q303, Q308, Q314, Q324, and Q327 pilot burners with an adapter.

Product Information

Standard Information

• Brand: HONEYWELL INTERNATIONAL
• Manufacturer Part Number: Q340A1090

Technical Specifications

• Application: 30 mV Thermocouple for Standing Pilot Applications
• Compatible With: Gas-fired Systems
• Universal: Yes
• For Use With: Q303 Pilot Burners (with adapter), Q308 Pilot Burners (with adapter), Q314 Pilot Burners (with adapter), Q324 Pilot Burners (with adapter), Q327 Pilot Burners (with adapter)
• Includes: Push-in Clip, Split Nut, Adapter Assembly
• Lead Wire Length: 36 in, 914 mm
• Cold Junction Temperature Rating (Max): 780 °F, 416 °C
• Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
• Connection Type: 11/32 32 Male Connector Nut
• Open Circuit Output (Max): 26 to 32 mV
• Open Circuit Output (Min): 18 mV
• Operating Voltage: 30 mV
