Honeywell International L8148E1265 Immersion-Type Controller 120V

Product Description

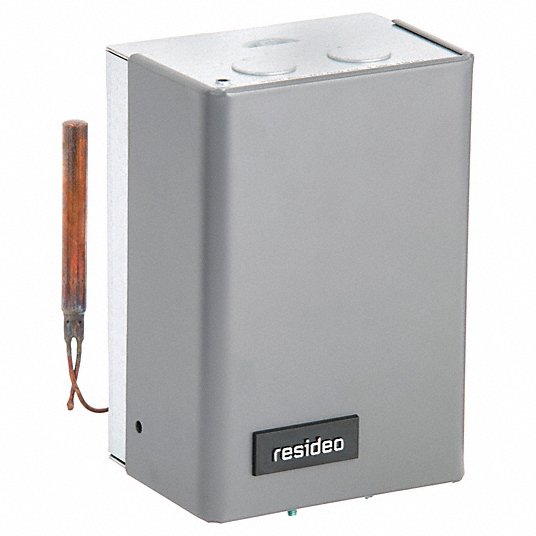

The HONEYWELL INTERNATIONAL L8148E1265 is an immersion-type controller that combines high limit protection with switching relay control of burner and circulator motors. The high limit opens burner circuit only. It includes a transformer and accessory terminals for adding a remote low limit controller. The case is available for horizontal or vertical mounting.

• High limit opens burner circuit only
• Include transformer and accessory terminals for adding a remote low limit controller
• Case available for horizontal or vertical mounting

Product Highlights

This immersion-type controller provides high limit protection and switching relay control for burner and circulator motors. It operates at 120V and is designed for easy installation in various mounting configurations.

Product Information

Standard Information

• Brand: HONEYWELL INTERNATIONAL
• Manufacturer Part Number: L8148E1265
• Country of Origin: USA

Technical Specifications

• Brand: Honeywell
• Model Name: Honeywell #L8148E1265, AQUASTAT RELAY W/40VA TRANS & MOLEX PLUG FOR USE W/VENT DAMPER; 180-240F" or "HWL8148E1265
• Controller Type: Remote Control
• Special Feature: Easy to Install
• Specific Uses For Product: Boiler
• Temperature Control Type: automatic
• Connectivity Technology: Wired
• Power Source: Internal
• Voltage: 120 Volts
• Display Type: manual
• Control Type: Remote Control
• Control Method: Remote
• Mounting Type: flexible mounting
• Backlight: No
• Wattage: 40
• Shape: Rectangular
• Product Style: Protection
• Material Type: Copper
• Included Components: Immersion-type Controller
• Model Number: L8148E1265
• Item Type Name: Honeywell L8148E1265 Immersion-type Controller
• Amperage Rating: 0.8 A at 24 VAC, 0.25 A at 24 VDC Low Voltage, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor
• Connection Type: Quick Connect, Screw
• Contact Configuration: SPST
• Frequency Rating: 60 Hz
• Pressure Rating: 255 psi Immersion Well Operating
• Temperature Rating: 150 deg F
• Type: Relay Board
• MPN: L8148E1265
• Product Type: Immersion Controller
• Application: High Limit
• Control Temperature Range: 180 °F to 240 °F
• Differential Temperature: 15°F Fixed
• Mounting Orientation: Vertical
• Number of Switches: 6
• Full Load Current @ 120V AC: 7.4 A
• Full Load Current @ 240V AC: 3.7 A
• Locked Rotor Current @ 240V: 22.2 A
• Locked Rotor Current @ 120V: 44.4 A
• Auto/Manual Switch Included: Yes
• Burner Circuit Voltage Type: Line Voltage; Low Voltage
• Capillary Length: 4.5 in
• Insulation Depth: 1.5 in; 3 in
• Overall Height: 6.125 in
• Overall Width: 4.375 in
• Overall Depth: 3.125 in
• Includes: Heat-Conductive Compound; Molex Plug
• Standards: LR95329-1; MBPR2; MP466; UL Listed
• Reset Type: Automatic Reset
• Country of Origin: USA (subject to change)
