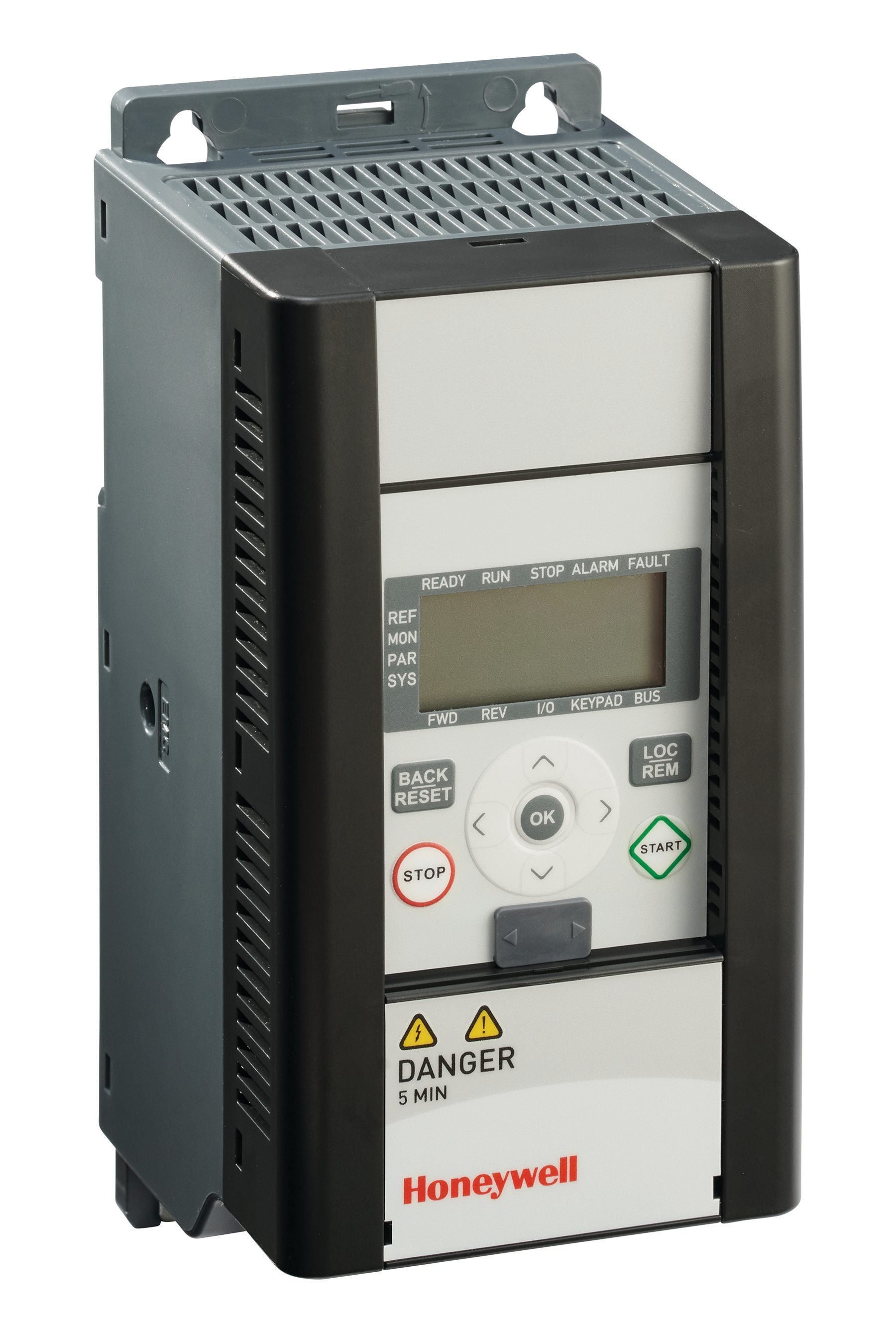

Honeywell International hvfd2d3c0020e2 Smart Vfd HVAC2 Variable Frequency Drive 2 Hp 380 480V 3 Phase EMC2 Filter

Product Description

The HONEYWELL INTERNATIONAL hvfd2d3c0020e2 is a Smart VFD HVAC2 Variable Frequency Drive built for commercial and industrial HVAC applications. This unit operates at 380 to 480 volts, handles 2 horsepower loads, and runs on a 3-phase power supply. It includes an integrated EMC2 filter, which helps reduce electromagnetic interference in sensitive electrical environments. The drive controls motor speed by varying output frequency from 0 Hz up to 320 Hz, giving HVAC technicians precise control over fans, pumps, air handlers, and other motor-driven equipment. This level of control directly reduces energy consumption, which is one of the primary reasons contractors and building engineers specify variable frequency drives in both new construction and retrofit projects. The hvfd2d3c0020e2 is especially well suited for retrofit work. Its compact footprint makes installation easier in tight mechanical rooms and existing equipment cabinets where space is limited. The unit shares the same keypad interface used on the SmartVFD HVAC, so technicians already familiar with that platform can commission this drive quickly without a steep learning curve. The intuitive navigation reduces setup time on the job. An Automatic Restart feature adds reliability by allowing the drive to recover from a fault condition without requiring manual intervention, which helps reduce service calls after installation. The drive operates across a temperature range of 14 degrees Fahrenheit to 122 degrees Fahrenheit, making it suitable for a range of indoor mechanical environments. At 4.3 amps, it delivers efficient power handling for 2 HP motor loads. HVAC technicians, electrical contractors, and building automation professionals will find this drive a dependable solution for energy management upgrades, motor speed control installations, and variable load applications across commercial buildings and industrial facilities.

• Operates at 380 to 480 volts on a 3-phase power supply, rated for 2 HP motor loads at 4.3 amps
• Output frequency range of 0 Hz to 320 Hz provides precise motor speed control for fans, pumps, and air handlers
• Integrated EMC2 filter reduces electromagnetic interference, and Automatic Restart feature minimizes service calls after fault conditions

Product Highlights

The hvfd2d3c0020e2 delivers reliable variable frequency drive performance for HVAC retrofit and new construction applications, combining a compact design with easy commissioning and built-in EMC2 filtering for cleaner operation in demanding electrical environments.

Product Information

Standard Information

• Brand: HONEYWELL INTERNATIONAL
• Manufacturer Part Number: hvfd2d3c0020e2

Technical Specifications

• Voltage: 380 to 480V
• Horsepower: 2 HP
• Phase: 3 Phase
• Amperage: 4.3 A
• Frequency Range: 0 Hz to 320 Hz
• Operating Temperature Range: 14 degrees Fahrenheit to 122 degrees Fahrenheit
• Filter Type: EMC2
