Product Description

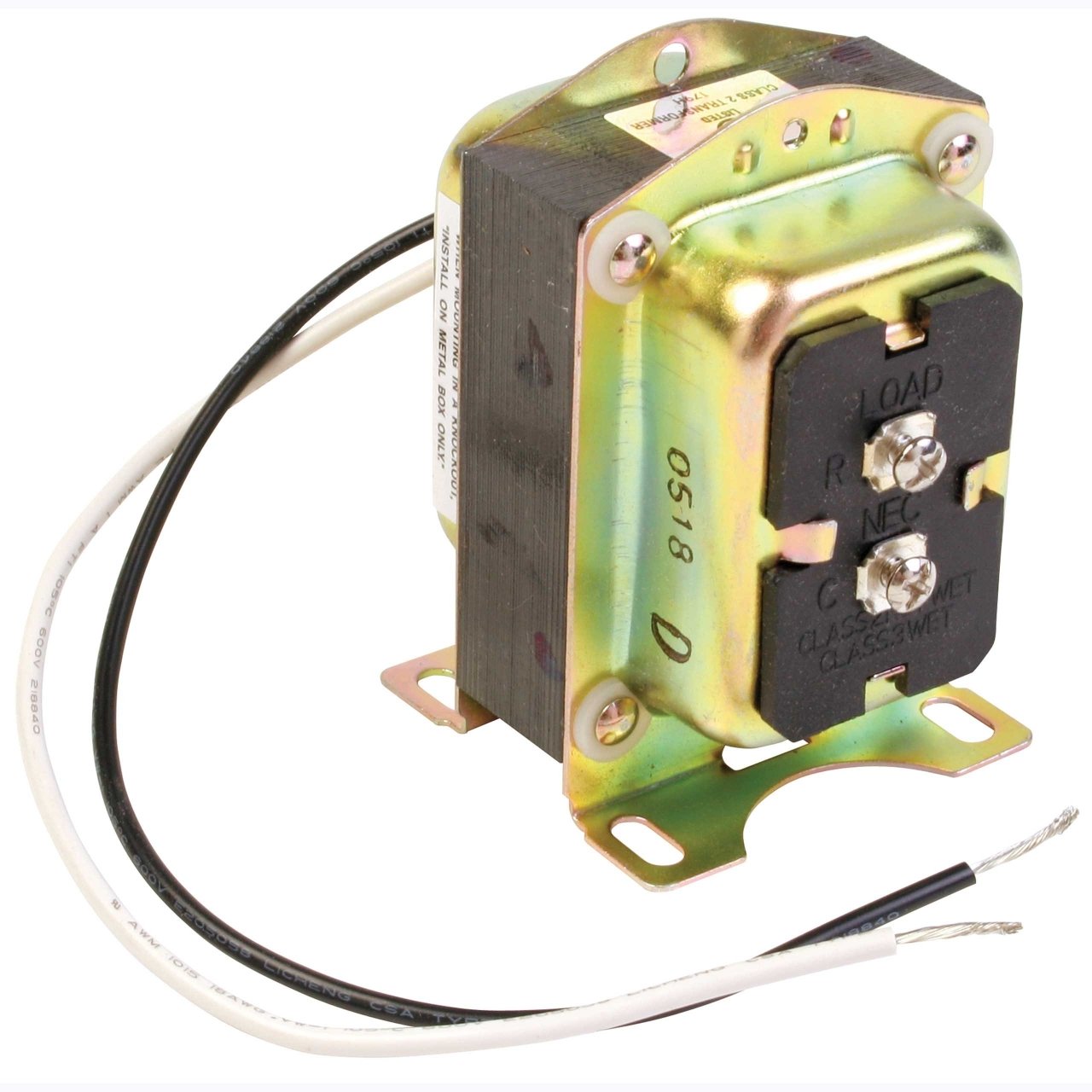

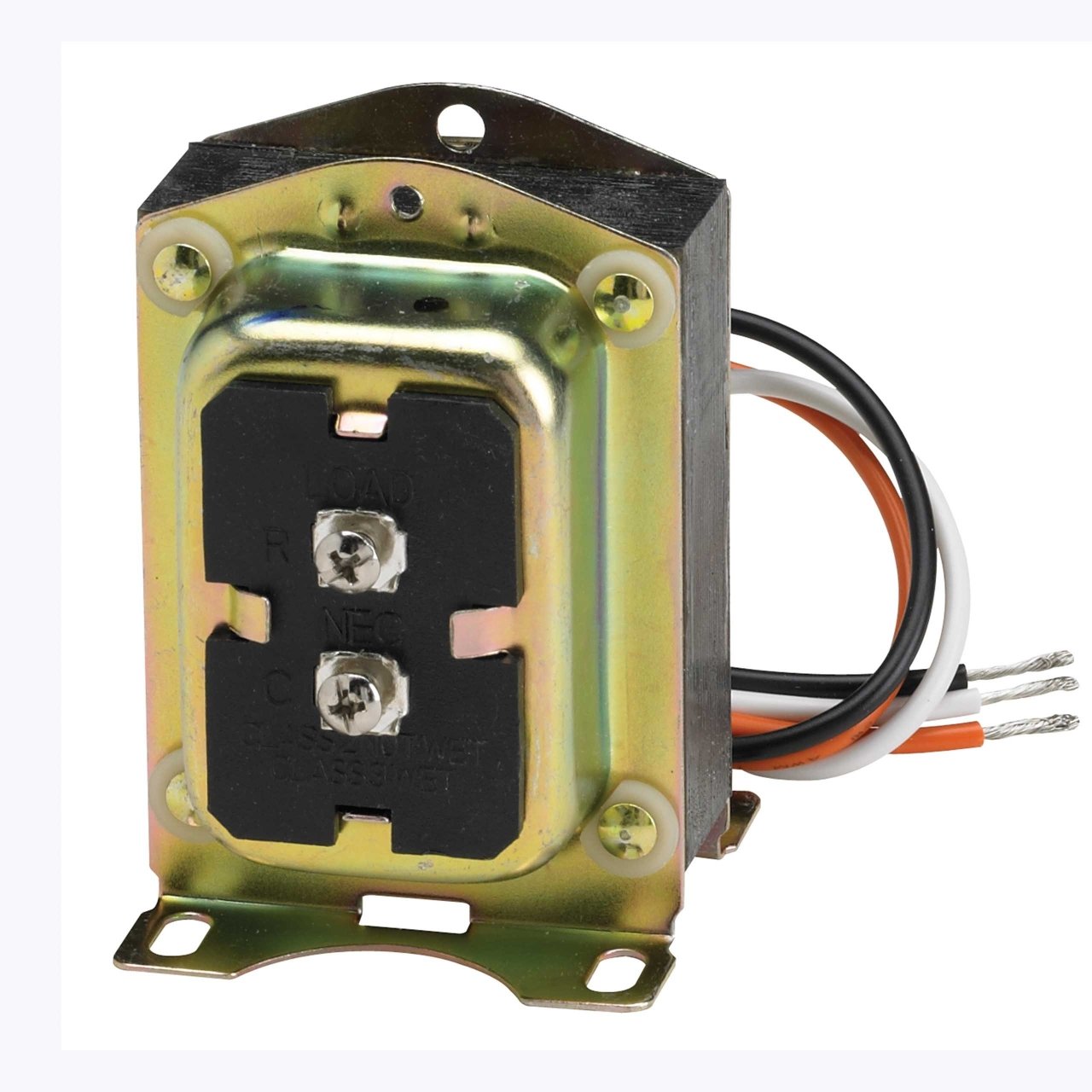

The HONEYWELL INTERNATIONAL AT140A1000 transformer provides power to 24 Vac circuits and is typically used in heating/cooling control systems. It can be used in any application that doesn't exceed the load ratings. The AT140 is rated at 40 VA and meets NEC Class 2 not wet, and conforms to UL Standard 1585. Color-coded lead wires are included for primary connections and screw terminals for secondary connections.
- Versatile Circuit Power

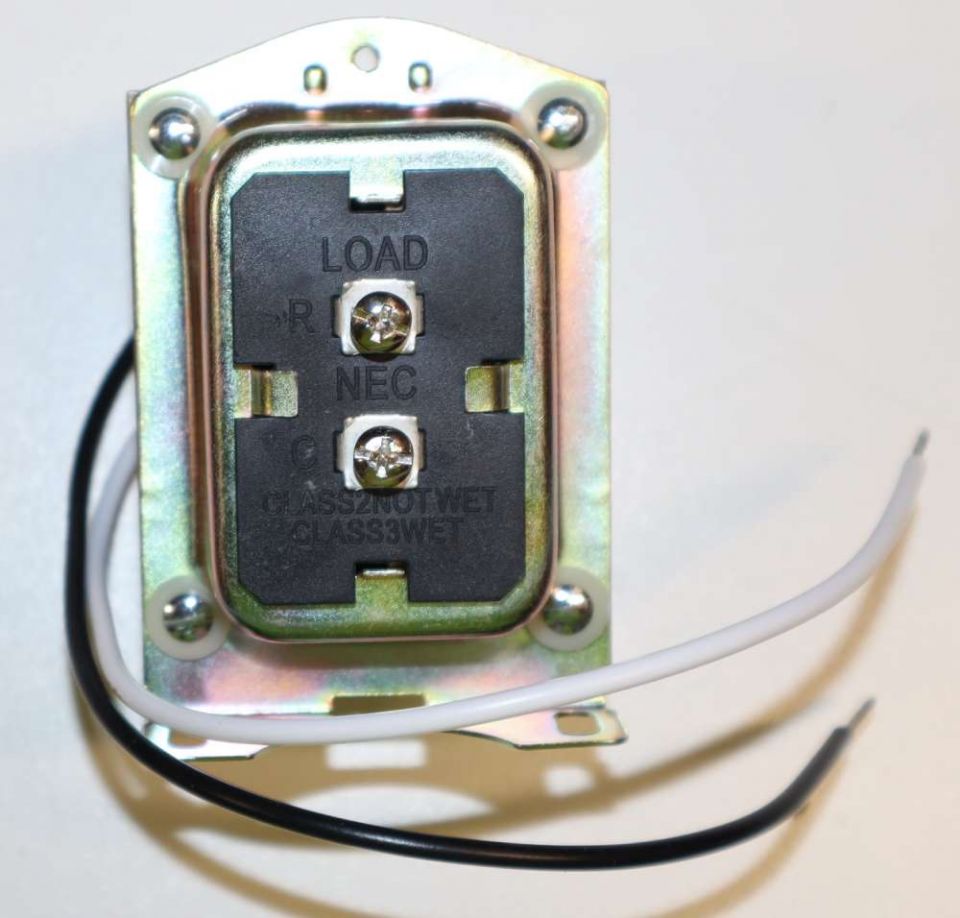

- Color-coded lead wires for primary connections and screw terminals for secondary connections
- Meets NEC Class 2 requirements and Underwriters Laboratories Standard UL 1585
Product Highlights
This transformer provides reliable power for a variety of applications, especially in HVAC systems. It is compliant with safety standards and easy to connect.
Product Information
Standard Information
-
Brand: HONEYWELL INTERNATIONAL
-
Manufacturer Part Number: AT140A1000
Technical Specifications
-
Minimum Frequency: 50 Hz
-
Application: Power To 24 VAC Circuits In Heating and Cooling Systems
-
Primary Input Voltage: 120 V ac
-
Secondary Connection Type: (2) screw terminals
-
Secondary Open Circuit Voltage: 27 V.O.C.
-
VA Rating: 40 VA
-
Frequency: 60 Hz
-
Approvals and Standards: UL Listed: A,C,F models. File # E14881, CSA Certified: A & B models
-

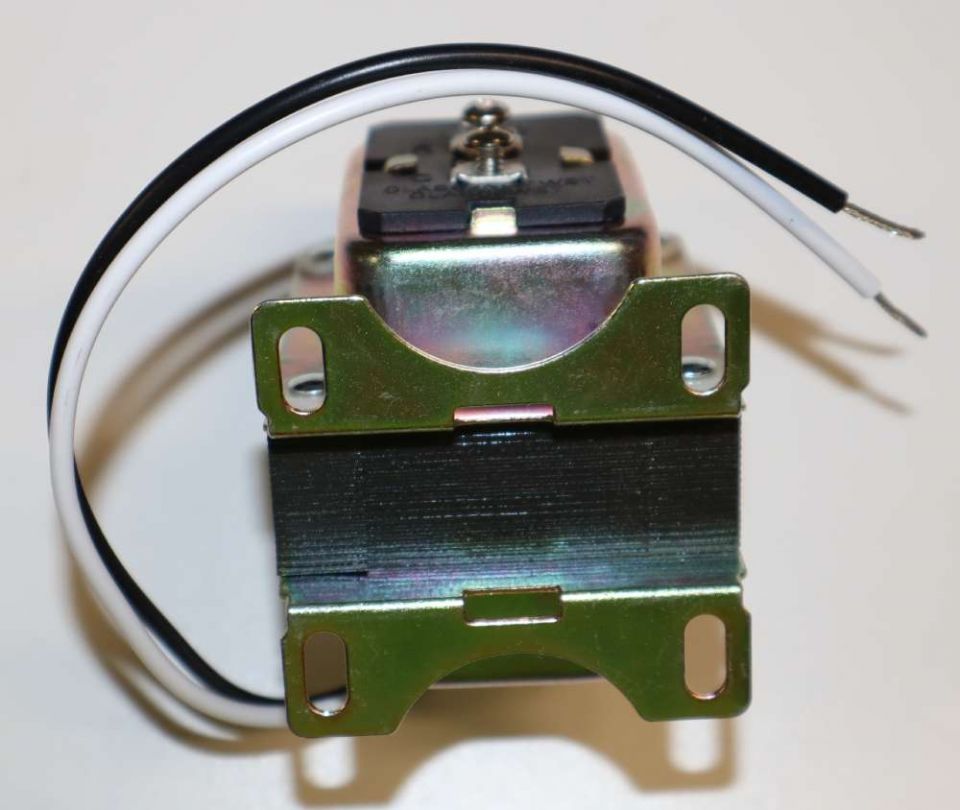

Includes: Clamp, Mounting Plate, Mounting Feet
-
Ambient Operating Temperature (Max): 105 °F, 41 °C
-
Ambient Operating Temperature (Min): -20 °F, -29 °C
-
Product Height: 3.19 in
-
Product Length: 2.38 in
-
Product Width: 3.13 in
-
Brand: Resideo
-
Manufacturer: Resideo Honeywell
-
Product Type: Transformer
-
Connection Type: Lead Wire, Screw Terminal
-
Frequency Rating: 60 Hz
-
Mounting Type: Universal
-
Primary Voltage: 120 VAC
-
Secondary Voltage: 27 VAC
-
Temperature Rating: -20 to 105 deg F
