Resideo VWS01Y-3/4 L5 Actuator with 3/4 in Ball Valve 100-240 V (3/4 in)

Brand: RESIDEO
SKU: VWS01Y-3/4
Availability: In Stock

Ships same day if ordered by 12 pm
$420.46
$420.46
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

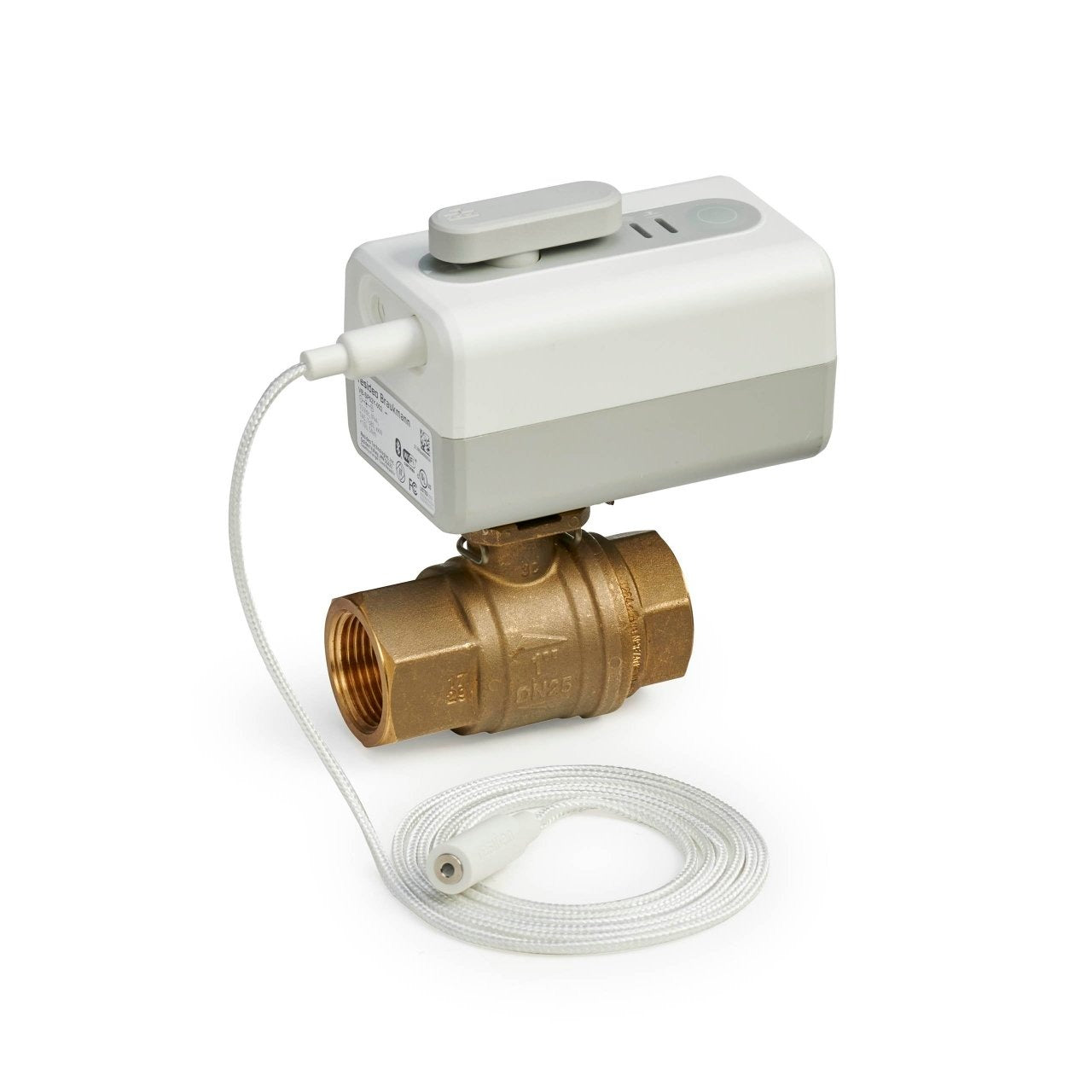

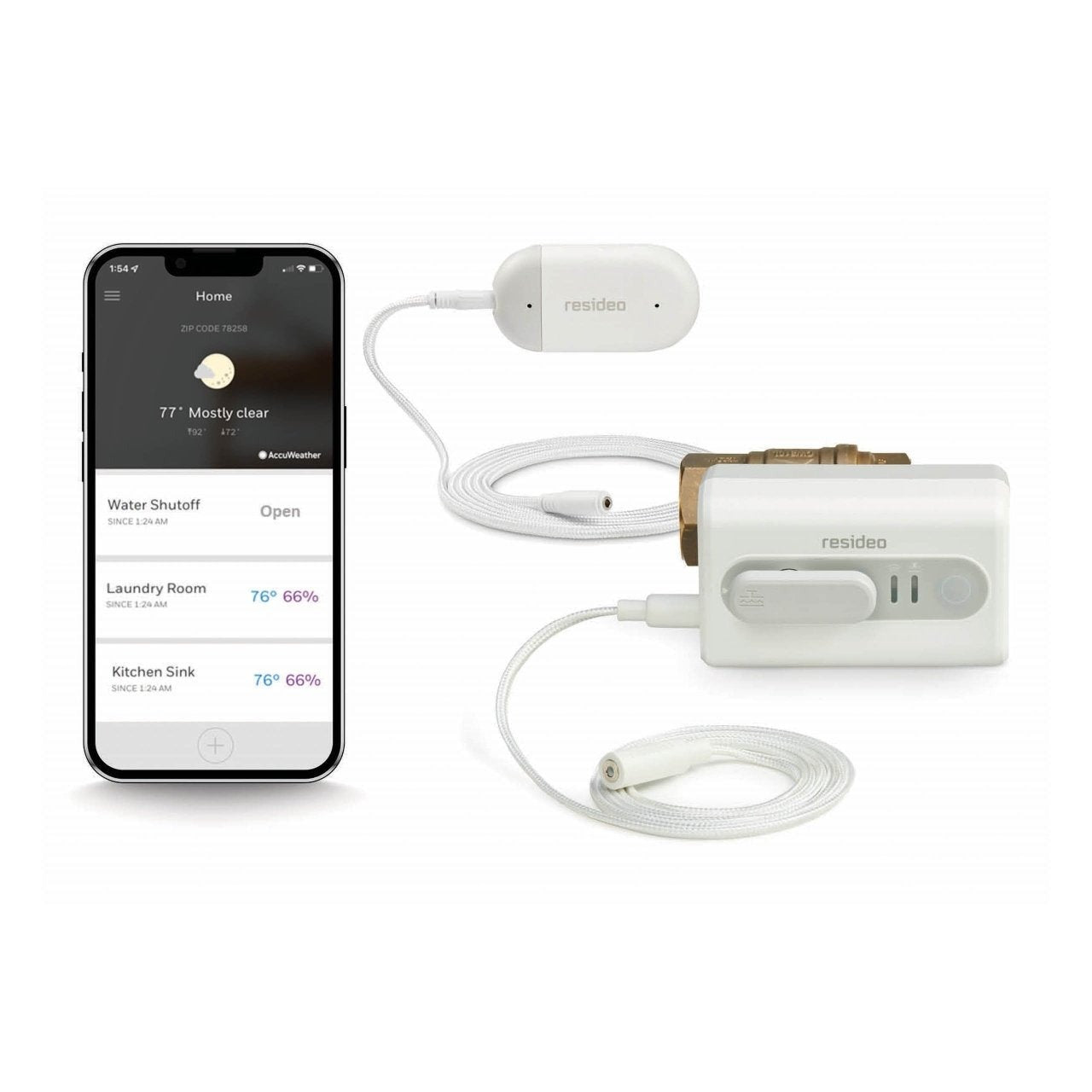

The Resideo VWS01Y-3/4 is an L5 actuator assembly integrated with a 3/4 in ball valve and a leak-stop feature. The unit supports 3/4 in NPT connection, 100–240 V input, and indoor IPX4 protection; when paired with Resideo leak detectors (included in some kits) it enables automatic shutoff and remote monitoring via WiFi. Typical applications include main water line shutoff for residential leak detection and freeze protection.

  • Integrated L5 actuator and lead-free 3/4 in ball valve with leak-stop capability and manual override
  • Wide input voltage 100–240 V with 10 ft power cable; supports WiFi 2.4 GHz (802.11 b/g/n) and Bluetooth 4.1
  • Indoor IPX4 protection, rated torque 44.25 in-lbs (5 Nm), fluid temperature range 36°F to 149°F (2°C to 65°C)

Product Highlights

Integrated actuator and lead-free 3/4 in NPT ball valve with leak-stop and WiFi-enabled shutoff

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: VWS01Y-3/4
Technical Specifications
Brand
Resideo
MPN
VWS01Y-3/4
Product Name
L5 Actuator with 3/4 in Ball Valve (Leak Stop)
Application
Water leak detection, water shut off valve
Includes

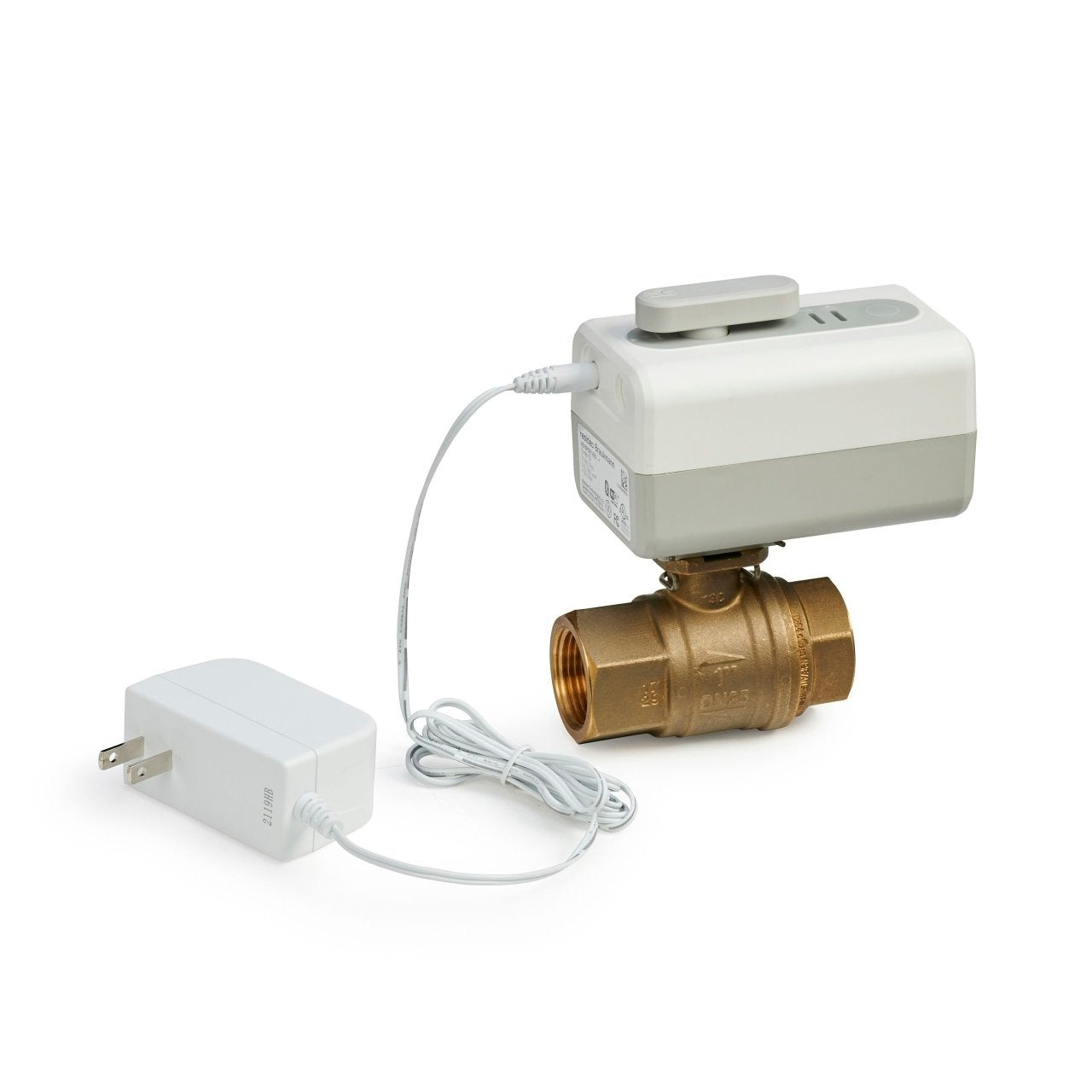

L5 actuator; lead-free 3/4 in ball valve; power supply adapter; actuator-to-ball-valve metal clip; water leak detector cable; separate water leak detector (L1) and cable (varies by kit)
Connection Type
NPT (threaded)
Pipe Size
3/4 in (DN20)
Input Voltage
100 to 240 V
Frequency
50 Hz; 60 Hz
Wireless Connectivity
WiFi 2.4 GHz (802.11 b/g/n); Bluetooth 4.1
Valve Type
Ball valve
Lead Free
Yes
Controlled Fluid
Potable water
Protection Class / Enclosure Rating
IPX4 (Indoor), UL Type 2
Rated Torque
44.25 in-lbs (5 Nm)
Breakaway Torque
57.53 in-lbs (6.5 Nm)
Manual Override
Yes
Mounting
Can be installed in any orientation; install on main water line after main shutoff and pressure reducing valve if applicable
Dimensions
5.67 in H x 4.69 in L x 2.67 in W (144 mm x 119 mm x 68 mm)
Power Cable / Electrical Connections
10 ft cable (power supply adapter)
Ambient Operating Temperature
32°F (0°C) to 113°F (45°C)
Fluid / Media Temperature
36°F (2°C) to 149°F (65°C)
Pressure Range
Pressure resistance min. PN10
Certifications
CE EMC 2014/30/EU; CE RED 2014/53/EU; EN 60730-1; EN 60730-2-14; UKCA; CAN/CSA C22.2; UL 60730-1; UL 60730-2-14; FCC part 15; RoHS; WEEE; REACH; Proposition 65; RSS-247
