Honeywell HZ432K/U Truezone Panel Kit

Product Description

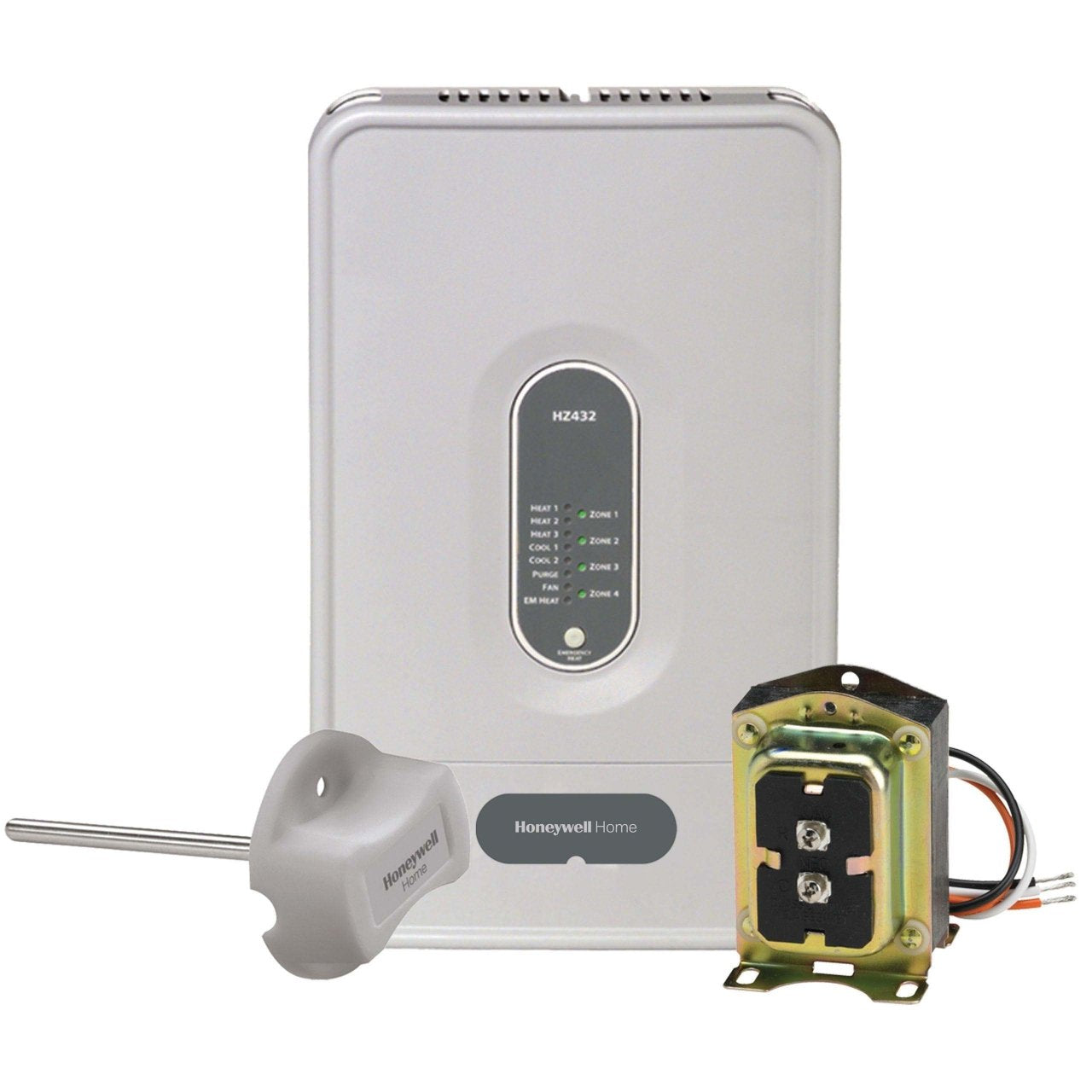

The HONEYWELL HZ432K/U Truezone Panel Kit is designed for zoning applications, supporting up to 3 heat and 2 cool stages across four zones, expandable for larger systems. It includes the HZ432 zone control panel, AT140 transformer, and C7735A discharge air temperature sensor.

• Intuitive installer setup with digital display using real language for configuration.
• Standard checkout procedure ensures correct operation.
• Variable-speed fan control lowers fan speed when one zone calls for cooling.

Product Highlights

This kit provides comprehensive control for efficient HVAC zoning, ensuring optimal comfort and energy savings.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: HZ432K/U
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL
• Part #: HZ432K/U
• Item Number: HZ432K/U
• Vendor PN: HZ432K/U
• Vendor / CAT: Honeywell
• Includes: HZ432 Panel, 40 VA Transformer, Discharge Air Temperature Sensor (DATS)
• Item Name: Panel
• Sub Brand: TrueZone
• Temperature Rating: -40 to 165 deg F
• VA Rating: 8.5 VA
• Voltage Rating: 18 - 30 VAC
• For Use with: Heat Pump
• Stages: 2-Cool/3-Heat
• Zones: 4
• Voltage: 24 VDC
• Type: Digital
• Applications: For 1-stage, multi-stage, conventional or heat pump heat/cool HVAC equipment up to 3-stages of heat and 2-stages of cool
• Catalog Number: Y0610
• Model/Part Number: HZ432K/U
• Series: TrueZONE
• Number of Zones: Up to 4 Zones
• Zone Control Panel Kit: Zone Control Panel Kit
• Product Voltage: 24 VAC
• Manufacturer: Honeywell
• Manufacturer #: HZ432K/U
• Suitable For Use With: Heat Pump
• Domestic / Import: Import
