Product Description

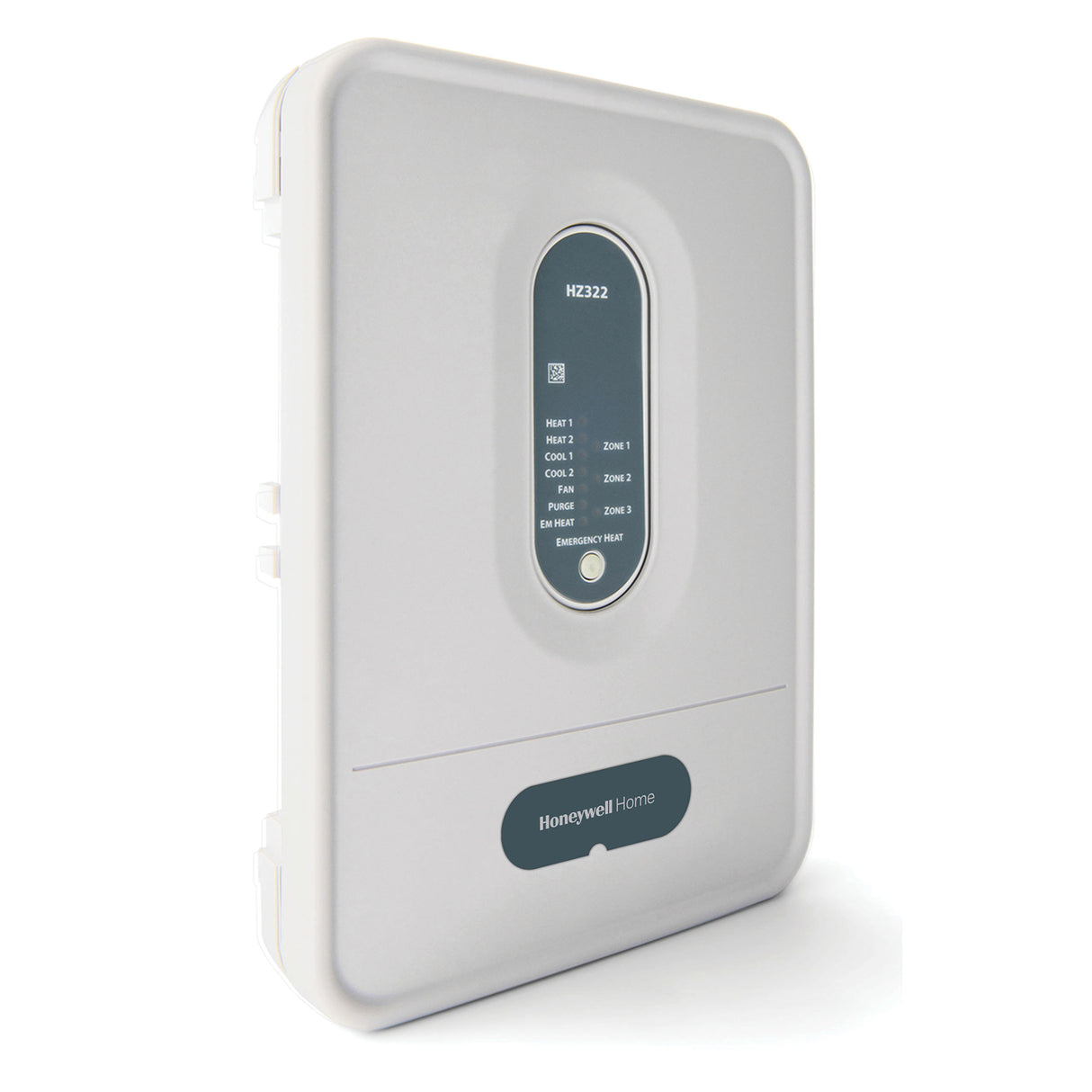

The Honeywell HZ322K/U True Zone Control Panel is designed for controlling up to 3 zones in HVAC systems. This panel offers True Zone Control for customized temperature settings in different areas. Ideal for optimizing energy consumption and enhancing comfort levels in various applications.
- True Zone Control
- Controls up to 3 Zones

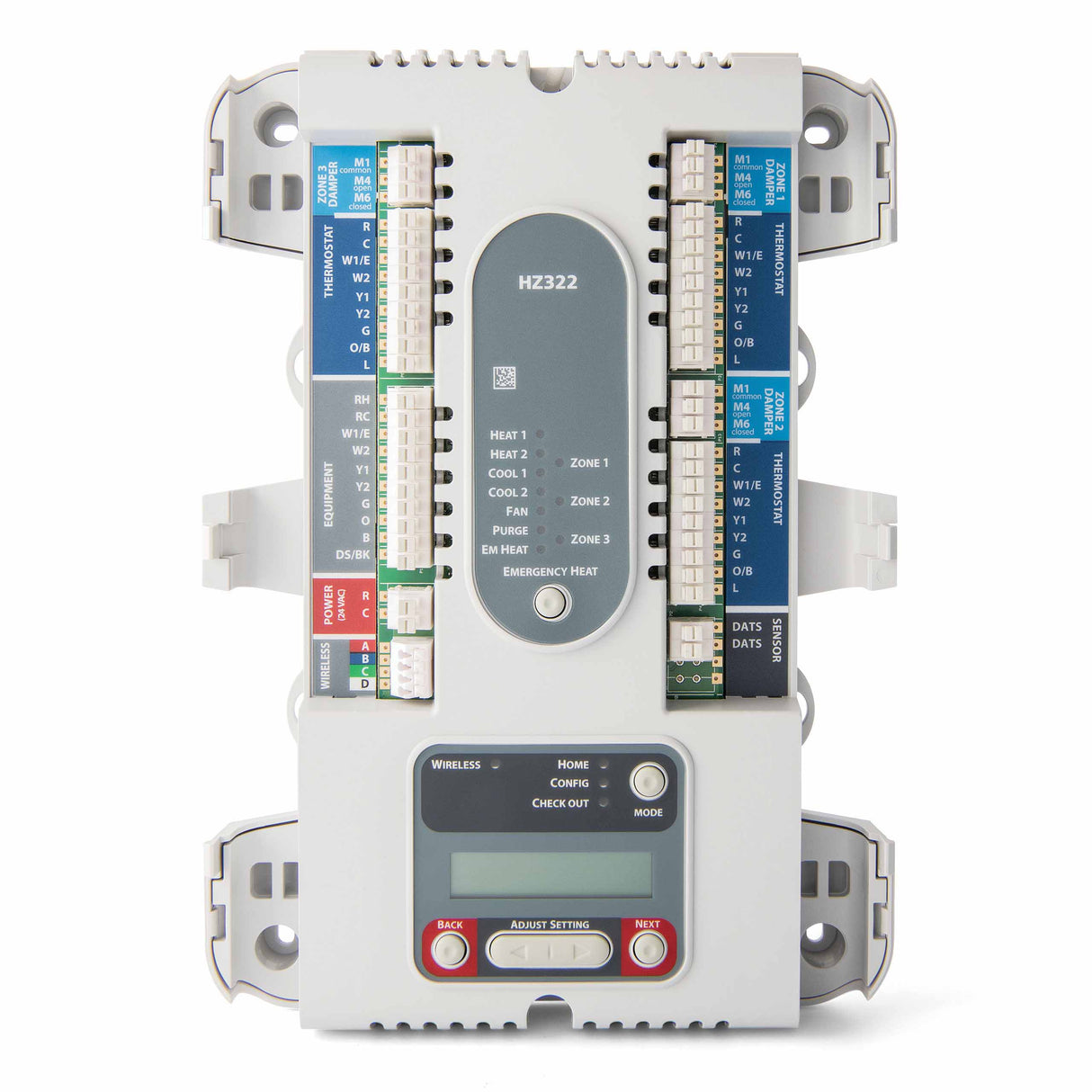

- Intuitive installer setup with digital display
Product Highlights
The Honeywell HZ322K/U True Zone Control Panel provides advanced temperature control for up to 3 zones in HVAC systems.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: HZ322K/U
-
Country of Origin: United States
Technical Specifications
-
Brand: Honeywell
-
MPN: HZ322K/U
-
Number of Zones: 3
-
Depth: 1.86 in
-
Display: Digital
-
Domestic/Import: Import
-
Stage: 2-Heat/Cool
-
Suitable For Use With: Heat Pump
-
Voltage Rating: 24 VDC
-
Auto Changeover: Yes
-
Compatible Sensor: Discharge Air Temperature Sensor
-
LED Functions: Stage of heat and damper state
-
Stages: 2 Heat/2 Cool
-
Product Height: 11.5 in
-
Product Length: 8 in
-
Product Width: 1.86 in
-
Voltage: 24 Volts
-
Material: Plastic
-
Display Type: LED
-
Operating Temperature: 50 Degrees Fahrenheit
-
Type: Zone Control Panel
-
Power Source: Corded Electric
-
Model: HZ322K/U
-
Compatible Product: Air Conditioner Split System, Central Air Conditioner, Central Furnace, Dual Fuel Split Air Conditioning System, Heat Pump Split System
-
Power Phase: 1 Phase
-
Item Number: HZ322K/U
-
VA Rating: 7.5 VA at 24 VAC
-
Frequency Rating: 50/60 Hz
-
Changeover: Auto
-
Temperature Rating: -40 to 165 deg F
-
Dimensions: 8 in W x 1.86 in D x 11.5 in H
