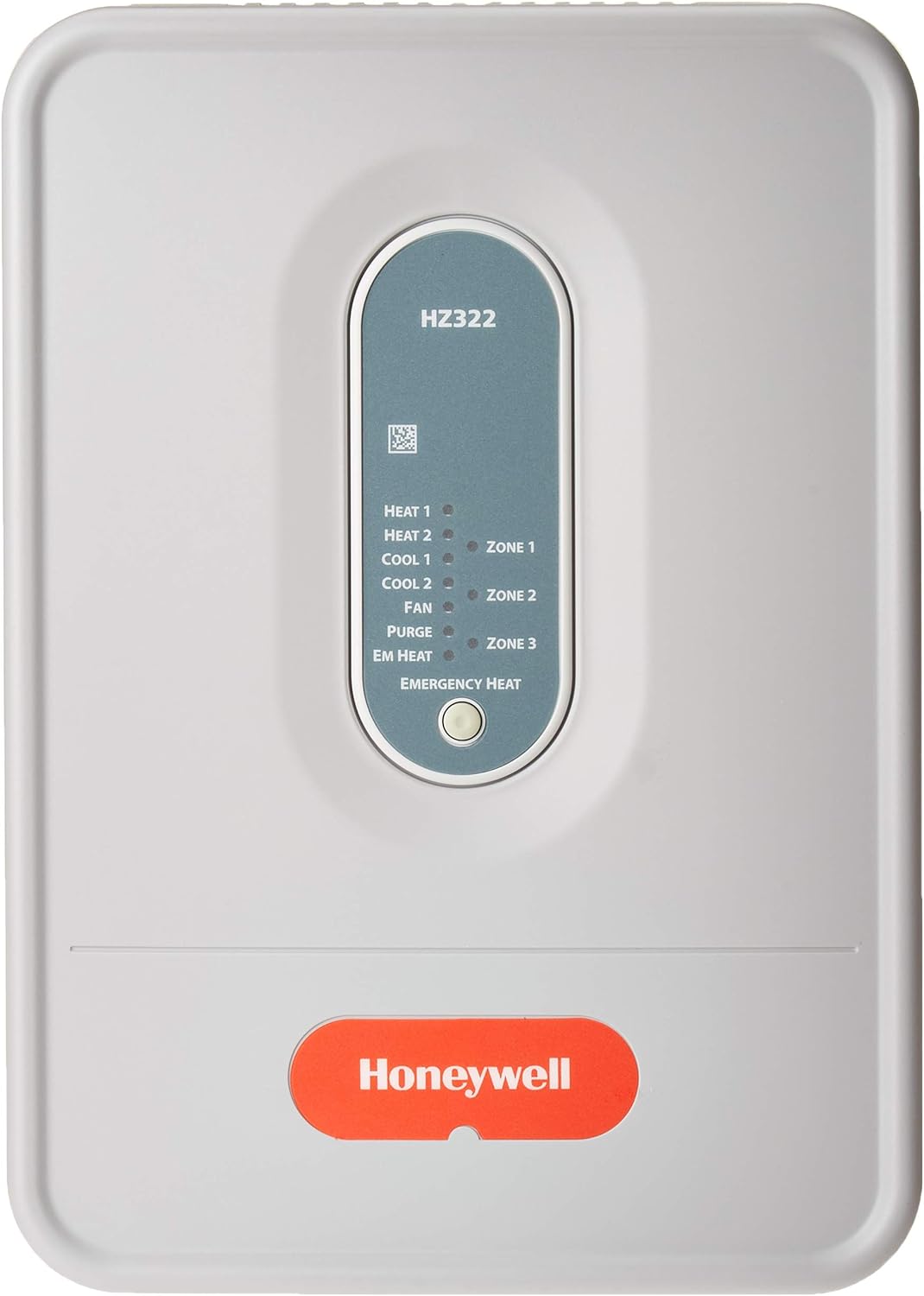

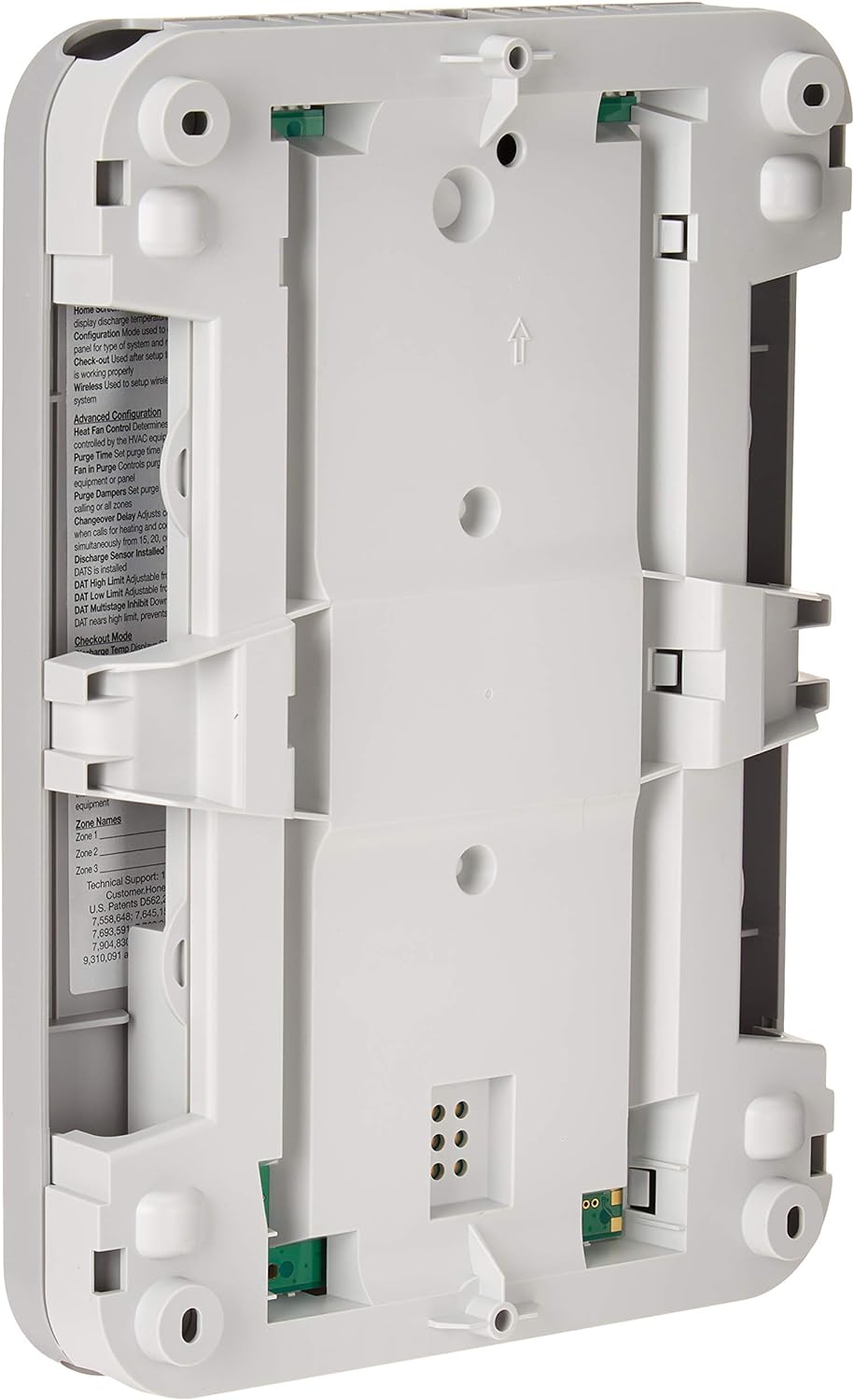

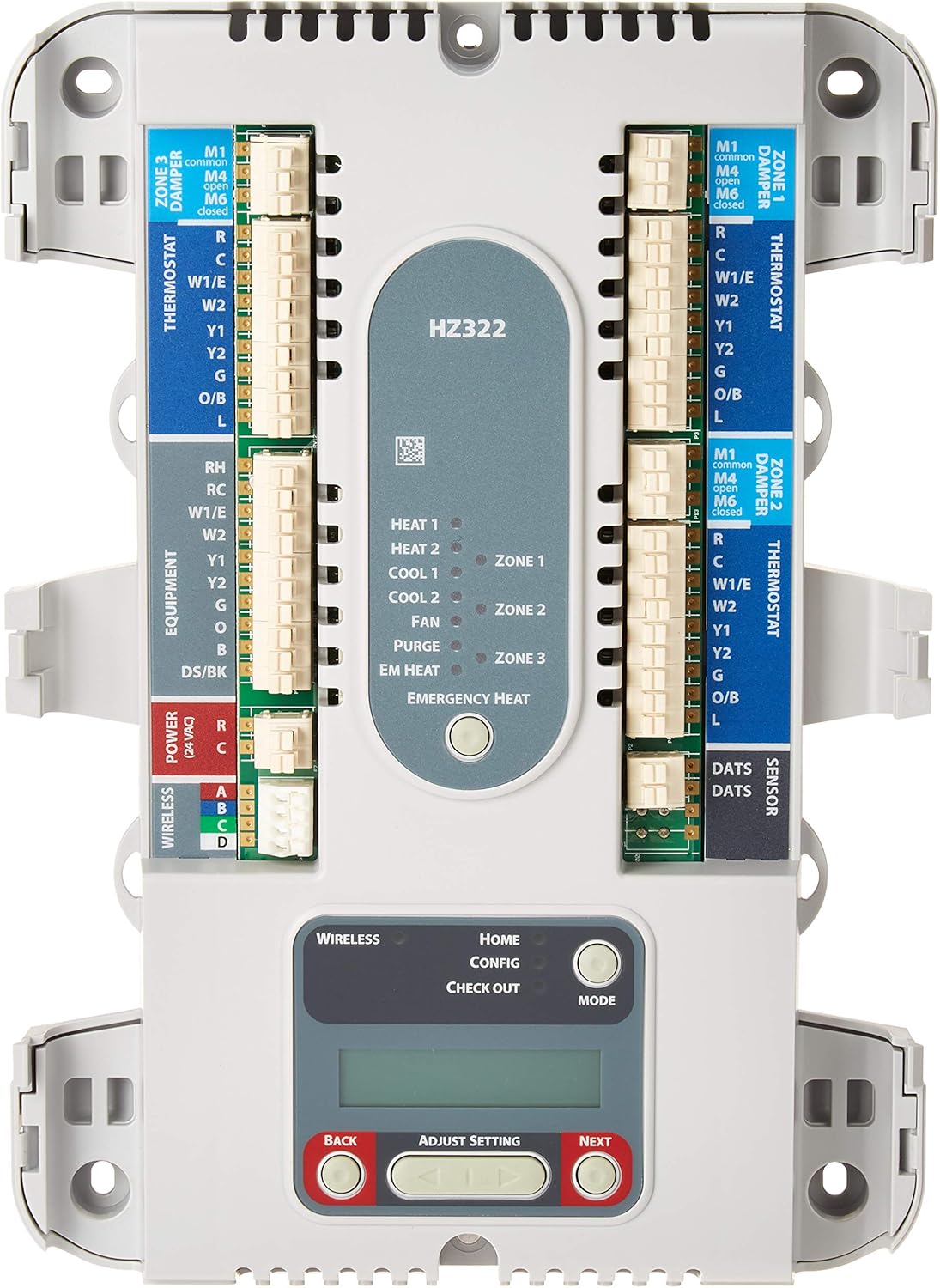

Honeywell HZ322K Truezone Kit 3 Zone 2 Heat/2 Cool 24 VAC

Product Description

Honeywell's TrueZONE HZ322K is a highly efficient, robust zone control system designed to regulate air flow in residential or commercial HVAC systems with up to three zones. This model combines ease of installation with advanced functionality, providing optimum comfort and energy efficiency.

• Supports 2 heat/2 cool conventional systems or 2 heat/1 cool heat pump systems.
• RedLINK compatible for wireless operations when used with THM4000R1000 wireless adapter.

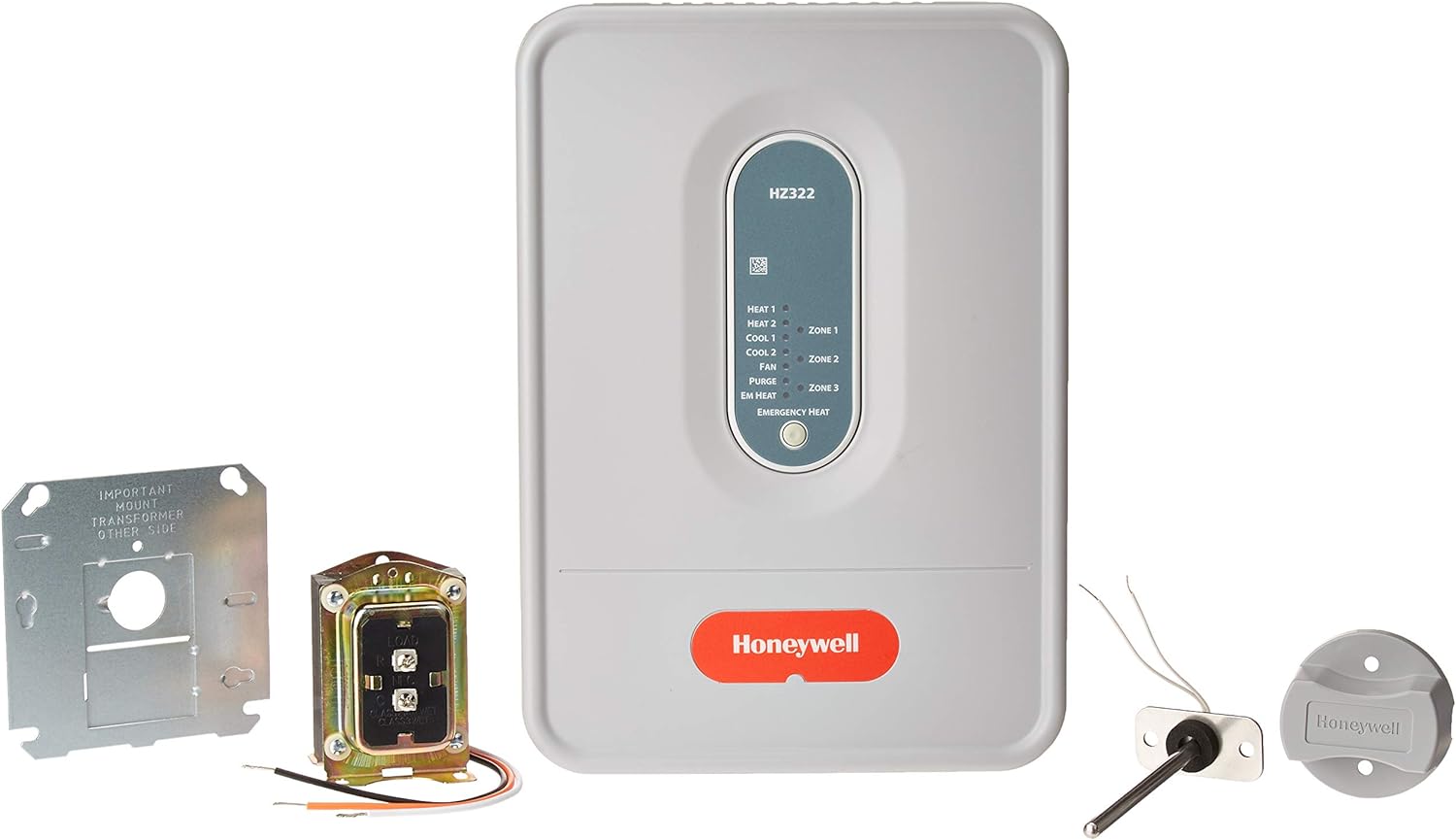

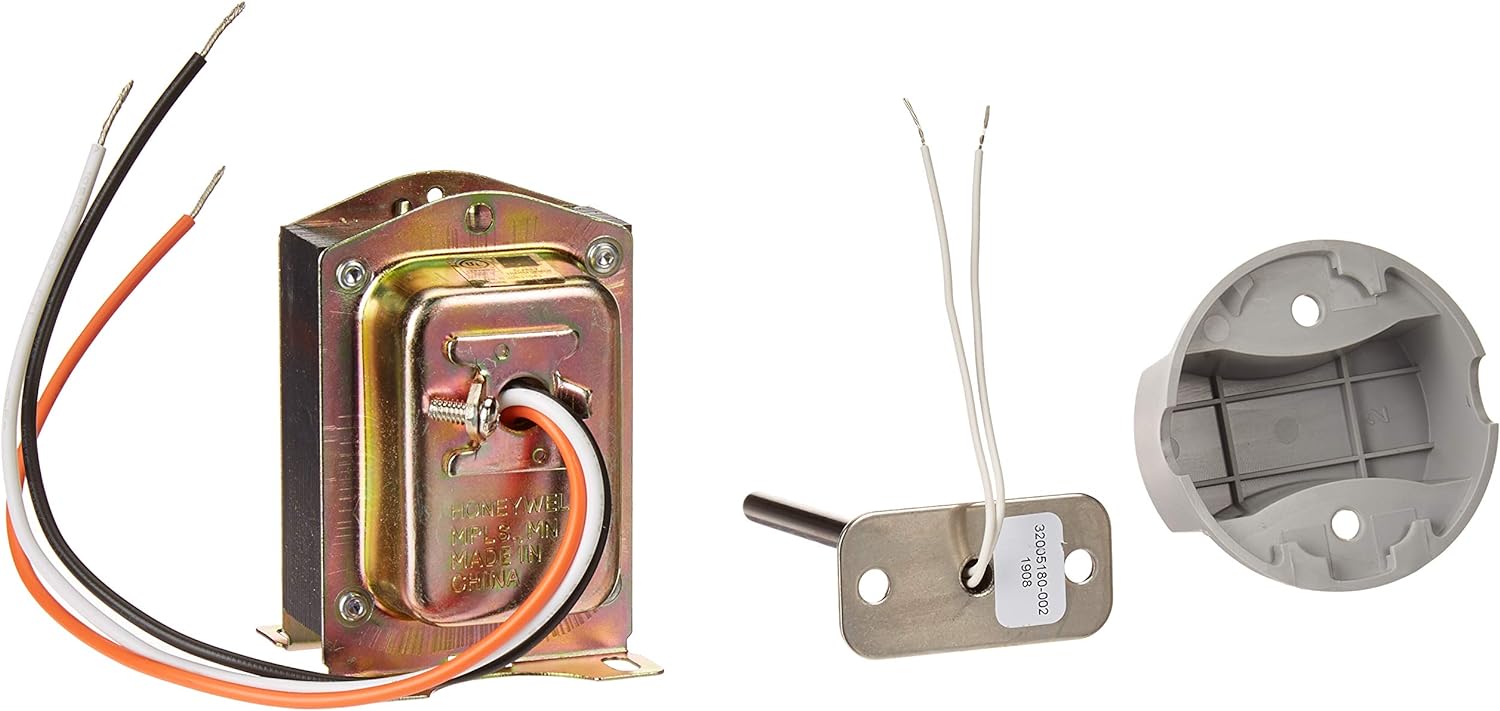

• Includes HZ322 panel, AT140 transformer, and C7735A discharge air temperature sensor.

Product Highlights

The HZ322K offers straightforward programming via a clear, digital display and easy push-button operation. Its compact footprint and clean, professional construction are ideal for installation in tight spaces.

Product Information

Standard Information

• Brand: Honeywell
• MPN: HZ322K
• Type: Zone Control System
• Number of Zones: Up to 3
• Compatibility: Conventional and heat pump systems

Technical Specifications

• Voltage: 24 V
• Amperage: 6.25 A
• Electrical Connection: Push button terminals
• Operational Range: -20 to 150 degrees Fahrenheit
• Control Interface: Push button with LED feedback
• Dimensions: 14.4 x 9 x 7.7 inches
• Wireless: Yes, RedLINK enabled
• Weight: 3 pounds
