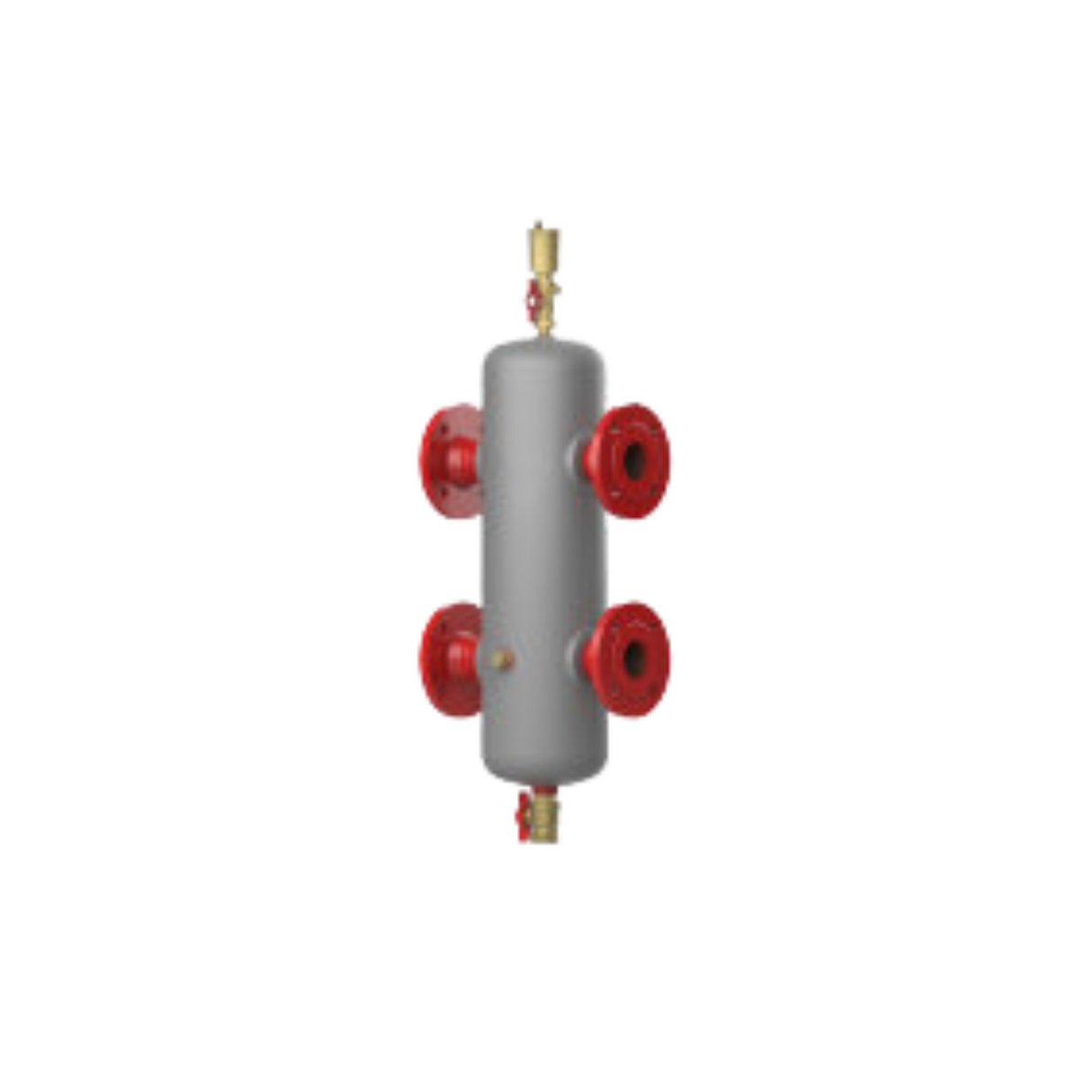

Honeywell HYDROSEP-105-F 2 Flanged Hydraulic Separator

Product Description

The Honeywell HYDROSEP-105-F is a two-inch flanged hydraulic separator. This unit effectively manages flow between connected hydraulic circuits within boiler systems. It separates air and contaminants, including metal debris with an integrated magnet, from hydronic configurations. Collected debris is easily removed via a bottom discharge valve, and air can be vented through an upper air valve. This device is essential for keeping boilers and heat emitters clean, which enhances heat transfer efficiency.

• Designed for easy integration with existing systems
• Includes insulation for improved performance
• Compatible with water and glycol-based fluids (up to fifty percent glycol concentration)

Product Highlights

This hydraulic separator is critical for maintaining system integrity in hydronic heating applications. It provides smooth separation of air and dirt, ensuring optimal operation.

Product Information

Standard Information

• Manufacturer: Honeywell
• Manufacturer Part Number: HYDROSEP-105-F

Technical Specifications

• Product Type: Hydraulic Separator
• Size: 2 inches
• Connection Type: Flanged x Flanged
• Maximum Safe Operating Pressure: 145 psi (10 bar)
• Maximum Flow Rate: 46.23 gpm
• Fluid Temperature Range: 32°F to 266°F (0°C to 130°C)
• Separator Connections: ASME 150 lb flange
• Discharge Valve Connection: 1 inch
• Body Material: FE360 varnished steel
• Dimensions: 37 x 14 x 8 inches
• Application: Suitable for supply water, heating, and air conditioning; operates with hot/cold water and glycol mixtures up to 50%
