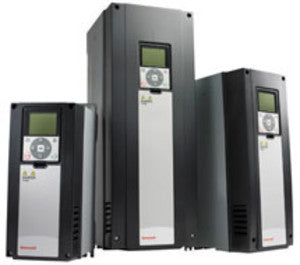

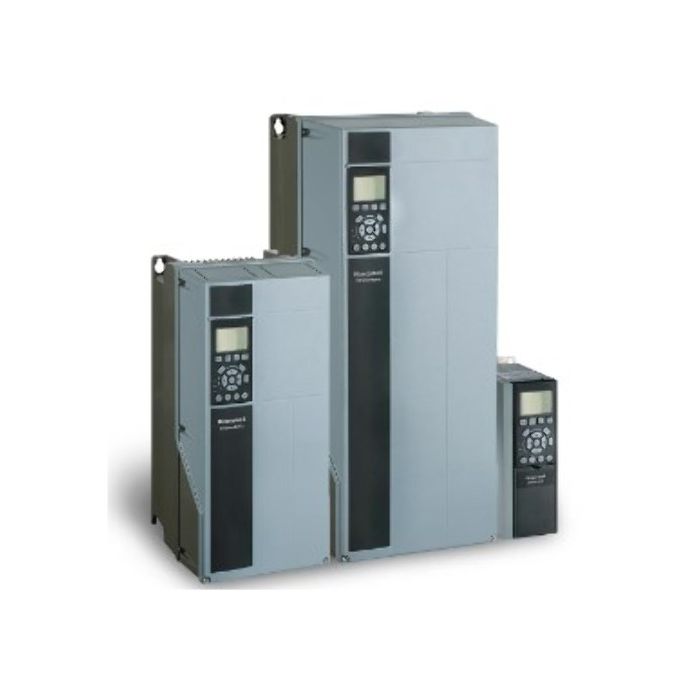

Honeywell HVFD3D3C2000G100C Variable Frequency Drive

Product Description

The Honeywell HVFD3D3C2000G100C is a variable frequency drive designed to control the speed of electric motors. This unit effectively adjusts the frequency and voltage supplied, making it suitable for both constant-torque and variable-torque applications. The drive supports common communication protocols such as BACnet, Modbus, and JCI N2 through Ethernet and RS485 connections, simplifying integration into HVAC systems. Rated for four hundred sixty VAC, this unit is optimal for motors up to two hundred horsepower.

• Rated for 460 VAC supply voltage
• Features RS485 and Ethernet communication ports
• Capable of supporting motors up to 200 HP

Product Highlights

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: HVFD3D3C2000G100C

Technical Specifications

• Phase: Three Phase
• Type: Stand Alone
• Horsepower: 200 hp
• Motor Rating: 0.75 to 250 hp
• Supply Voltage: Model specific, 3 phase, 47 to 66 Hz, 380-480 VAC or 200-240 VAC ±10%
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs (D.I.): 6 configurable D.I., 24 VDC = on, 0 VDC = off
• Analog Input: Two; 0-10V or 4-20 mA voltage, input impedance 200 kΩ, current impedance 250 Ω
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA @ 500 Ω max
• Relay Outputs: Two SPDT
• Load Max.: 8A at 24 VDC or 250 VAC, 0.4A at 125 VDC
• Load Min.: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485 (Terminals), JCI N2, MODBUS, BACnet MS/TP
• Ethernet (RJ45): BACnet/IP, Modbus/TCP
• LON (Terminals): LonWorks with optional board
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed File E190898, CE, RoHS
• Warranty: 3 years
