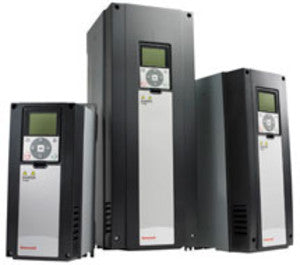

HONEYWELL HVFD3D3C1500G100C Variable Frequency Drive 150 HP

Product Description

The HONEYWELL HVFD3D3C1500G100C is a variable frequency drive (VFD) specifically designed for HVAC applications. It operates efficiently under both constant-torque and variable-torque loads. This unit supports multiple communication protocols including BACnet, Modbus, and JCI N2, facilitating easy integration into existing systems. Suitable for 460 VAC, three-phase power systems, it can manage motors rated up to 150 horsepower.

• Operates with 460 VAC three-phase systems
• Supports BACnet, Modbus, and JCI N2 protocols
• Offers adjustable acceleration and deceleration times

Product Highlights

This VFD is built for versatility in various HVAC setups, providing essential features like adjustable acceleration and deceleration, which enhance control and efficiency.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: HVFD3D3C1500G100C

Technical Specifications

• Phase: Three Phase
• Type: Stand Alone
• Horsepower: 150 HP
• Power Output: 110 kW
• Input Voltage: 460 VAC
• Motor Rating: 0.75 to 250 HP
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs: 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Analog Input: Two; 0-10 V or 4-20 mA, input impedance 200 kΩ, current impedance 250 Ω
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA @ 500 Ω max.
• Relay Outputs: Two SPDT
• Load Max.: 8A at 24 VDC or 250 VAC, 0.4A at 125 VDC
• Load Min.: 10 mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485 (Terminals), JCI N2, MODBUS, BACnet MS/TP, Ethernet (RJ45), BACnet/IP, Modbus/TCP, LON (Terminals)
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed File E190898, CE, RoHS
