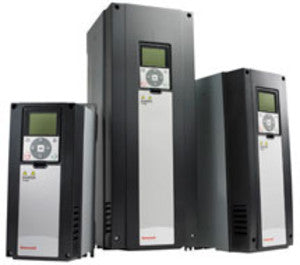

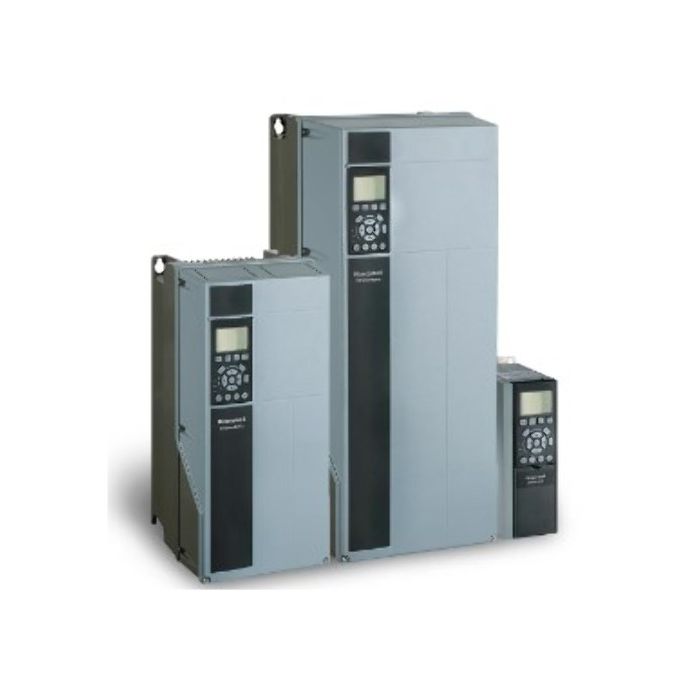

Honeywell HVFD3D3C1250G100C HVFD 3G Variable Frequency Drive, 460 VAC, 125 HP

Product Description

The Honeywell HVFD3D3C1250G100C is a variable frequency drive designed for HVAC applications. This SmartVFD unit operates at 460 VAC and delivers up to 125 horsepower. It supports both constant-torque and variable-torque loads. The drive has built-in application-specific startup wizards to simplify the setup for pumps and fans. Connectivity options include Ethernet and RS485, making it compatible with BACnet, Modbus, and JCI N2 protocols.

• Supports multiple communication protocols for efficient integration.
• Equipped with a graphical keypad for user-friendly operation.
• Adjustable acceleration and deceleration times for customized performance.

Product Highlights

The Honeywell HVFD3D3C1250G100C is ideal for professionals looking to optimize control over pumps and fans in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: HVFD3D3C1250G100C

Technical Specifications

• Horsepower: 125 hp
• Input Voltage: 460 VAC
• Enclosure Rating: NEMA 1
• Phase: Three Phase
• Type: Stand Alone
• Frequency Range: 0-320 Hz
• Adjustable Acceleration Time: 0.1 - 3000 seconds
• Adjustable Deceleration Time: 0.1 - 3000 seconds
• Digital Inputs: 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Analog Input: Two; 0-10V or 4-20 mA
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA
• Relay Outputs: Two SPDT
• Max Load: 8A at 24 VDC or 250 VAC
• Min Load: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485, JCI N2, Modbus, BACnet MS/TP, Ethernet (RJ45)
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed, CE, RoHS
• Item Weight: 123.90 lbs
