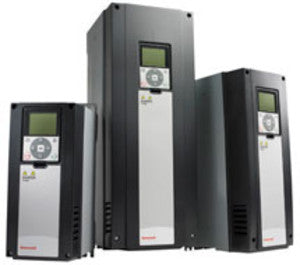

HONEYWELL HVFD3D3C0600G100C Variable Frequency Drive 60 horsepower

Product Description

The Honeywell HVFD3D3C0600G100C is a variable frequency drive tailored for HVAC applications. It operates at four hundred sixty VAC and is designed for motors rated at sixty horsepower. This VFD comes in a NEMA 1 enclosure, making it suitable for indoor conditions and providing necessary protection against dirt and solid elements.

This drive adjusts the frequency and voltage supplied to an electric motor, enabling precise control of motor speed, torque, and power efficiency.

• Supports BACnet, Modbus, and JCI N2 communication protocols.
• Application-specific startup wizards for pumps and fans streamline setup.
• Includes connections via Ethernet and RS485.

Product Highlights

Ideal for HVAC systems looking to enhance energy efficiency and motor control.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: HVFD3D3C0600G100C
• Phase: Three Phase
• Horsepower: 60 hp
• Input Voltage: 460 VAC
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs (D.I.): 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Analog Input: Two; 0-10V or 4-20 mA voltage
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA
• Relay Outputs: Two SPDT
• Load Max.: 8A at 24 VDC or 250 VAC
• Load Min.: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485, Ethernet (RJ45): BACnet/IP, Modbus/TCP
• Operating Temperature: 14°F to 104°F
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed, CE, RoHS
• Warranty: 3 years
