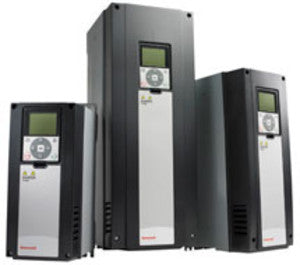

Honeywell HVFD3D3A0400G100C HVFD 3G Variable Frequency Drive

Product Description

The Honeywell HVFD3D3A0400G100C is a SmartVFD HVAC drive. It is suitable for both constant-torque and variable-torque loads. This drive includes application-specific startup wizards for pumps and fans, allowing for easy setup and use. The drive supports integration via Ethernet and RS485 connections, compatible with BACnet, Modbus, and JCI N2 protocols. It is ideal for HVAC applications that require reliable control and efficiency.

• Handles low to high horsepower pumps and fans.
• Equipped with a high-resolution graphic interface.
• Features a fire mode and real-time clock.

Product Highlights

This Honeywell drive supports energy efficiency, optimizing both operation and performance in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: HVFD3D3A0400G100C
• Type: Stand Alone
• Horsepower: 40 hp
• Input Voltage: 208 VAC, 230 VAC
• Motor Rating: 0.75 to 250 hp
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs (D.I.): 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Analog Input: Two; 0-10 V or 4-20 mA
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA
• Relay Outputs: Two SPDT
• Load Max.: 8A at 24 VDC or 250 VAC
• Load Min.: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485, Ethernet (RJ45)
• Operating Temperature: 14°F to 104°F
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed, CE, RoHS
• Warranty: 3 years
• Phase: Three Phase
