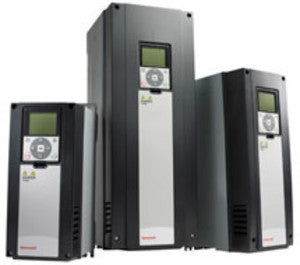

Honeywell HVFD3D3A0300G100C Variable Frequency Drive 30 HP

Product Description

The Honeywell Variable Frequency Drive, model HVFD3D3A0300G100C, is designed to manage the speed of three-phase electric motors. This device operates efficiently at a nominal voltage of two hundred eight to two hundred thirty VAC, providing a robust performance rated at thirty horsepower or twenty-two kilowatts. The drive is compatible with both constant-torque and variable-torque loads, making it versatile across various applications. It is housed within a NEMA 1 enclosure for protection against dust and accidental contact.

• Enclosure rated NEMA 1
• Supports multiple communication protocols including BACnet and Modbus
• Acceleration and deceleration time adjustable from 0.1 to 3000 seconds

Product Highlights

This VFD is ideal for HVAC applications where precision and reliability are critical. Its ability to manage motor speed enhances energy efficiency.

Product Information

Standard Information

• Brand: Honeywell
• MPN: HVFD3D3A0300G100C

Technical Specifications

• Phase: Three Phase
• Type: Stand Alone
• Horsepower: 30 hp
• Power: 22 kW
• Enclosure Rating: NEMA 1
• Input Voltage: 208 VAC, 230 VAC
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs: 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Analog Input: 0-10 V or 4-20 mA, input impedance 200 kOhm, current impedance 250 Ohm
• Digital Output: Open collector, 48V/50 mA
• Analog Output: Programmable output; 0-10 VDC or 4-20 mA @ 500 Ohm max.
• Relay Outputs: Two SPDT
• Relay Load Max.: 8A at 24 VDC or 250 VAC, 0.4A at 125 VDC
• Relay Load Min.: 10 mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485 (Terminals), JCI N2, MODBUS, BACnet MS/TP, Ethernet (RJ45), BACnet/IP, Modbus/TCP, and optional LonWorks
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed File E190898, CE, RoHS
• Warranty: 3 years
• Item Weight: 91.05 lbs
