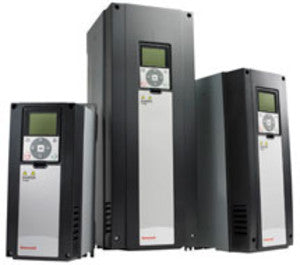

Honeywell HVFD3D3A0200G100C Variable Frequency Drive 20 HP

Product Description

The Honeywell Variable Frequency Drive, MPN HVFD3D3A0200G100C, is an essential component for HVAC systems. It is designed to handle both constant and variable torque loads. This drive operates between 208 to 230 VAC and provides a power output of 20 horsepower. The NEMA 1 rated enclosure makes it suitable for indoor use while protecting against solid objects. The VFD supports various communication protocols such as BACnet, Modbus, and JCI N2 via Ethernet and RS485 connections. Users can adjust acceleration and deceleration times for improved efficiency.

• Supports 208/230 VAC input with three-phase operation
• Equipped with Ethernet and RS485 communication ports
• Configured for NEMA 1 indoor environments

Product Highlights

This Honeywell VFD is ideal for managing HVAC applications and enhancing system performance.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: HVFD3D3A0200G100C

Technical Specifications

• Phase: Three Phase
• Type: Stand Alone
• Horsepower: 20 hp
• Input Voltage: 208 VAC, 230 VAC
• Motor Rating: 0.75 to 250 hp
• Frequency Range: 0-320 Hz
• Adjustable Acceleration Time: 0.1 - 3000 seconds
• Adjustable Deceleration Time: 0.1 - 3000 seconds
• Digital Inputs: 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Analog Input: 0-10V or 4-20 mA with input impedance 200.5 k, current impedance 250.5
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA @ 500.5 max
• Relay Outputs: Two SPDT
• Load Max.: 8A at 24 VDC or 250 VAC, 0.4A at 125 VDC
• Load Min.: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485 (Terminals), JCI N2, MODBUS, BACnet MS/TP, Ethernet (RJ45), BACnet/IP, Modbus/TCP, LonWorks with optional board
• Operating Temperature: 14 to 104 F (-10 to 40 C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed File E190898, CE, RoHS
• NEMA Rating: NEMA 1
• Item Weight: 63.93 lbs
